For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!

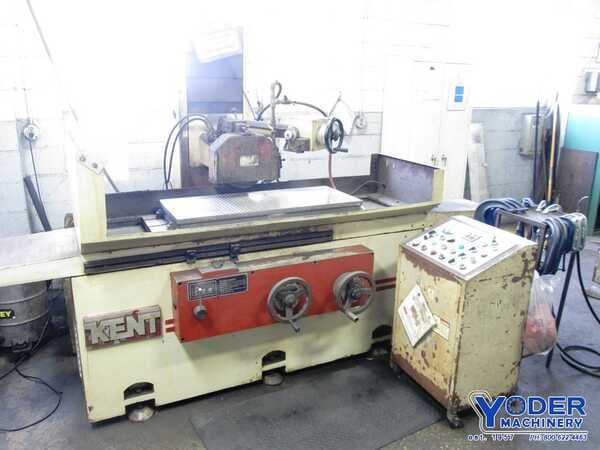

Description
SERIAL ........................... #8680857-4
MODEL ............................ #KGS-410AHD
GRINDING CAPACITY ................ 40" X 16"
SPINDLE CENTER TO TABLE (MAX.) ... 22-1/2"
LONGITUDINAL TABLE TRAVEL ........ 45"
CROSS TABLE TRAVEL ............... 17-5/8"
ELECTRO-MAGNETIC CHUCK SIZE ...... 39-1/2" X 16" X 3-1/8"
TABLE LOAD CAPACITY (W/CHUCK) .... 2200 LBS.
TABLE SPEED (VARIABLE) ........... 16 TO 82 FPM
GRINDING WHEEL SIZE .............. 14" X 1-1/2" X 5"
SPINDLE SPEED .................... 1740 RPM
POWER ELEVATION .................. YES
AUTO INCREMENTAL DOWNFEED ........ YES
AUTO CROSS FEED .................. YES
ELECTRO-MAGNETIC CHUCK W/CONTROLS. YES
WHEEL DRESSER .................... YES
LUBE SYSTEM ...................... AUTOMATIC
HORSEPOWER SPINDLE MOTOR ......... 5
HORSEPOWER HYDRAULIC MOTOR ....... 3
MODEL ............................ #KGS-410AHD
GRINDING CAPACITY ................ 40" X 16"
SPINDLE CENTER TO TABLE (MAX.) ... 22-1/2"
LONGITUDINAL TABLE TRAVEL ........ 45"
CROSS TABLE TRAVEL ............... 17-5/8"
ELECTRO-MAGNETIC CHUCK SIZE ...... 39-1/2" X 16" X 3-1/8"
TABLE LOAD CAPACITY (W/CHUCK) .... 2200 LBS.
TABLE SPEED (VARIABLE) ........... 16 TO 82 FPM
GRINDING WHEEL SIZE .............. 14" X 1-1/2" X 5"
SPINDLE SPEED .................... 1740 RPM
POWER ELEVATION .................. YES
AUTO INCREMENTAL DOWNFEED ........ YES
AUTO CROSS FEED .................. YES
ELECTRO-MAGNETIC CHUCK W/CONTROLS. YES
WHEEL DRESSER .................... YES
LUBE SYSTEM ...................... AUTOMATIC
HORSEPOWER SPINDLE MOTOR ......... 5
HORSEPOWER HYDRAULIC MOTOR ....... 3
Get Your Price from Yoder Machinery Sales!
