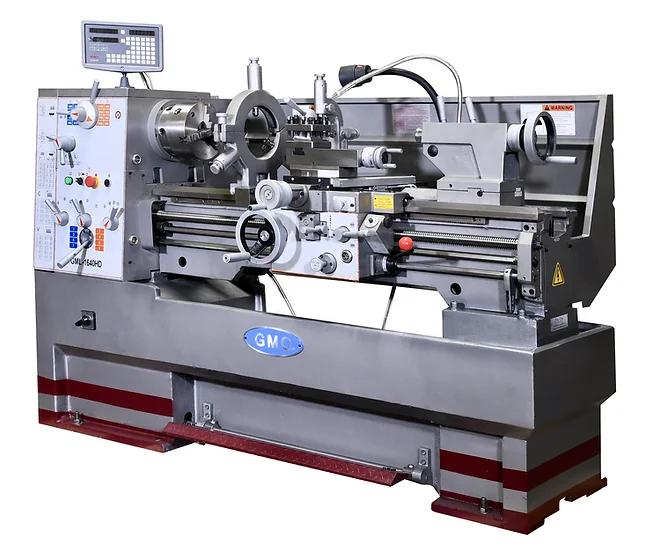

16" x 40" GMC #GML-1640HD, Heavy Duty Precision Gap Bed Lathe w/DRO, 2.06" Spindle bore, 10.25" guideway width, 6 HP, 1800 RPM

Estimated monthly payment valid upon approved credit.

Request Formal Quote

New GMC 16 x 40" Heavy Duty Precision Gap Bed Lathe w/ DRO GML-1640HD
ISO 9001 certified
Large spindle bore 2-1/16
Heavy Duty spindle D1-6
One-piece solid cast iron machine base
Heavy Duty guideway width 10-1/4
Heavy Duty main motor 6 HP

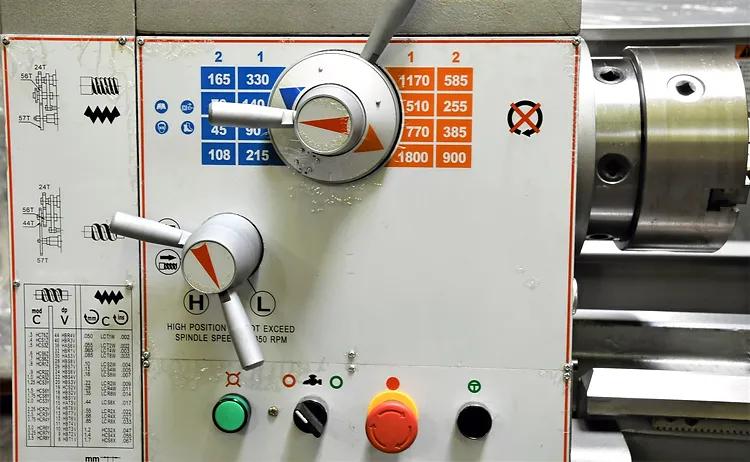

16 spindle speeds from 45-1,800 rpm, speeds: 45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm
45 kinds of inch threads, and 39 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year industrial warranty for parts
Max. swing over bed
16-1/16"
Max. length of workpiece
40"
Max. swing over cross slide
10-1/4"
Max. Swing in gap
23-1/4"
Width of Bed
10-1/4"
Effective length in gap to spindle
8-1/2"
Effective length in gap to chuck jaws
3-1/2"
Spindle bore
2-1/16" D1-6
Taper of spindle center
M.T. #6 (MT6/MT4 sleeve)
Spindle speeds
45-1,800 rpm / 16 steps
Longitudinal feeds
0.0018-0.07 IPR, 42 kinds
Cross feeds
0.0009-0.03 IPR, 42 kinds
Inch threads
70-2 TPI, 45 kinds
Metric threads
0.2-14 mm, 39 kinds
Diametral Pitch threads
8-40 DP, 21 kinds
Module threads
0.3-3.6 mm, 18 kinds
Max. travel of top slide
4-1/4"
Max. travel of cross slide
8-1/2"
Spindle length w/o chuck
Leadscrew length X TPI
20-1/2"
1-1/4" x 4 TPI

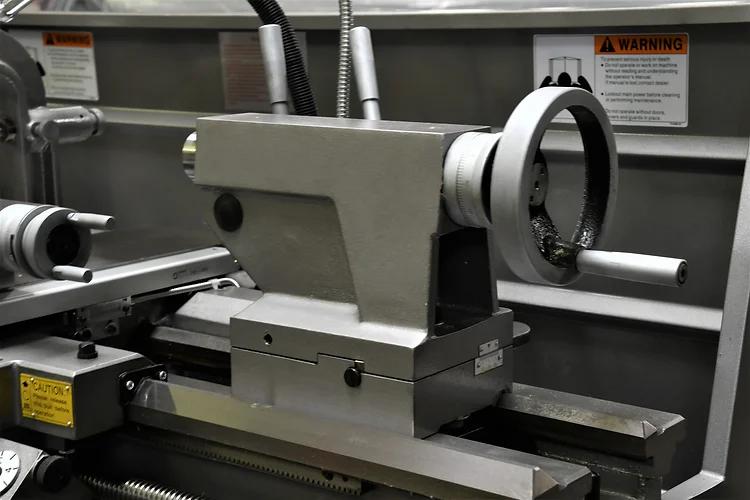

Diameter of tailstock quill
2-1/16"
Max. travel of tailstock quill
5"
Taper of tailstock quill center
MT4
Main motor:
Note:
6 HP, 3 Phase, 20AMP
Prewired: 220VAC
30AMP Breaker Needed ( 20A x 1.5 )
Coolant pump:
1/8 HP, 220V, 3 Phase
Oil for Headstock / Gear box / Apron
#30 weight machine oil
Eg: Texaco regal R&O 100, 3 Gal.
Net weight:
4,150 lbs.
Overall Dimensions (LxWxH):
Shipping Dimensions:
79" x 38" x 56"
80x36x70
Standard Equipment:
- SINO DRO (installed)

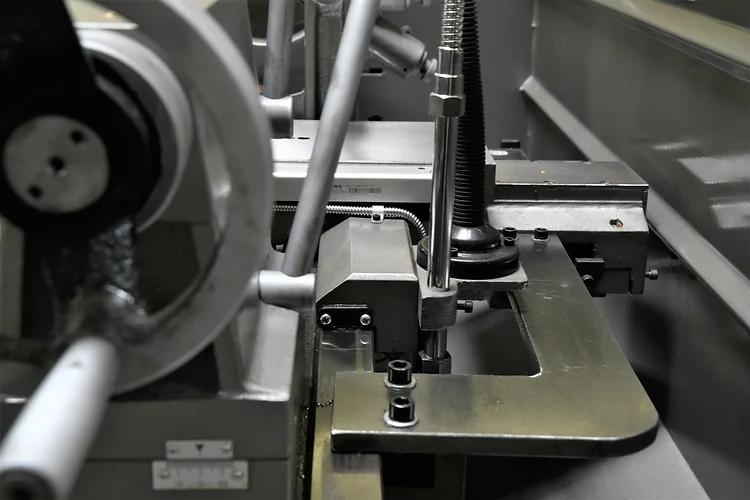

- Taper turning attachment (installed)
- 8 3-jaw chuck with one set of reversible jaws
- 10 4-jaw chuck
- 12 Face plate
- 5 1/2 large steady rest with roller jaws (bearings)
- Oil pump on Apron for all guideways and leadscrews
- 2 follow rest with roller jaws (bearings)
- Removeable gap

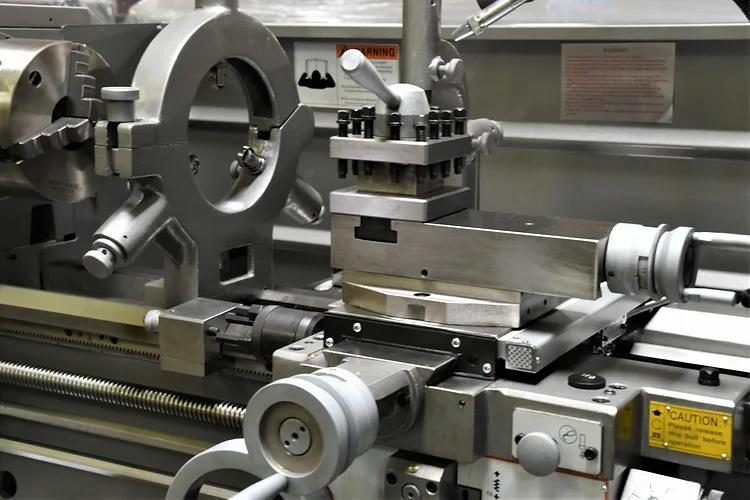

- 4-way tools post
- Foot brake
- Halogen Work light and coolant system
- Full length splash guard
- (2) dead centers and (1) reducing sleeve MT6/MT4
- Thread chasing dial
- Tool box and leveling pads
