Manufacturer: Chevalier
Model: FSG-1640ADII
Year: 2001
Width/Cross: 16.0
Length/Longit.: 40.0
Stock # 164380
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

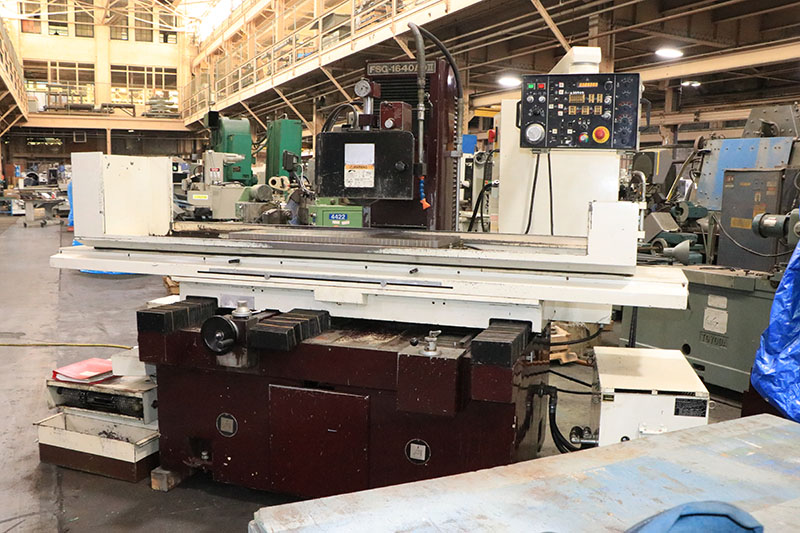

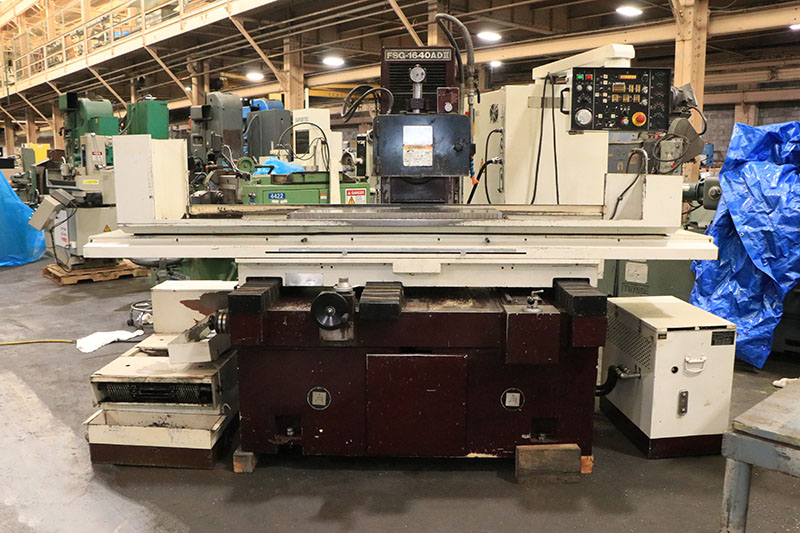

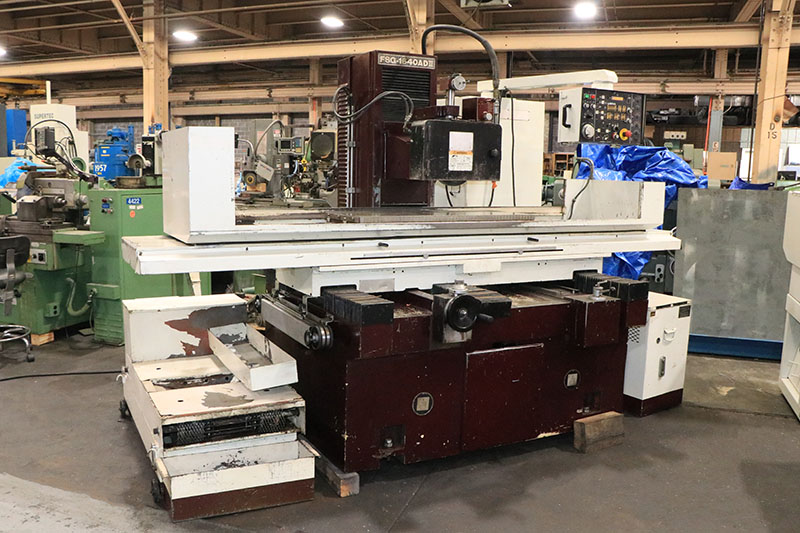

16" X 40" CHEVALIER PRECISION SURFACE GRINDER
W/PROGRAMMABLE MICROPROCESSOR AUTOMATIC
INCREMENTAL DOWNFEED CONTROL (PENDANT MOUNTED)
MODEL: FSG-1640ADII… S/N: GC908003… NEW: 2001
TABLE SIZE............................ 15-3/4" x″9-5/8"
MAX. GRINDING CAPACITY ............... 16" x 40"
DIST. FROM SPINDLE CENTER TO TABLE ... 24-3/8"
MAX. LONGITUDINAL TABLE TRAVEL,
HYDRAULIC .......................... 41-5/16"
MAX. LONGITUDINAL TABLE TRAVEL,
MANUAL ............................. 43-1/4"
VARIABLE TABLE SPEED, HYDRAULIC ..... 16' TO 82' FPM
MAX. CROSSFEED TRAVEL, AUTOMATIC .... 16"
MAX. CROSSFEED TRAVEL, MANUAL ....... 18"
CROSS RAPID TRAVEL .................. 12' FPM
AUTOMATIC CROSSFEED INCREMENT ....... 1/8" TO 1-1/4"
HANDWHEEL PER REV. .................. 0.25"
HANDWHEEL PER GRADUATION ............ 0.0025"
MICROFEED- PER REV. ................. 0.005"
MICROFEED- PER GRAD. ................ 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED ...... 0.000050" TO .002"
VERTICAL RAPID TRAVERSE RATE ........ 8" IPM
SPINDLE MOTOR ....................... 5 HP
STANDARD GRINDING WHEEL ............. 14"DIA. x 2"W x 5"B
SPINDLE SPEED ....................... 1,750 RPM
APPROX. WEIGHT ...................... 9,240 LBS
APPROX. DIMENSIONS .................. 120" x 68" x 76"H
APPROX. DIMS. REQUIRED FOR OPS. ..... 158" x 68" x 76"H
EQUIPPED WITH:
HYDRAULICALLY ACUTATED LONGITUDINAL TABLE FEED,
WITH HANDWHEEL FOR MANUAL TABLE MOVEMET
ELECTROMECHANICALLY ACTUATED FEED OF SADDLE
VERTICAL DRIVE BY AC SERVO MOTOR

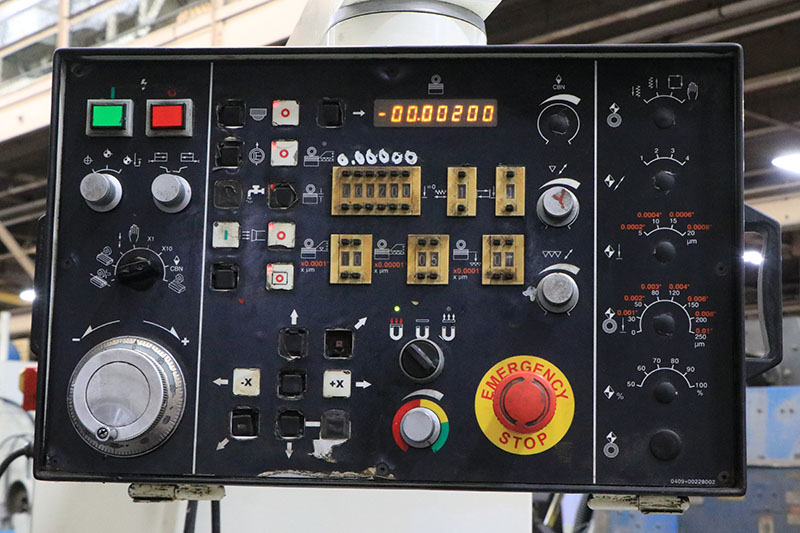

PENDANT MOUNTED AND MICROPROCESSOR CONTROLLED AUTOMATIC
INCREMENTAL DOWNFEED OF GRINDING WHEELHEAD FROM
0.00005" T0 0.002" IN SURFACE OR PLUNGE MODES OF
OPERATION.… FULLY AUTOMATIC GRINDING CYCLE
INCLUDING RAPID ADVANCE OF… GRINDING WHEELHEAD,
0 T0 7 SPARKOUT PASSES, AND RETRACTION OF WHEELHEAD
TO A PRE-SET DISTANCE AT THE COMPLETION OF THE CYCLE.
TABLE AND SADDLE GUIDE WAYS MADE OF SPECIAL STEEL RAILS
WITH HIGH ACCURACY STEEL ROLLERS
PRECISION NEEDLE ROLLER BEARINGS USED ON THE ELEVATING
GUIDE WAYS
FINE (MICRO) FEEDS GRADUATED TO .00005" FOR BOTH
VERTICAL… CROSS FEEDS

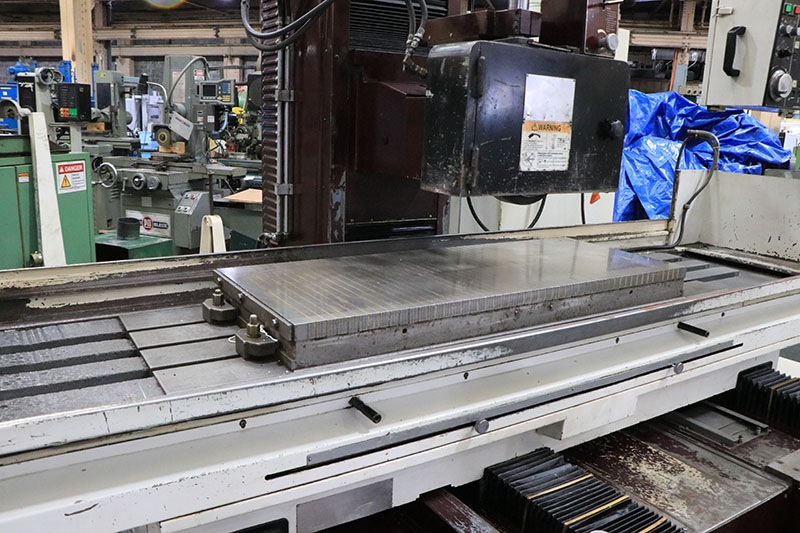

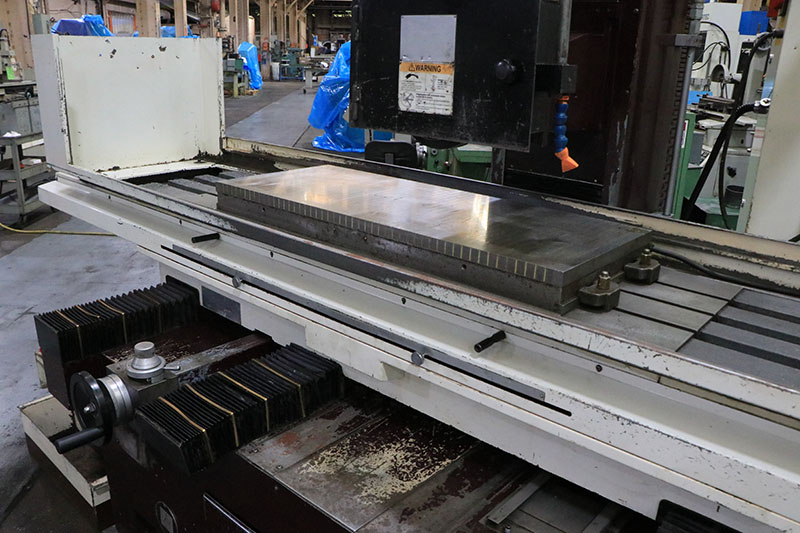

15-3/4" X″9-3/8" KANETSU MODEL KET-40100K
ELECTRO-MAGNETIC CHUCK WITH A PENDANT MOUNTED
POTENTIOMETER FOR VARIABLE HOLDING POWER AND A
SELECTOR SWITCH FOR AUTOMATIC DEMAGNETIZATION
OF WORK PIECE.
COOLANT SYSTEM w/PAPER FILTRATION
POWER…"OVER-THE-WHEEL" DRESSER
EXTERNAL HYDRAULIC PUMP AND TANK
5 HP″/60/575 VOLT DRIVE SPINDLE MOTOR
TRANSFORMER WILL BE PROVIDED, WIRED FOR 200, 208,
230, 240, 440, 460 OR 480 VOLTS.… PLEASE SPECIFIY
YOUR VOLTAGE, AND WE WILL PROVIDE THE CORRECT
TRANSFORMER.
LINK TO VIDEO: https://youtu.be/UF8wksWJnl0?si=RfWyWrINF7_NZpUs
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION… APPEARANCE - ORIGINAL PAINT **
