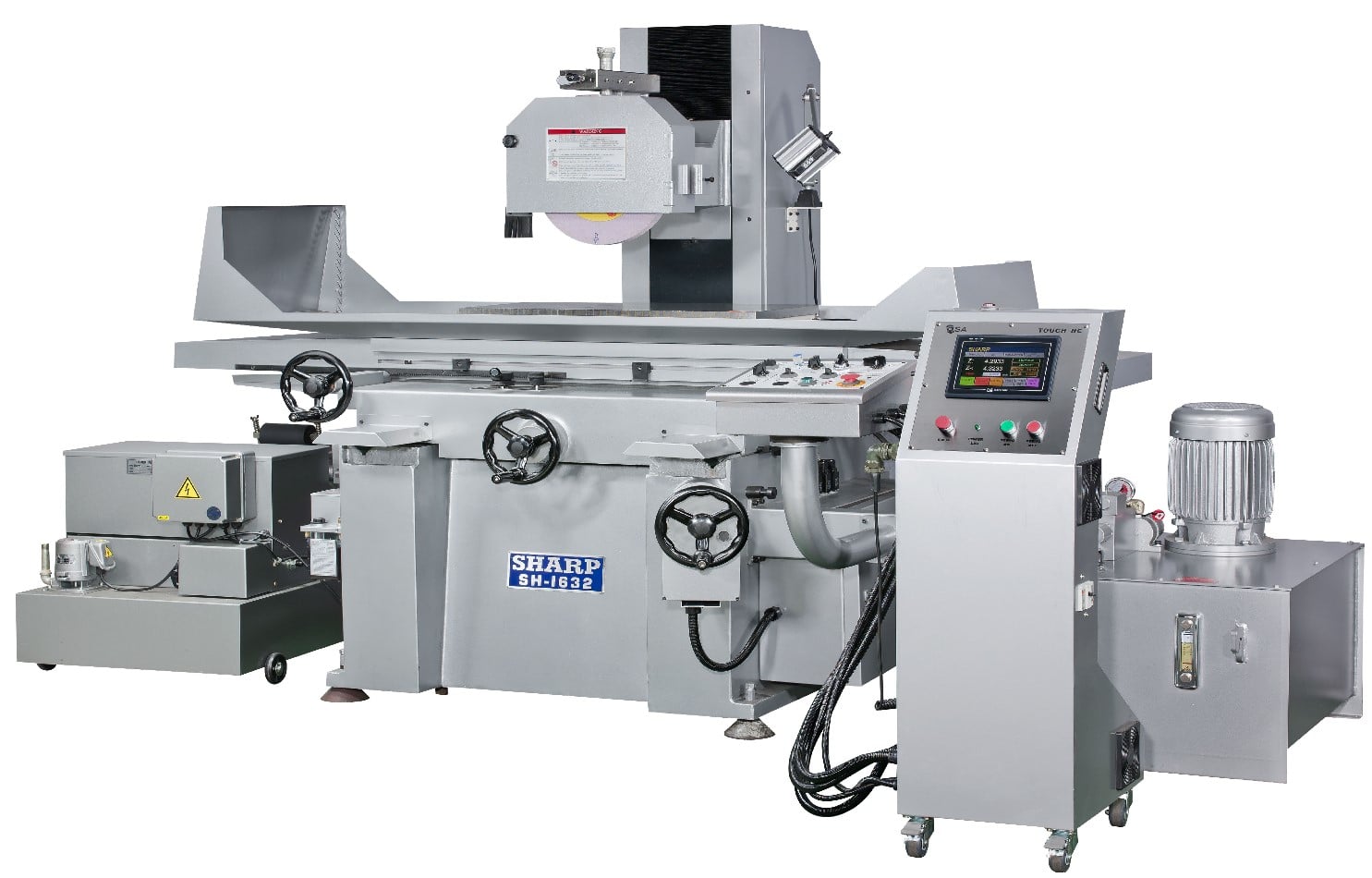

16" x 32" Sharp #SH-1632, automatic, 5 HP, 1720 RPM, extra wide bed, 14" x1.5" x5" whl.

16” X 32” Capacity Automatic Surface Grinder with 2-axes Auto, or 3-axes Auto with downfeed control option, 5HP Motor, Spindle Speed 1,720 RPM, 2-V Ways, Extra Wide Bed, Double Longitudinal “V” Ways and Cross “V” Ways, Hydraulic Table (with Over Travel Protection), Auto Crossfeed (Intermittent and Continuous Mode), Slide Ways are Hand Scraped and Turcite Coated, Annealed Castings for Greater Machine Stability, An Optional Programmable Spindle Downfeed System with User Friendly Control

STANDARD EQUIPMENT: 25 Gal Coolant System, Auto Lube System, Grinding Wheel (14” x 1.5” x 5”), Wheel Adapter/Flange, Wheel Balancing Arbor, Wheel Balancing Stand, Diamond Dresser, Splash guard both front and back (not shown on photo), Tool Kit

SPECIFICATIONS:

• Capacity Table Travel: 17.6” x 36”
• Spindle Center to Table Surface: 23.6”
• Table Working Surface (W x L): 15.8” x 32”
• Longitudinal Hydraulic Table Feed: 6.6-82 FPM” Feed
• Intermittent Cross Feed: 0.004-0.4 IPM
• Continuous Cross Feed: 39 IPM
• Number of graduations on dial: 200
• Feed per Graduation: 0.0005”
• Feed per Revolution: 0.1”
• Rapid Downfeed (optional): 18.9 IPM
• Vertical Travel
• Number of Graduations: 500
• Feed per Graduation: 0.0001”
• Feed per Revolution: 0.05”
• Rapid Downfeed (optional): 18.9 ipm
• Wheel Size (OD x Width x ID): 14” x 1-1/2” x 5”
• Spindle Motor: 5 HP
• Coolant System Motor: 1/8 HP
• Approximate Weight: 7,300 Lbs.
• Total Power Consumptions: 220V 8KVA/35 amps or 440V 8KVA/18 amps

Optional Accessories for the SH-1632

• 440V Transformer - 3HP (for Micro Control Downfeed System) 440T4:
• 16” x 32” Kanetsu Electromag Chuck w/control KET-4080:
• 16” x 32” Kanetsu Electromag Chuck w/control (Fine Pole) KESL-4080:
• 16” x 32” Walker Electromag Chuck w/control (Fine Pole) LBP-1632:
• Parallel Dresser (Manual) SH-07:
• Parallel Dresser (Semi-Automatic) SH-08:
• Radius and Angle Dresser SH-09:
• Halogen Worklight WL-110V55W:
• Coolant System w/Dust Collector (25 Gal):
• Coolant System w/Paper Filter & Magnetic Separator (25 Gal):
• Coolant System w/Paper Filter & Magnetic separator (30 Gal):
• Dust Collector Only:
• Paper Filter Refill:
• Spare Wheel Adaptor (Flange) SH-1632 SH-FLANGE 1632:
• Radius Forming Attachment SH-13:
• Angle Forming Attachment SH-14:
• Digital Readout Systems (Factory Installation):
• Fagor 20i D.R.O. (installed*) FG-SH1632:
• Fagor 40i D.R.O. (installed*) FG-40i-SH1632:
• Acu-Rite 200S D.R.O. AR-SH1632:
• Newall DP700 D.R.O. DPG NW-SH1632:

***All Price, Location and Specifications Subject to Change without Notice***
