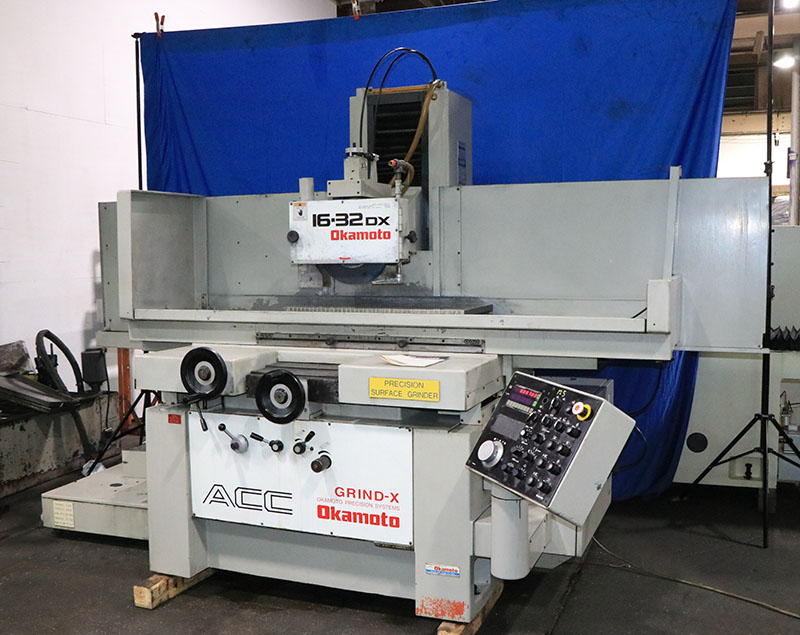

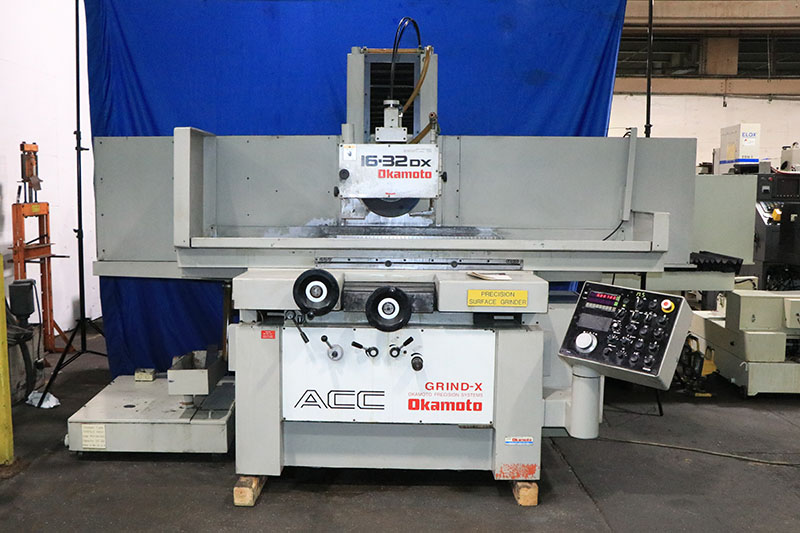

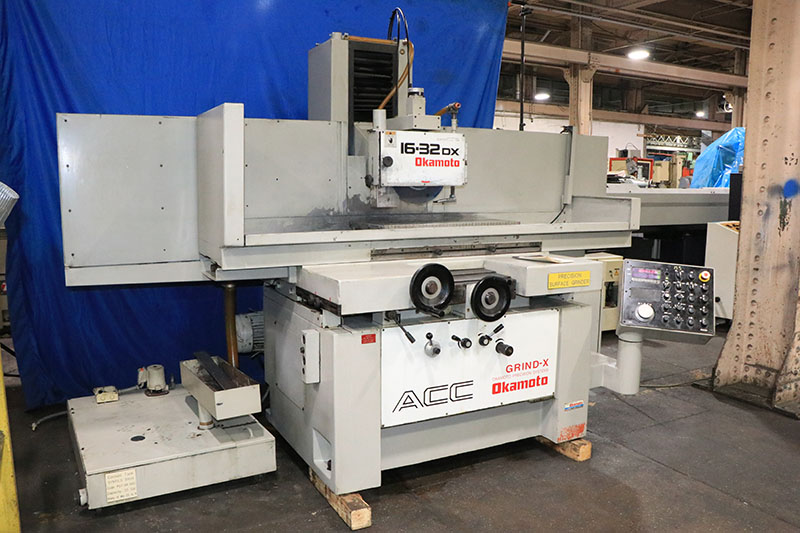

16" x 32" Okamoto #ACC-1632DX, automatic surface grinder, electro-magnetic chuck, variable hold chuck control, 2001, ACC-1632DX

16” X 32” Automatic Surface Grinder with Electro-Magnetic Chuck, Variable Hold Chuck Control, Power Over-the-Wheel Dresser with Micrometer Adjustment, Coolant System, Power Rapid Wheel Positioning, Electronic Handwheel for Manual Vertical Adjustment, Digital Display, Hydraulic Table Traverse and Automatic Crossfeed.
GENERAL SPECIFICATIONS
Nominal Grinding Capacity: 16” X 32”
Max Height to Table Surface: 21.5”
Table Speed: Up to 82’ / Min (Infinitely Variable)
Max Longitudinal Table Movement: 38”
Auto Crossfeed Increment: 0.002” - 0.80”
Auto Continuous Crossfeed: 4’ - 40’ / Min
Crossfeed, Manual Handfeed Per Rev.: 0.25”
Max Crossfeed (Manual): 18”
Auto Incremental Downfeed: 0.00005” - 0.0015
Power Rapid Wheel Positioning Rate: 16 IPPM
Spindle Motor: 5 HP
Hydraulic Pump Motor: 3 HP
Vertical Rapid/Downfeed Motor: 0.5 HP

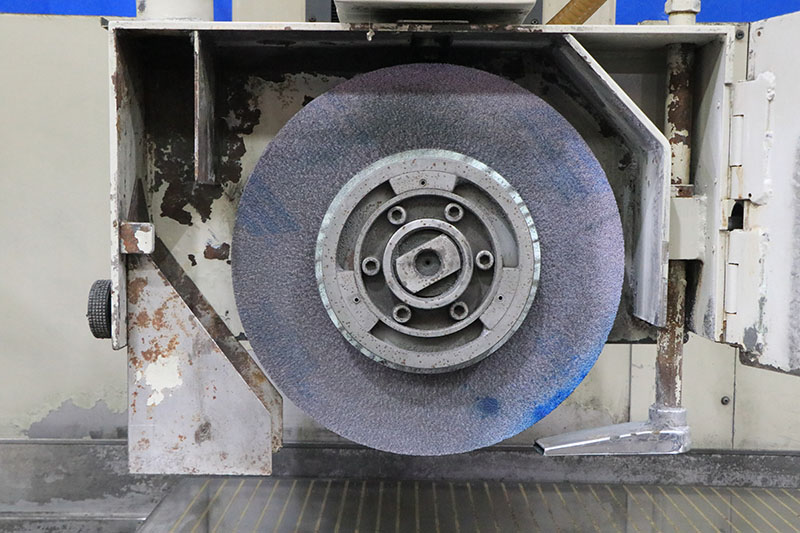

Wheel Size: 12” X 1.5” X 5”
Wheel Speed: 6,500 SFPM
Grinding Wheel Speed: 1,800 RPM

Voltage: 440V
Approx Machine Weight: 8,800 Lbs
Machine Dimensions: 132” X 87” X 82”
INCLUDES: Electro-Magnetic Chuck, Variable Hold Chuck Control, Power Over-the-Wheel Dresser with Micrometer Adjustment, Coolant System, Power Rapid Wheel Positioning, Electronic Handwheel for Manual Vertical Adjustment, Digital Display, Hydraulic Table Traverse and Automatic Crossfeed.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
