For Sale by Aleco Machinery Sales
Description

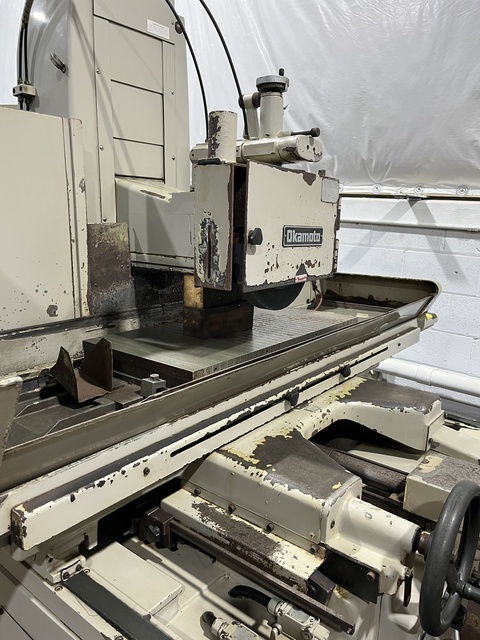

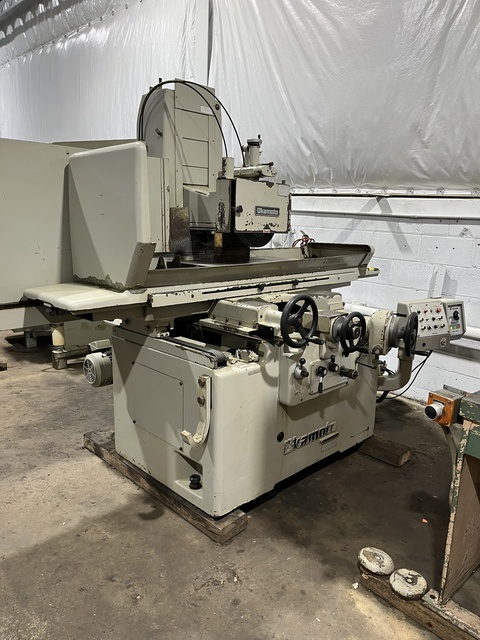

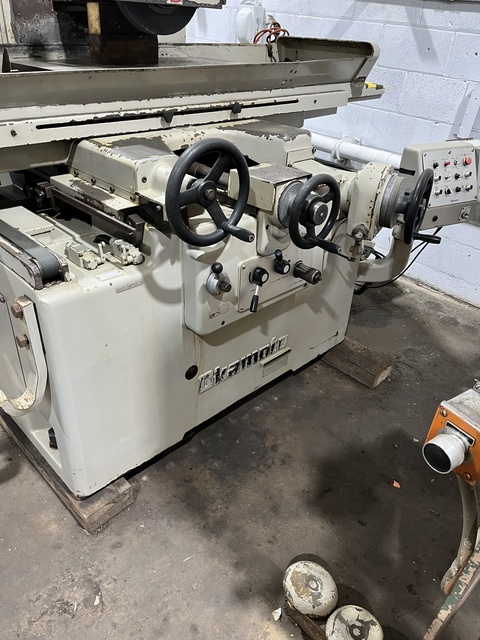

Pre Owned Okamoto 1632N Hydraulic Surface Grinder
GENERAL SPECIFICATIONS
Maximum Grinding Width X Length 16" X 32"
Maximum Vertical Clearance (14" Wheel) 20.6"
Table Load Capacity 1550 Lbs.
Table Working Surface 15.7" X 33.5"
Max. Cross Travel 17.3"
Max. Longitudinal Travel 37.4"
Longitudinal Movement of Table (HYD) 10 to 83 fpm
Cross movement of Saddle (Hyd Step Feed) 0.02" - 0.8"
Hyd continuous feed 8 - 40" ipm
Hand per Rev. 0.25"
Automatic feed per table stroke 0.0001 to 0.0015"
Automatic feed per saddle reversal 0.0001" - 0.0015"
Hand per Revolution 0.005"
Manual Incremental feed 0.0001" - 0.0015"
Grinding Wheel for 60 hz 12"
Grinding Wheel for 50 hz 14"
Grinding Motoer 5 HP
Hydraulic Pump 2 HP
Vertical Rapid Feeder 1/2 HP
Approximate Overall Dimensions 47” W X 66” L X 83” H
Approximate Overall Weight 4800 Lbs
Get Your Price from Aleco Machinery Sales!
