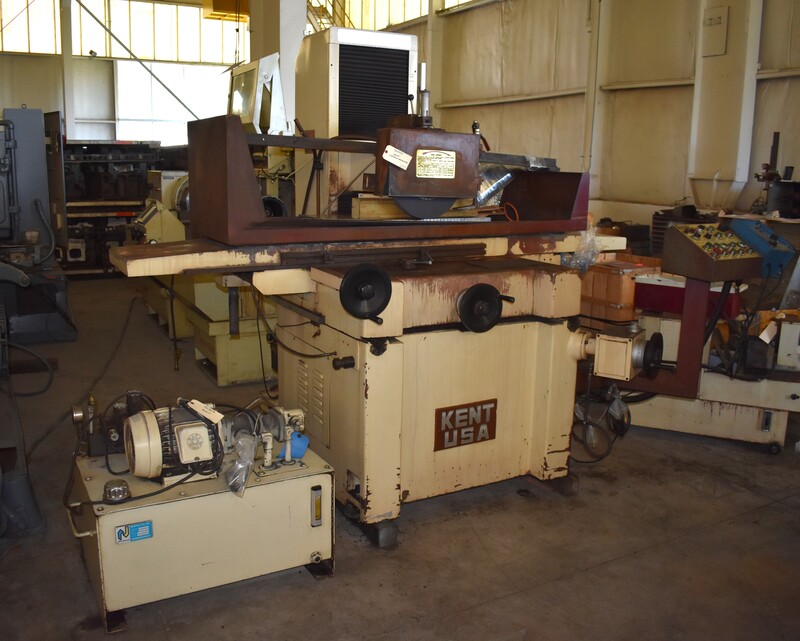

16" x 32" Kent USA #SGS-1632AHD, hydraulic feed 3-Axis automatic horizontal spindle surface grinder

Estimated monthly payment valid upon approved credit.

Request Formal Quote

16" x 32" KENT USA HYDRAULIC-FEED 3-AXIS AUTOMATIC
HORIZONTAL-SPINDLE SURFACE GRINDER

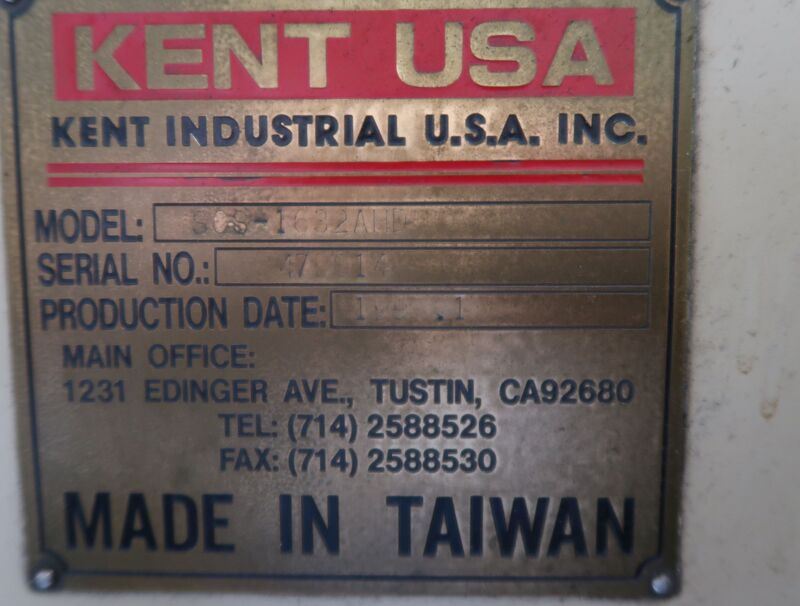

New 1996, Serial No 479014, Model SGS-1632AHD
16" x 32" KENT USA HYDRAULIC-FEED 3-AXIS AUTOMATIC
HORIZONTAL-SPINDLE SURFACE GRINDER
New 1996, Serial No 479014, Model SGS-1632AHD
EQUIPPED WITH:
Acu-Rite Digital Readouts

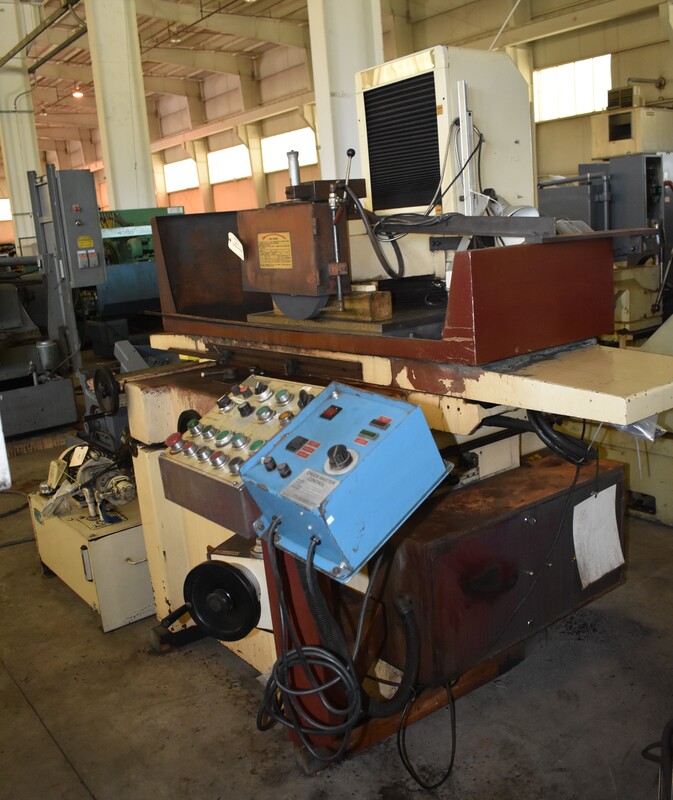

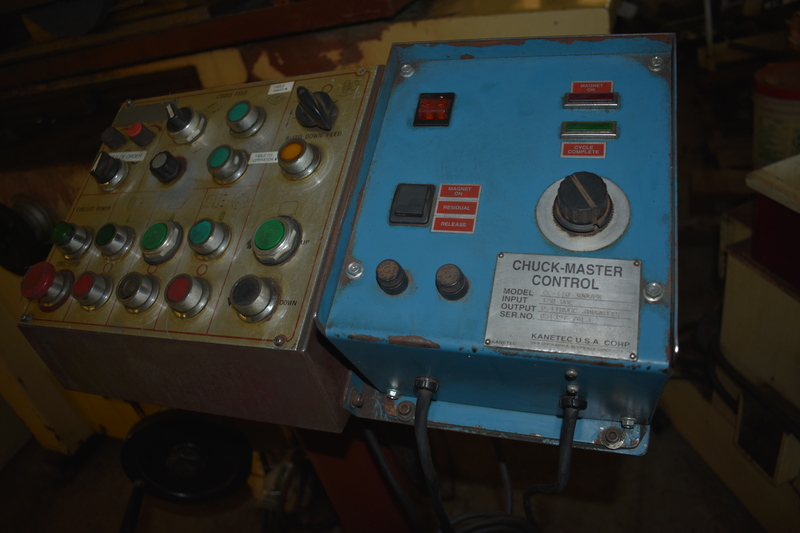

16" x 32" Electro-Magnetic Chuck w/Kenetec Controls
Above Wheel Dresser
Incremental Automatic Cross Feed
Power Downfeed w/Automatic Downfeed Controller

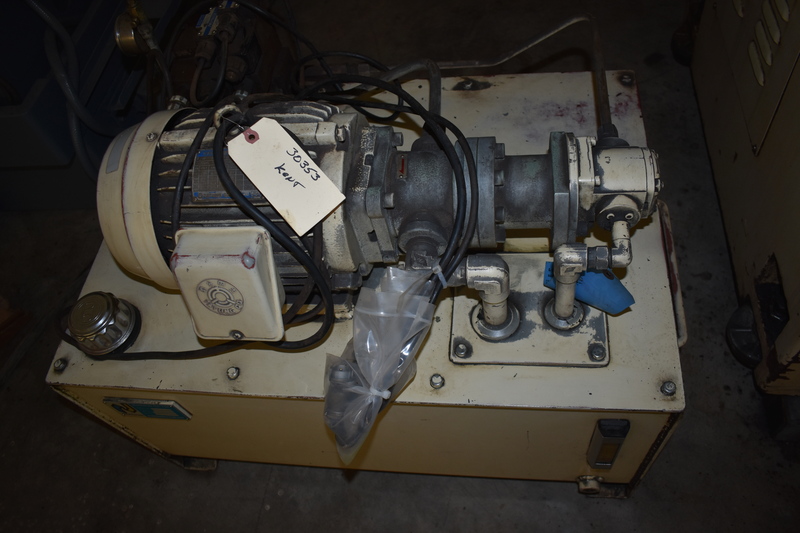

Coolant Filtration System (Tank & Pump)
CATALOG SPECIFICATIONS:
Table Working Surface, W x L 16" x 32"
Grinding Width Capacity, Maximum 16"
Grinding Length Capacity, Maximum 32"
Table Load Capacity with Chuck 1300 LBS
Table Longitudinal Travel, Maximum 32"
Table Cross Travel, Maximum 19"
Spindle-Center to Table, Maximum 25"
Grinding Wheel Diameter, Standard 14"
Grinding Wheel Width, Standard 2"
Grinding Wheel Hole Diameter 5"
Grinding Spindle Speed 1750 RPM
Table Longitudinal Feeds, Range 16 to 80 FPM
Table Cross In-Feeds, Incremental .004 to .4 IPR
Incremental Automatic Downfeed, Range .0001" to .001"
Grinding Wheel Spindle Motor 7.5 HP
Hydraulic System Motor 3 HP
Crossfeed Motor 1/5 HP
Weight, Approximately 6160 LBS
F.O.B. OUR WAREHOUSE
