For Sale by Gibbs Machinery Co
Surplus Record Dealer Since 1956
Location: Warren, MI
Contact Sales Dept.
Phone Number: 586...> Show Phone Number 586-755-5353
Let the seller know you found their listing on Surplus Record!
Description

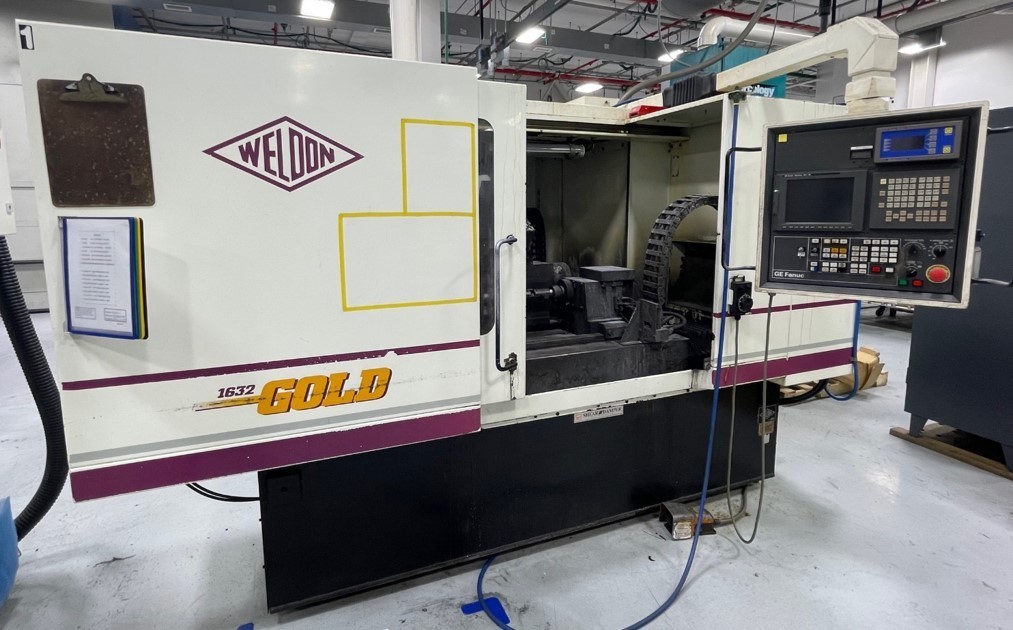

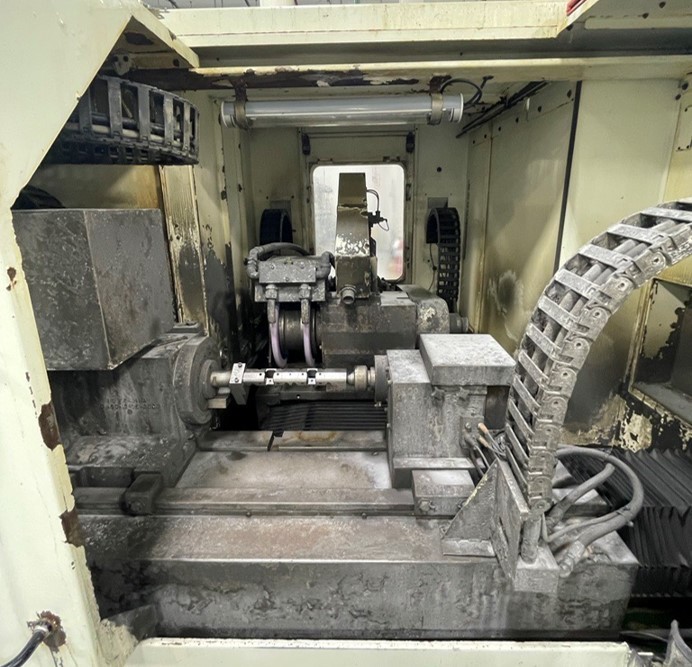

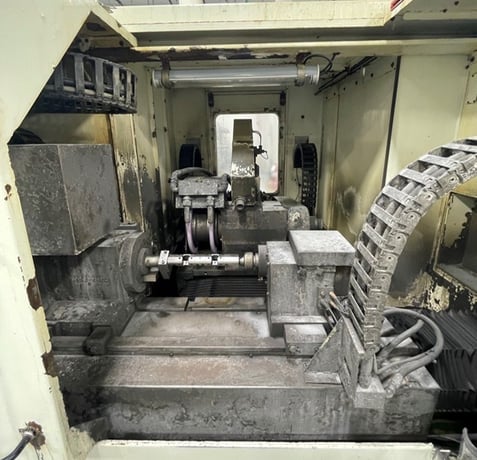

WELDON 1632 GOLD CNC OD GRINDER
Specifications:
Maximum Work Swing: 16"
Maximum Distance Between Centers: 26"
Worktable Travel: 32"
Maximum Workpiece weight, Between Centers: 300#
Spindle Nose (ASME Standard): 6" A2
Center Taper: #5 Morse
Through-Hole Diameter: 1.0625"
Motor: 15 HP
Travel of Wheel Slide: 15.25"
Maximum OD Wheel Diameter: 16"
Maximum Wheel Width: 3.0"
Tailstock Center Taper: #5 Morse
Tailstock Quill Retraction (Manual Lever): 1.38"
Machine Dimensions:
-Width: 131"
-Depth: 127"
-Depth For Shipping, Pendulum Swing In : 93"
-Height: 85"
-Centerline Workpiece, Height from Floor: 42"
Weight: 15,500#
Specifications:
Maximum Work Swing: 16"
Maximum Distance Between Centers: 26"
Worktable Travel: 32"
Maximum Workpiece weight, Between Centers: 300#
Spindle Nose (ASME Standard): 6" A2
Center Taper: #5 Morse
Through-Hole Diameter: 1.0625"
Motor: 15 HP
Travel of Wheel Slide: 15.25"
Maximum OD Wheel Diameter: 16"
Maximum Wheel Width: 3.0"
Tailstock Center Taper: #5 Morse
Tailstock Quill Retraction (Manual Lever): 1.38"
Machine Dimensions:
-Width: 131"
-Depth: 127"
-Depth For Shipping, Pendulum Swing In : 93"
-Height: 85"
-Centerline Workpiece, Height from Floor: 42"
Weight: 15,500#
Get Your Price from Gibbs Machinery Co!
