16" x 20" W.F. Wells #F-16-1, Horizontal Twin-Post Hydraulic Band Saw, 5000 lbs. capacity, 180" x 1.25" Blade, 20" Bandwheel, 60-425 FPM, 7.5 HP, new

Description

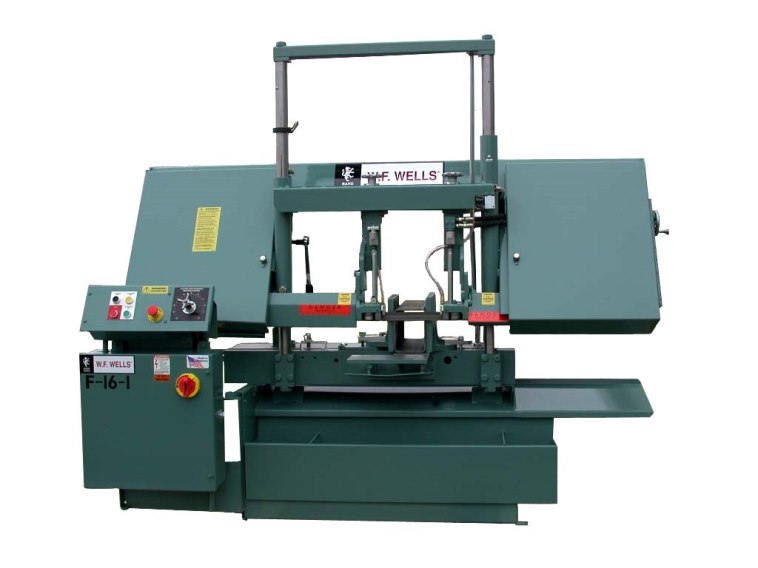

W.F. Wells 16″ x 20″ Horizontal “Twin-Post” Hyudraulic Band Saw, F-16-1

Inventory # 5825

Model: F-16-1

Made in USA

Specifications:

Capacity:

Round:

@ 90°: 16″

@ 45°: 9″

Rectangular:

@ 90°: 16″ x 20″

@ 45°: 16″ x 9″

Weight Capacity: 5,000 lbs.

Blade Speed: 60 – 425 FPM

Blade Size: 180″ x 1 1/4″ x .042″

Bandwheel Size: 20″

Vise: Manual, 8 1/2″

Sawing Force: 30 – 120 lbs.

Work Height: 26″

Motor: 7.5 HP / 208v, 230v, 460v / 3ph

Standard Features:

1 1/4″ Bi-Metal Blade

Carbide Guides with Roller Back-Ups

Semi-Automatic Operation

All Motors and Controls

45° Swiveling Vise

Built-In Coolant System

Blade Tension Indicator

Blade Powered Rotary Cleaning Brush

Feed Pressure Monitor/Regulator

All Safety Guards

Operator Manual and Parts List

Mechanical Specifications:

Dimensions: 97″ x 49″ x 83″ H

Shipping Weight: approx. 2,100 lbs.

FOB Factory – Contact us for Pricing and Availability
