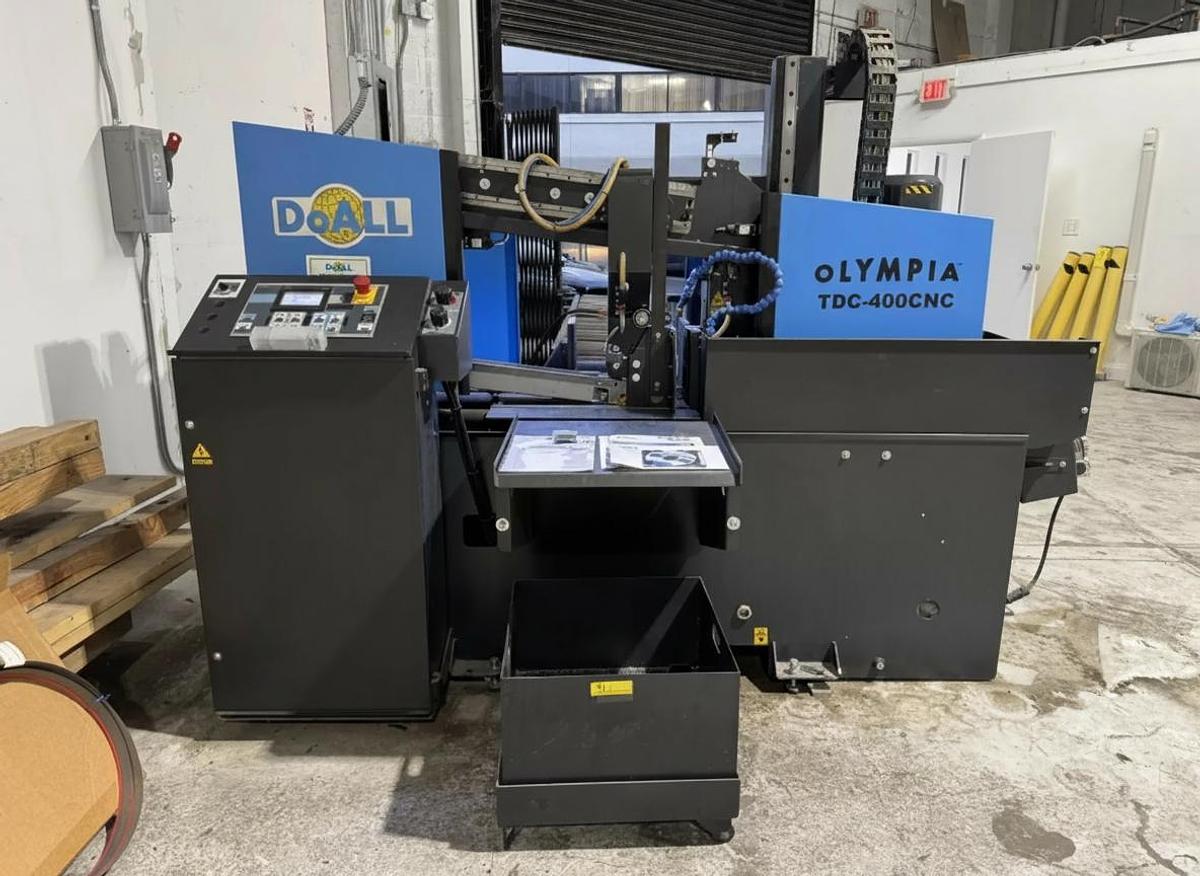

16" x 16" Doall #TDC-400CNC Olympia, Horizontal Tube Cut-off Saw, 178" x 1-1/4" x 0.042" blade, 328 FPM, 2023

16” X 16” Horizontal Bandsaw with Saw-Micro Saw Control, Variable Frequency Drive, Work Light, Pulley-Driven Band Brush, Automatic Guide Arm Setting, Work Height Sensor, Overfeed Protection, Variable Vise Pressure Control, Discharge Chute, Hydraulic Band Tension and Worm Chip Conveyor.
GENERAL SPECIFICATIONS
Cutting Capacity Round Tube: 16”
Cutting Capacity Round Solid: 9-”
Cutting Capacity Rectangle: 16” X 16”
Max Bundle Capacity: 15.8” X 13.4”
Min Bundle Capacity: 1.2”
Auto Index Single Stroke Lengths: 0.12 - 19.9”
Auto Index Multiple Stroke Lengths: 394”
Band Saw Blade Width: 1-¼” X 0.042”
Max Blade Length: 178”
Remnant Length Drop: 6”
Band Speed: 65 - 328 FPM
Band Drive: 4 HP
Hydraulic Pump: 1 HP
Coolant Pump: 0.12”
Coolant Tank Capacity: 16 Gal
Material Pass Line Height: 31-½”
Machine Weight: 2,866 Lbs
Dimensions: 102” X 102” X 72”
INCLUDES: Saw-Micro Saw Control, Variable Frequency Drive, Work Light, Pulley-Driven Band Brush, Automatic Guide Arm Setting, Work Height Sensor, Overfeed Protection, Variable Vise Pressure Control, Discharge Chute, Hydraulic Band Tension and Worm Chip Conveyor.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
