For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Jim Smith
515-23...> Show Seller's Phone Number 515-233-6330 Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With

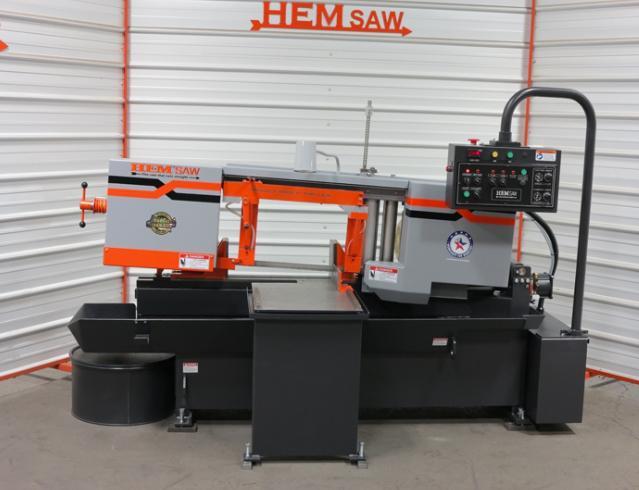

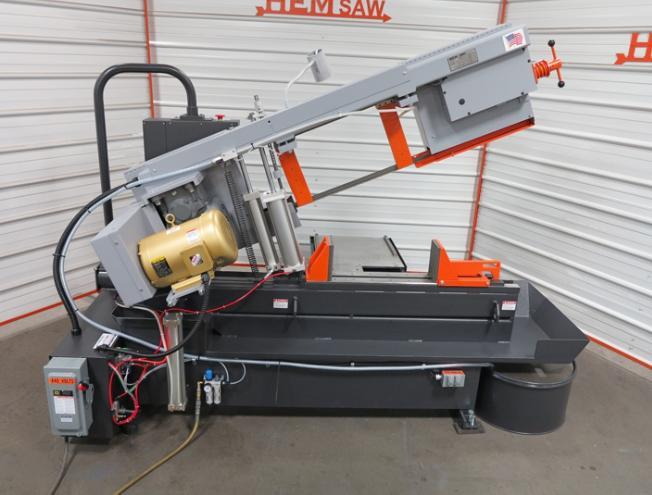

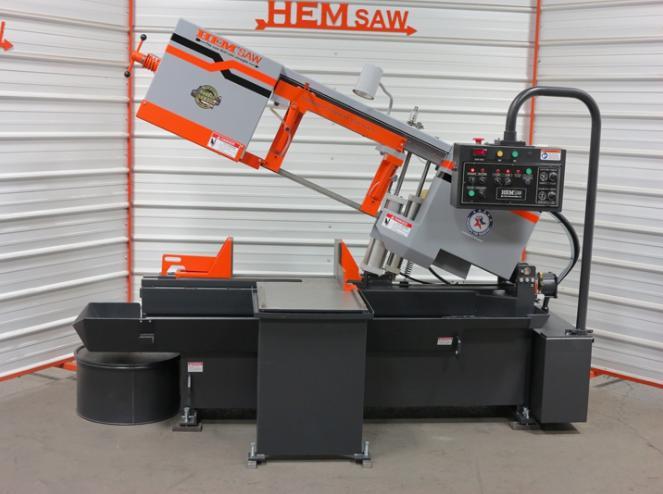

| Saw | Pivot Style, Horizontal Band Saw |
| Saw Capacity | 16" W x 12.5" H or 15.75" W x 14" H (14" Square 14" Round) |
| Arm Lift | Powered from control console. |
| Blade Size | 1-1/4 x 150 x .042 THK |
| Blade Drive | 7.5 HP, 220V (25 amps)/3PH or 440V (13 amps)/3PH Electrical Motor Requirement. 220V or 440V AC to be specified by the customer at the time of order. 1800 rpm, ball bearing TFC (The customer must ground this saw at the machine with an earth ground rod installed prior to installation for the warranty to be in effect.) |
| Blade Speed | Infinitely variable speed drive controlled through a variable frequency controller and speed is changed from LED readout on console. |
| Air Requirements | 85 PSI, 3 5 CFM, equipped with air filter/lubricator |

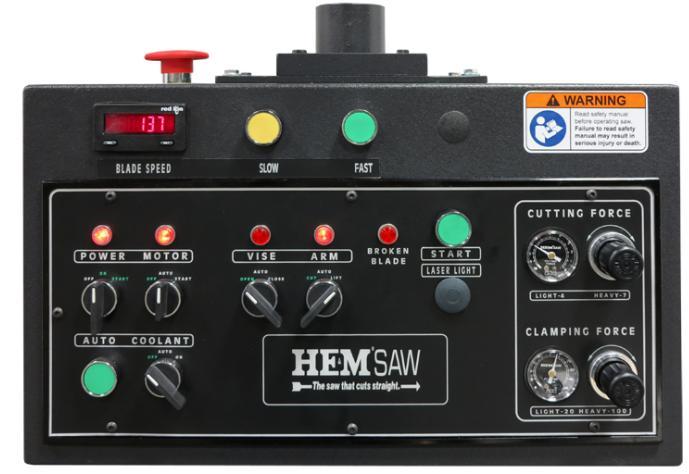

| Operator Control | Control Console is located in an Easy View style control on a gooseneck mount. The Control Console and gooseneck can each be pivoted for operator convenience. Saw may be operated in semi-automatic mode. |
| Discharge Table | 24 Solid Discharge Table for easier material handling after the cut. The table is 24 in length and standard as solid. The table is bolted onto the machine base and is fully coolant panned to return coolant to the machine. |
| Adjustable Main Vise | Main-clamping vise is air powered and non-cocking. |
| Vise Clamping Pressure | The operator controls the variable vise pressure, adjustable to clamp various metals. |
| Cutting Pressure | Adjustable cutting pressure/force to control the weight to be placed on the teeth of the blade. |
| Cutting Rate | Adjustable to regulate the saw arm traverse rate. This is a necessary feature to cut tubing at high rates without losing saw teeth. |
| Carbide Blade Guides | Side and back carbides are flat for maximum blade support. |
| Blade Chip Brush | Powered brush driven by an assembly mounted on the drive wheel removes chips that may become lodged in the blade gullets. |
| Hold-Down Fixture | A hold down fixture that mounts on the main vise for use when cutting more than one piece at a time. |
| Built-In Coolant System | Machine is set up for flood-style coolant system with coolant dispensed through the guide arms. The saw is fully panned to return coolant to the tank. |
| Wash-Down Hose | A cutting fluid clean-up hose is provided for machine wash down. |
| Blade Break Switch | Saw will automatically shut off if the blade breaks. |
| Safety Guards | Machine is equipped with blade guards and awareness barriers for safety purposes. |
Equipped With
Equipped With
EQUIPPED WITH:
OPTIONAL FEATURES:
IMMEDIATE, SUBJECT TO PRIOR SALE
Easy View Control Console
Built-In Coolant System w/ Wash-Down Hose
Built-In Coolant System w/ Wash-Down Hose
24″ Solid Discharge Table – Bolts to Saw
Air Machine (85 PSI, 4-6 CFM Minimum Air Requirement)
Air Machine (85 PSI, 4-6 CFM Minimum Air Requirement)
Adjustable Main Vise w/Variable Vise Pressure
220V(25 amps)/3PH or 440V(13 amps)/3PH Electrical Motor Requirement Hold Down Fixture * Amps increase w/added options – This is Not a Dual Voltage Machine
220V(25 amps)/3PH or 440V(13 amps)/3PH Electrical Motor Requirement Hold Down Fixture * Amps increase w/added options – This is Not a Dual Voltage Machine
Manual Guide Arm Adjustment
Variable Blade Speed w/ LED Readout
Carbide Blade Guides
Manual Blade Tension
Adjustable Cuting Rate & Cutting Pressure
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATIONNOTES:
OPTIONAL FEATURES:
Spray Mist Lubrication: Spray mist lubrication system with a selector switch located on control console to select and to switch back and forth from flood
coolant or spray mist lubrication. Price: $1,395.00
DELIVERY:Outboard Powered Vise on Discharge: Holds the material on the discharge side of the blade for “back trimming” and keeps the parts from closing during the cut. It provides an additional clamping surface and works in conjunction with the main saw vise but can be disconnected by a controlvalve. The use of this vise will decrease “burr” on the cut material. Price: $4,595.00
Reduced Capacity Top Clamps: Top Clamp for bundle cutting Price: $2,195.00 – Main Vise (Capacity 15” W x 10” H)
Powered Blade Tension: Assures and maintains proper blade tension at all times during the
cutting process. Price: $1,495.00
Chip Auger: Removes chips from the cutting area into an easy-to-empty container. Chips and coolant are separated into two different tanks. Price: $3,295.00
Cut Watcher® System: A system that monitors the cut for squareness to a pre-set deviation value. The system shuts down the saw when the pre-set value is exceeded. This is a must option for production cutting. (PATENT: 5,070,751) Price: $3,795.00
Light Clamping Pressure: Allows the machine to clamp thin wall tubing or other delicate materials with less clamping pressure reducing the possibility of
deforming them. Price: $295.00
Single-Phase Voltage: Larger frequency drive is added to make voltage on saw single-phase instead of 3-phase. Price: $795.00
Stock Table: Heavy Duty roller table, 24” centers, non-coolant panned and adjustable to be “trued-in” with the saw. Roller table is designed to move even the large bars with ease and accuracy. Price: 5’ x 18” Idle - $2,595.00 10’ x 18” Idle - $3,995.00
Load Table: Extra Heavy Duty roller table, 14” centers, totally coolant panned and adjustable to be “trued-in” with the saw. Table is attached to the saw.
Price: 10’ x 18” Idle - $6,395.00
IMMEDIATE, SUBJECT TO PRIOR SALE
Get Your Price from Smith Machinery Co!
Buyers Who Viewed This Listing Also Viewed …
JUST ADDED!

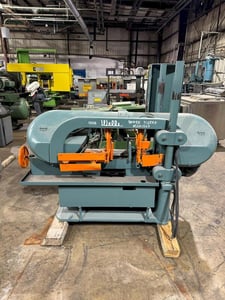

16" x 12" Wellsaw #1200, Semi-automatic Horizontal Bandsaw
