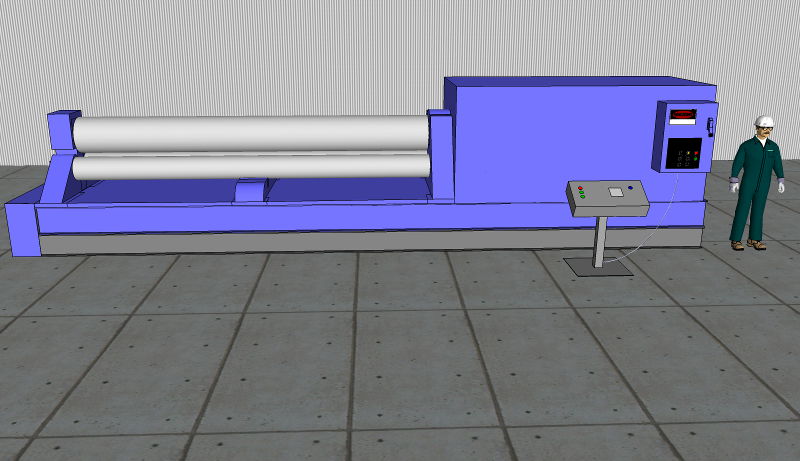

16' x 1" Hilles & Jones, 3 roll, 21" top roll, 60 HP variable speed, hydraulic drop, PLC, no pit, reconditioned

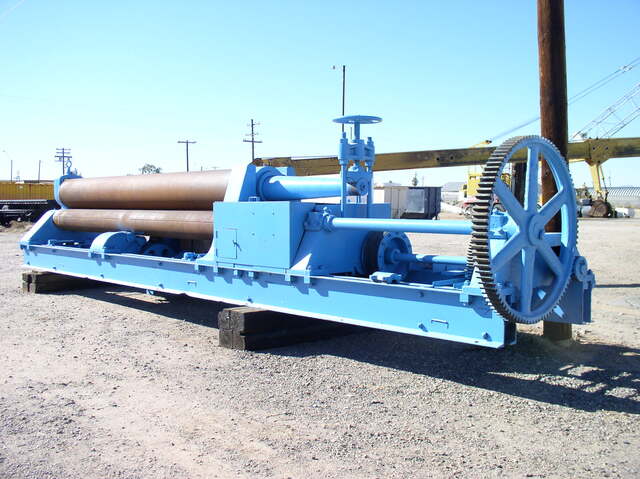

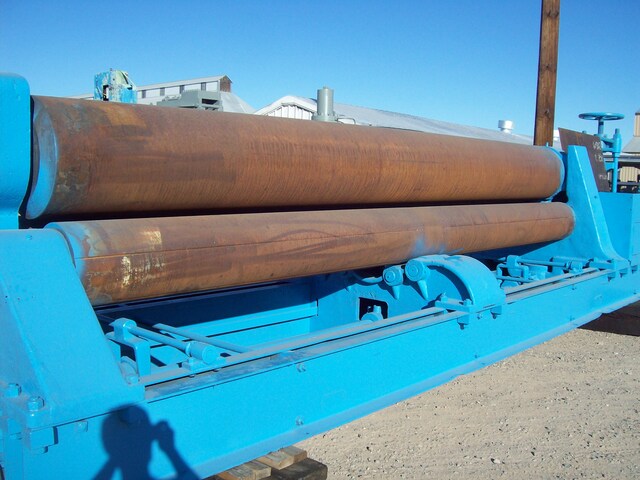

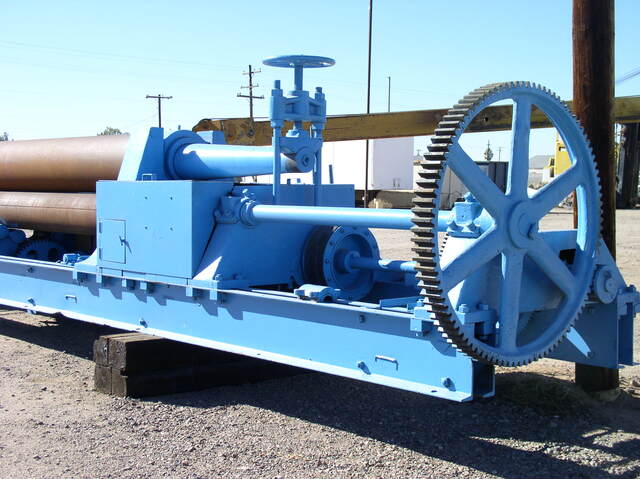

(1) Used 16' x 1" HILLES & JONES Plate Bending Roll; Pyramid Type; Vari-Speed; Hyd. Drop End; 60 HP Main Drive; New Controls; Reconditioned
Specifications:
Capacities:
Mild Steel:........................................16' x 1" (nominal)
Stainless Steel:..................................16' x 5/8" (nominal)
Bending Radius.....................................12" (minimum)
Roll Diameters:
Upper................................................20"
Lower(dual)......................................14"
Roll Lengths..........................................194"
Roll Adjustment(upper)..........................5"
Adjustment Method................................Motorized Screw Type
Rolling Speeds(variable)........................45-250 in/min.
Pass Line Height....................................53" from floor (nominal)
Roll Speeds (lower/driven).....................1.2 - 6.5 RPM
Drop End Angle......................................38° (nominal)
Drop End Type.......................................Hydraulic
Upper Roll Tilt.........................................5° (7") (nominal)
Upper Roll Lift Method............................Hydraulic
Main Roll Drive.......................................50 HP
Drive Type(main)....................................Variable Frequency
Upper Roll Adjustment Drive...................10 HP
Upper Roll Adjustment Drive Type..........Independent
Lubrication System:
Bearings.............................................Individual Grease Fittings
Lower Roll Drive Gears......................Enclosed Oil Bath
Equipped With:
60 HP Reliance variable frequency reversing drive
Totally enclosed gear reduction drive direct coupled to lower rolls
Complete electrical comtrols with operator's pendant
5 HP hydraulic unit with reservoir
Approx. Overall Dimensions....................31' L-R x 80" F-B x 92" High (No pit required)
Weight.....................................................74,120 lbs.
F.O.B.......................................................Casa Grande, AZ
