For Sale by Yoder Brothers Machinery
Surplus Record Dealer Since 1960
Ryan Yoder
419-26...> Show Seller's Phone Number 419-269-2000 Let the seller know you found their listing on Surplus Record!
Description
Dimensions
35" X 22" X 38" HIGH
Weight
1000 pounds
SERIAL ............. 250-16-188

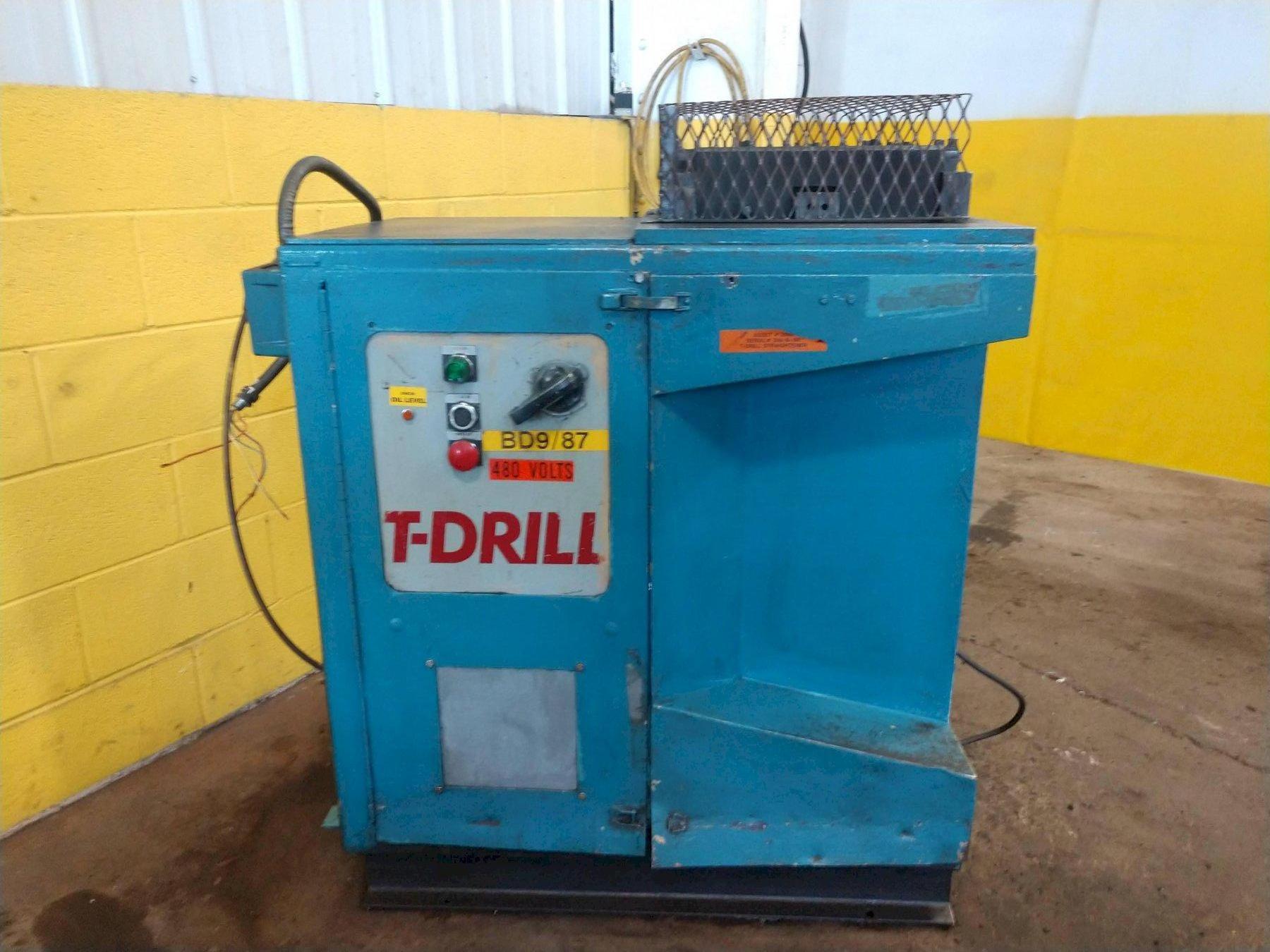

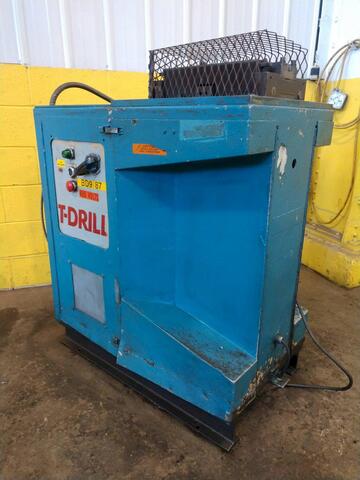

MODEL .............. 250 STRAIGHT-O-MATIC
CAPACITY ........... 16" LENGTH
PRODUCTION RATE .... 400-800 PARTS PER HOUR
MOTOR .............. 3/4 HP
REPLACEMENT NEW PRICE: $36,500
The Model 250 Straight-O-Matic system is designed to straighten flat or irregularly shaped metal parts, stampings, bars, forgings, or castings — with or without offsets or projections, before or after heat treating. It performs substantially higher production rates than required for hand or press straightening, and can be run by unskilled operators.
Parts can be out of straightness in varying amounts and at different locations and will be brought within the same straightness tolerance. No measuring before or after is required, other than occasional quality control check. The straightening action of the machine moves the parts beyond their elastic limit — and brings them back to a straight condition. This also stress relives the parts so that they retain their straightness.

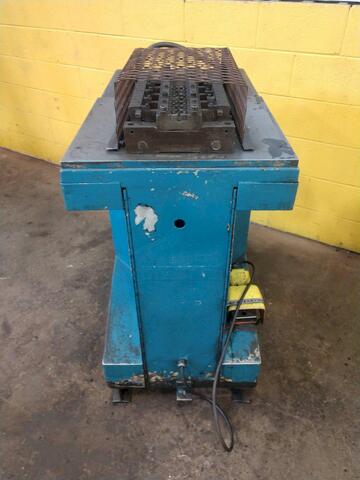

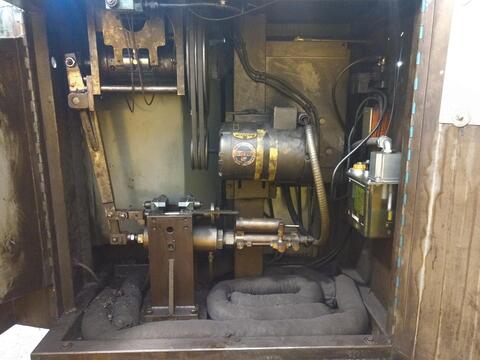

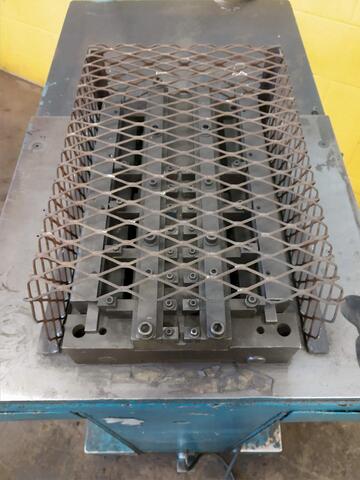

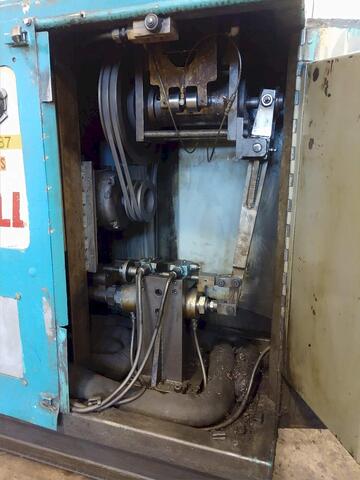

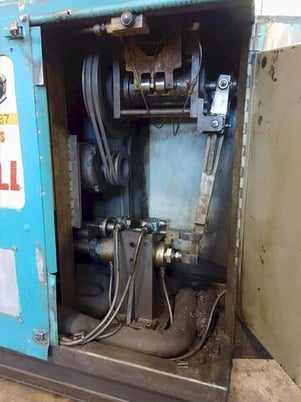

The Model 250 Straight-O-Matic system consists of basic machine with adjustable tooling stations that will accommodate a variety of parts. The side plates of the machine are actuated by rotary cams, which transmit alternate reciprocal strokes to the tooling stations.
35" X 22" X 38" HIGH
Weight
1000 pounds
SERIAL ............. 250-16-188
MODEL .............. 250 STRAIGHT-O-MATIC
CAPACITY ........... 16" LENGTH
PRODUCTION RATE .... 400-800 PARTS PER HOUR
MOTOR .............. 3/4 HP
REPLACEMENT NEW PRICE: $36,500
The Model 250 Straight-O-Matic system is designed to straighten flat or irregularly shaped metal parts, stampings, bars, forgings, or castings — with or without offsets or projections, before or after heat treating. It performs substantially higher production rates than required for hand or press straightening, and can be run by unskilled operators.
Parts can be out of straightness in varying amounts and at different locations and will be brought within the same straightness tolerance. No measuring before or after is required, other than occasional quality control check. The straightening action of the machine moves the parts beyond their elastic limit — and brings them back to a straight condition. This also stress relives the parts so that they retain their straightness.
The Model 250 Straight-O-Matic system consists of basic machine with adjustable tooling stations that will accommodate a variety of parts. The side plates of the machine are actuated by rotary cams, which transmit alternate reciprocal strokes to the tooling stations.
Get Your Price from Yoder Brothers Machinery!
