16 gauge x 4' Bailegh #BB-4816M-V2, Magnetic Sheet Metal Brake, 0-180 Deg. Bend, Unlimited Box Depth, 220 V, new

Description

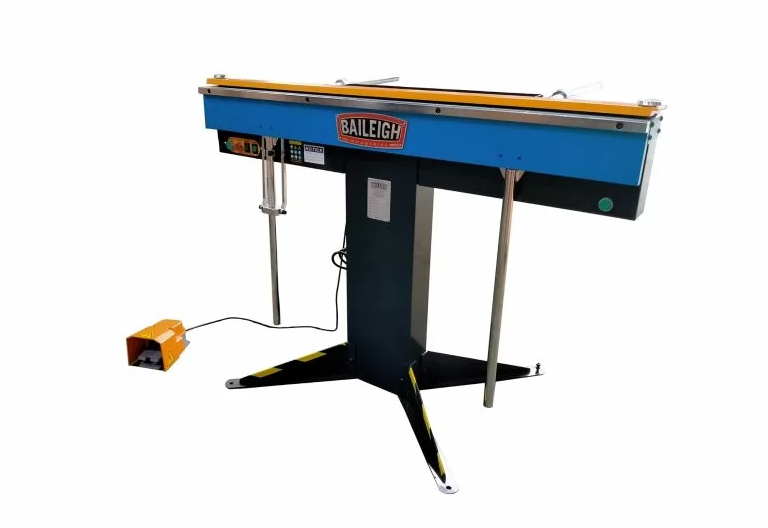

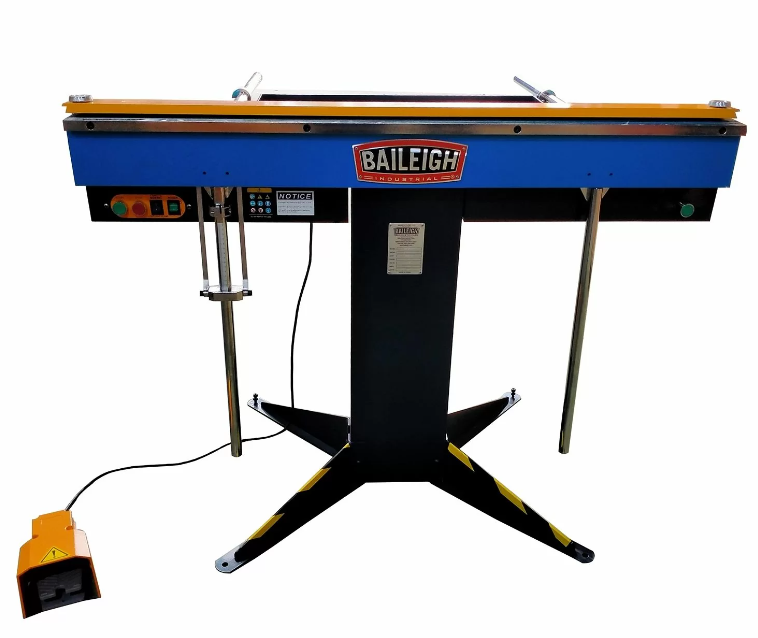

Baileigh Industrial 4′ x 16 Gauge Magnetic Sheet Metal Brake, BB-4816M-V2

Inventory # 9706

Model: BB-4816M-V2

Description:

Baileigh Industrial’s 4′ x 16 gauge magnetic sheet metal brake can bend boxes or pan to almost any depth since it doesn’t rely on conventional finger depths. Recommended for use in HVAC shops, industrial art shops, and general sheet metal fabrication shops. For making enclosed boxes, triangles, alternate bends on varying planes, and round items such as scrolling applications. As well as bending a variety of materials including sheets of mild steel, stainless steel, aluminum, coated materials, heated plastics, and more

Specifications:

Capacity:

Bending Length: 4′ (48″)

Mild Steel: 16 Gauge

Max. Bend: 0 – 180°

Max. Box Depth: Unlimited

Input Power: 220v / 1ph

Standard Features:

Runs on 220-volt single-phase power and will work at virtually any site

4′ (48″) length with a maximum capacity of 16 gauge mild steel

The breakthrough open-ended design allows you to create enclosed ducts and shapes impossible to make with a traditional box and pan brake

6-ton magnetic power is consistent across the entire beam, allowing for crisp bends even in the middle of the brake

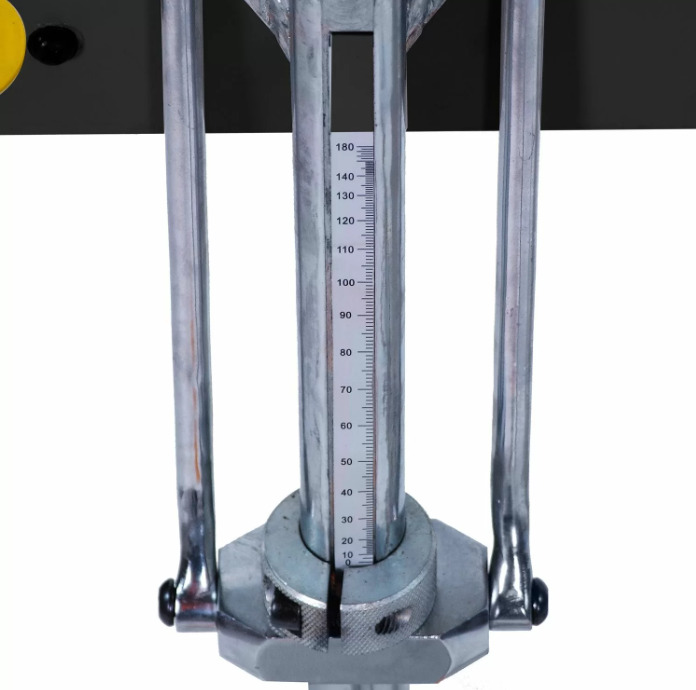

Scaled stroke angle control lets you deliver repeatable bends time after time

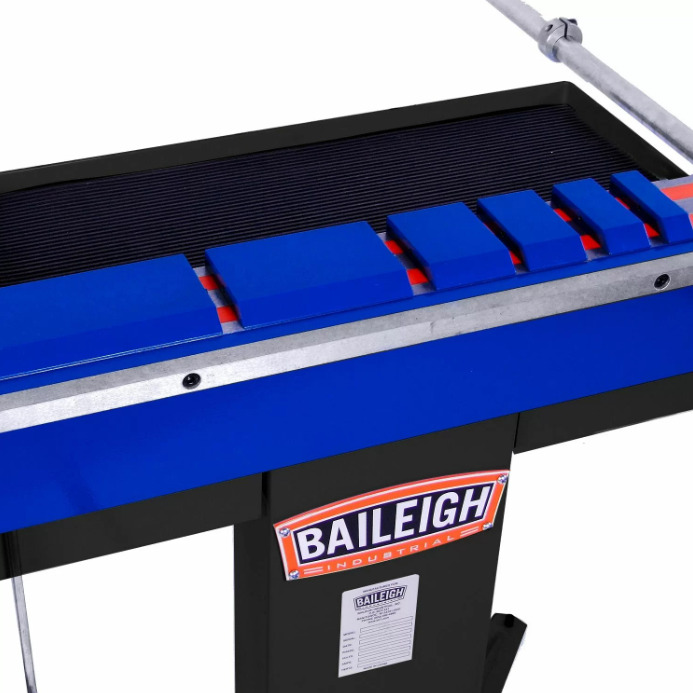

You can set up the mild steel clamping bar with straight bars (of various widths if you have very tight boxes to make) for straight bends or segmented clamping bars for box and pan applications

Blade gap adjustment on the clamping bars lets you work with sheet metal of different thicknesses

You can remove the bottom leaf’s bending extension for the tightest bend dimensions between bends of .625″

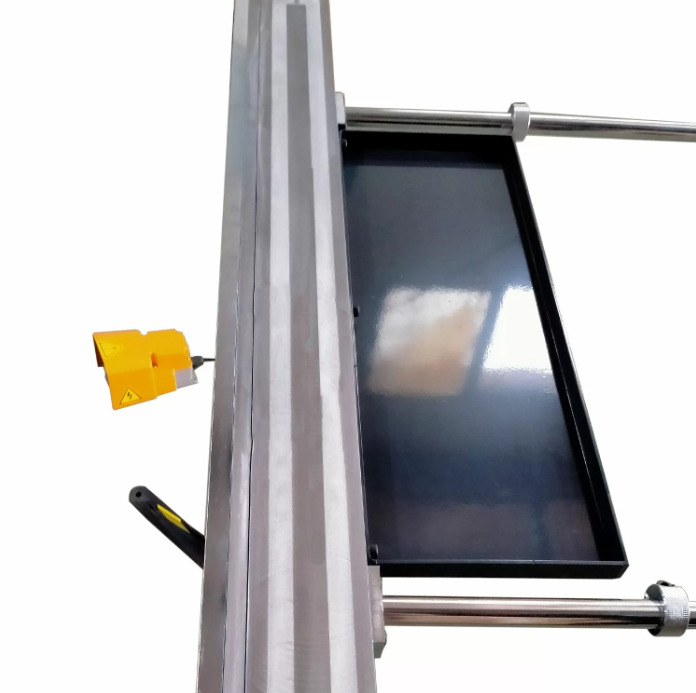

Comes with product supports and adjustable back gauges for production runs

One-year parts warranty

Mechanical Specifications:

Shipping Dimensions: 57″ x 45″ x 15″ H

Shipping Weight: approx. 500 lbs.

FOB Factory – Contact us for Pricing and Availability
