Description

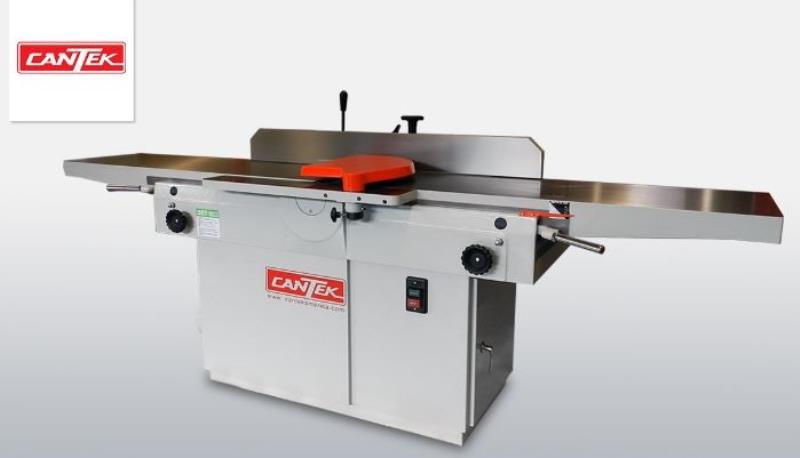

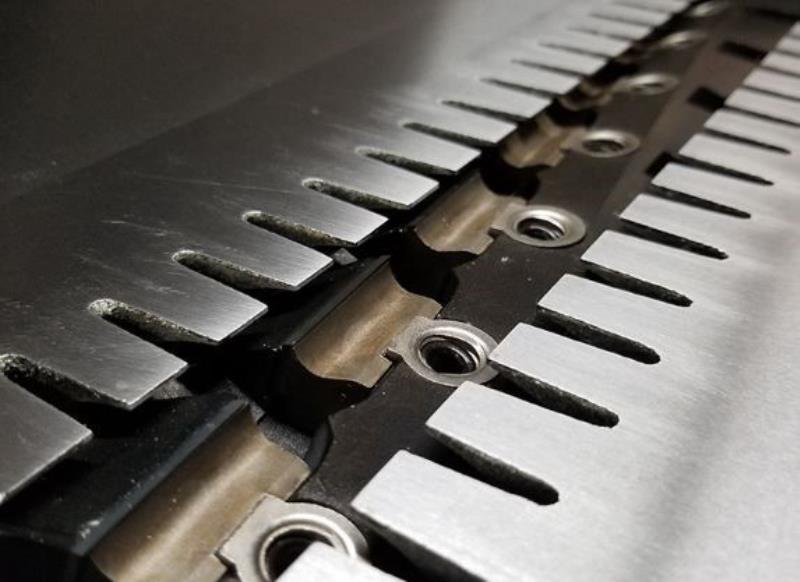

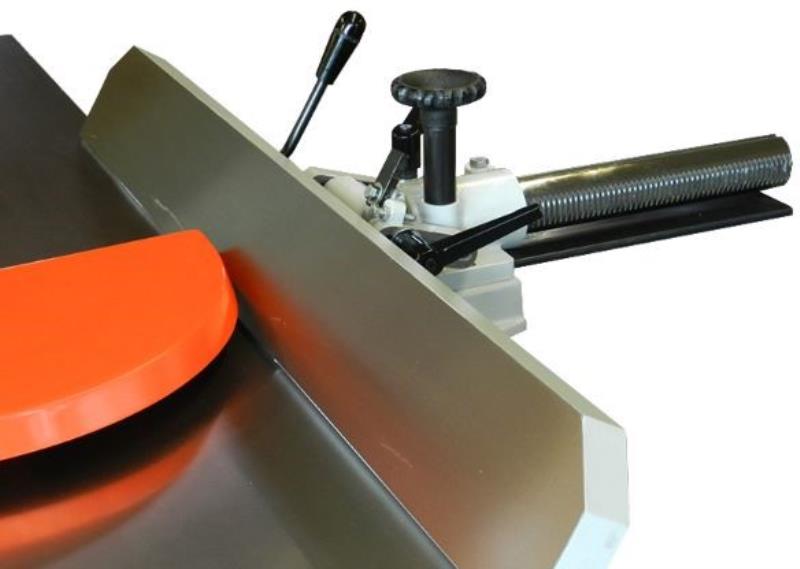

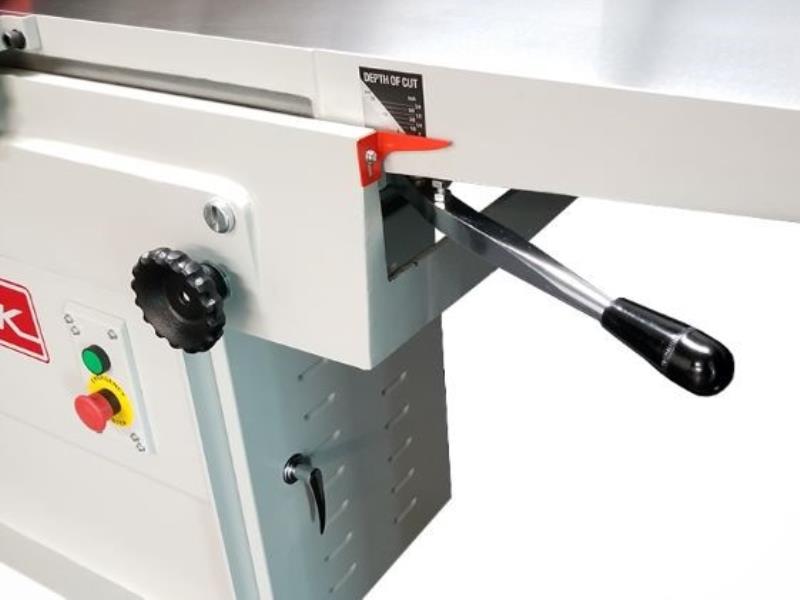

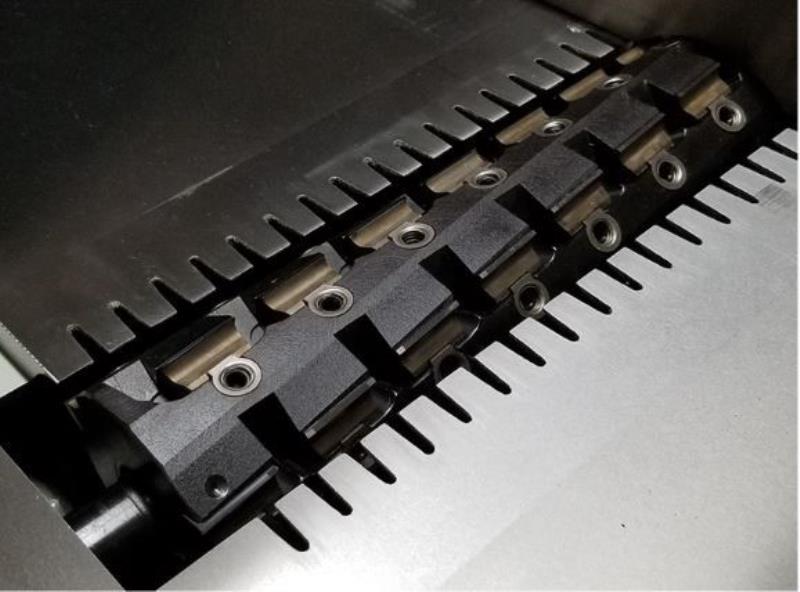

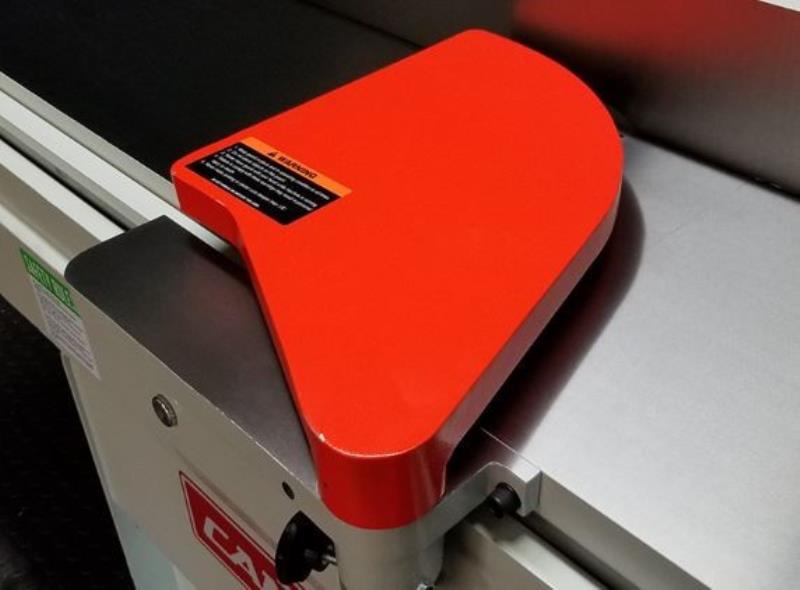

CANTEK J-168LH Surface Jointer With Spiral Carbide Insert Knife Cutterhead. General Data: -- 16" Width nominal cap., 7.5 HP belt drive head @ 5,000 RPM; 3/4" max depth capacity. Equipped with: -- 4-3/32" Dia., Quiet Spiral cutterhead with 30 x 12 x 1.5 mm two-sided insert carbide knives; 3/4" rabbeting capacity. -- 16" x 96" Cast iron table, tilting fence w/positive stops @ 45, 90 & 135; accurate fence guide.Complete with: -- Push button controls with CSA magnetic switch: Spring-loaded swing-away cutter head guard. -- Graduated scale for hand adjustment; Table raising and lowering by a convenient lever with locking knob to prevent accidental table movement. Features: -- Parallelogram design enables the table to travel in the same arc as the cutting circle; Rack and pinion smooth fence adjustment; 4" dia. dust collection pipe; -- For 460/3/60 electrics add approx. ...$150.00.Overall dimensions/Weight: 97" x 40" x 37". Net weight: 990 Lbs. Ship dimensions: 100" x 29" x 38.5". Shipping weight: 1220 Lbs.
10HP Main Motor; 3PH, 230V/460V Dual Voltage Max Planing Width: 400mm (16") True Jointer bed positioning versus parallelogram style machines that have multiple pivoting wear points Max Cutting Depth: 19mm (3/4") Cutterhead Diameter: 100mm (4") Cutterhead: 5,200 RPM, 4 row helical head with (2) sided 30 x 12 x 2.5 ...more
