Description
Description

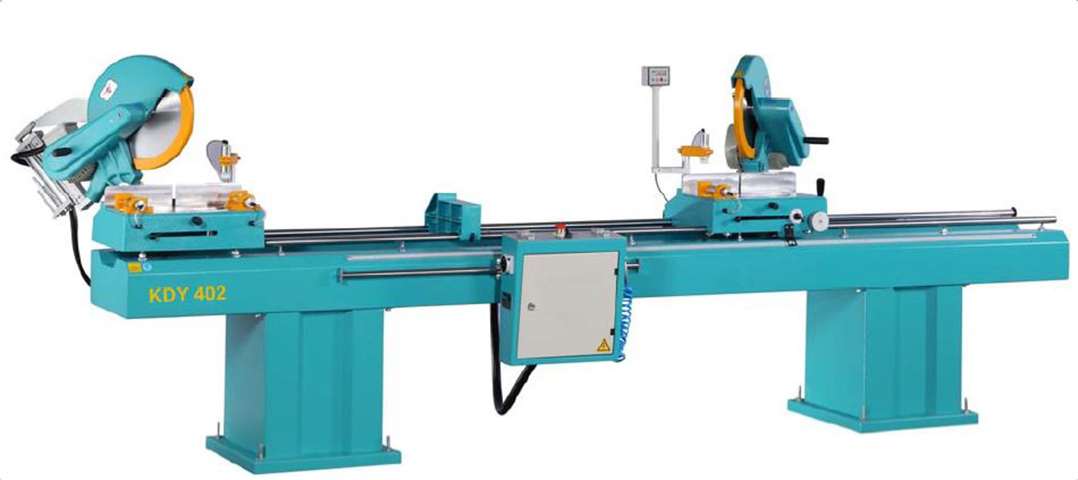

Aslan 16″ Semi-Automatic Double Miter Non-Ferrous Aluminum Saw with Digital Display, KDY-402
Inventory # 8226
Model: KDY-402
Specifications:
Max. Profile Height: 4.92″
Max. Profile Width: 7.8″
Max. Cut Length: 136″
Min. Cut Length: 20.87″
Cutting Angles: 15°, 22.5°, 30°, 45°, 0°
Saw Blade Diameter: 15 3/4″
Saw Blade Bore Diameter: 1.18″ – 1.26″
Saw Blade Rotation: 3,000 RPM
Motor Rotation: 3,000 RPM
Motor: 6 HP / 220v / 3ph
Standard Features:
(1) pair of saw backs installed on the machine
For cutting vinyl and aluminum profiles
Saw blade movement is hydro-pneumatically controlled for smooth cutting of aluminum
Adjustable cutting speed
Can cut profiles at fixed angles 0° (straight cut), 15°, 22.5°, 30°, and 45° with a locking system
Can cut profiles at all other angles with manual setting
The left head is fixed, the right head is movable manually
Easy and fast manual control of the right cutting head for the required size
Hydro-pneumatic shock system for aluminum cutting
Mister/cooling system for cutting aluminum
Equipped with a digital length reader
Safety guards for saw blade protection
Double push-button cutting operation for operator safety
Mechanical Specifications:
Dimensions: 161″ x 35″ x 67″ H
Weight: approx. 1,400 lbs.
FOB Factory – Contact us for Availability
