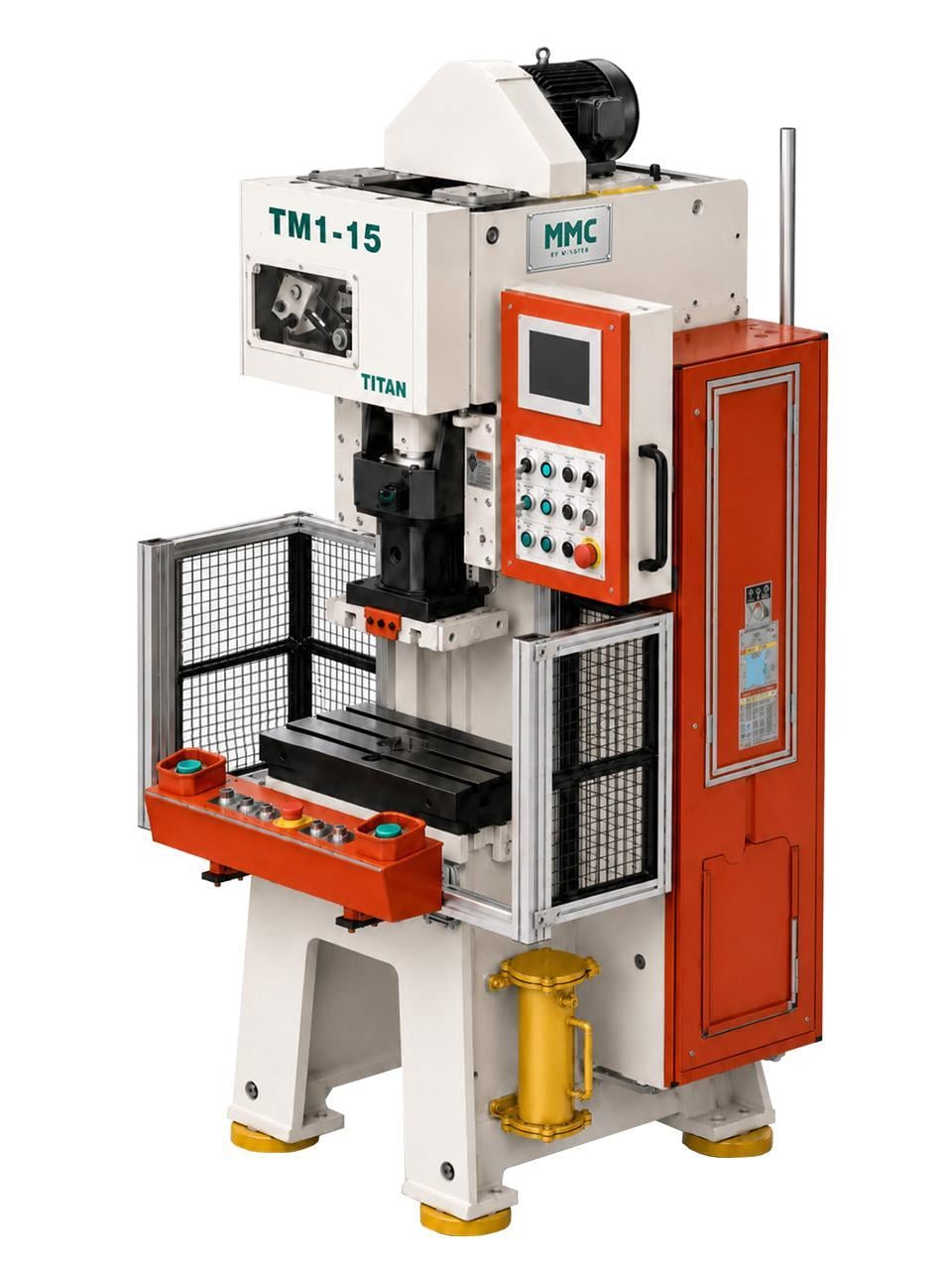

For Sale by Nidec Press & Automation
Description
Tonnage / Capacity 15 Metric Tons 16.5 US Tons
Stroke Length 80 mm 3.14 in
Speed 90-180 SPM
Area of Slide R-L x F-B 360 x 220 mm 14.17 x 8.66 in
Area of Bolster R-L x F-B 650 x 310 mm 25.59 x 12.20 in
Shutheight, Maximum (SDAU) 220 mm, on Bolster 8.66 in, on Bolster
Shutheight Adjustment 50 mm 1.96 in
Equipped With
STANDARD FEATURES
· Frame
o Machined for Strain Links (Tonnage Monitor)
o Drilled Provision for Knock Out Mechanism
o Able to Accept Air Cushions
o Pre-Drilled and Tapped to Accept Light Curtain
· Drive Train features a low inertia design with the gears running in a totally enclosed oil reservoir
· High-Performance Wet Clutch and Brake Air Actuated Combination Clutch and Brake
· Automatic Grease Lubrication System
· Powered Die Height Adjustment & Electronic Die Height Indicator
· Air Counterbalance System
· Automatic Oil Lubrication System for Air Counterbalance Cylinders
· Hydraulic Overload Protection
· Die Safety Block
· Vibration Isolation Mounts
· Die Area Lights (2)
· PC3 Clutch/Brake & Electrical Control System
o Programmable Limit Switch (8)
o Die Protection (8)
o 30 Job Storage memory
OPTIONAL
Built-in Tonnage Monitor
Light Curtains
Servo Feeds
Custom Bolster Machining
Quick Die Change
Automation Systems
Automatic Shutheight
Automatic Counterbalance
