Description

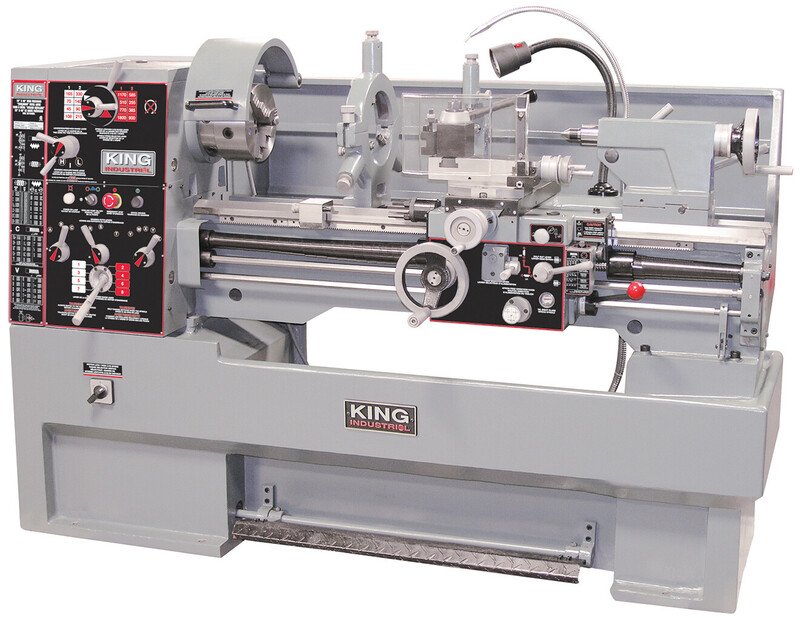

SKU: 61068 Model: KC-1640ML/KM-055 Condition: New General Specifications: Horsepower: 4 hp Distance Between Centres: 40" " Made In: CHINA Dimensions: 51.25 (H) x 33.50 (W) x 76.38 (L) inches Additional Description: Swing Over Bed: 16" Swing Over Cross Slide: 10" Swing Over Gap: 22" Width of Bed: 10" Spindle Bore Diameter: 2" Taper in Spindle Bore: MT #6 Range of Spindle Speeds: 16 (45-1,800 RPM) Number and Range of Inch Threads: 45 (2-72 TPI) Number and Range of Metric Threads:39 (0.2 - 14 mm) Number and Range of Modular Pitches: 18 (0.3 - 3.5 MP) Number and Range of Diametrical Pitches: 21 (8 - 44 DP) Longitudinal Feed Range: 0.002" - 0.067" Transversal Feed Range: 0.0011" - 0.038" Tailstock Center Taper/Travel: MT #4, 4-3/4"
GMC 16″ x 40″ Heavy Duty Precision Gap Bed Lathe, GML-1640HD, Inventory # 4031, Model: GML-1640HD, Max. Swing Over Bed: 16-1/16″, Max. Length of Workpiece: 40″, Max. Swing Over Cross Slide: 10 1/4″, Max. Swing in Gap: 23 1/4″, Width of Bed: 10 1/4″, Effective Length in Gap to ...more
Swing Over Bed 16" Distance Between Centers 40" s Coolant Work Light 2 Axis Accurite Digital Readout System Steady Rest 6 Jaw Chuck Rear Splash Guard Foot Pedal Brake.
New GMC 16 x 40" Heavy Duty Precision Gap Bed Lathe w/ DRO GML-1640HD, ISO 9001 certified, Large spindle bore 2-1/16, Heavy Duty spindle D1-6, One-piece solid cast iron machine base, Heavy Duty guideway width 10-1/4, Heavy Duty main motor 6 HP, 16 spindle speeds from 45-1,800 rpm, speeds: ...more
