Dia: 156.00
Long: 720.00
Stock # 5991428
For Sale by Machinery & Equipment Co
Surplus Record Dealer Since 1969
Dominic Piazza
415-64...> Show Seller's Phone Number 415-649-9611 Let the seller know you found their listing on Surplus Record!
Description

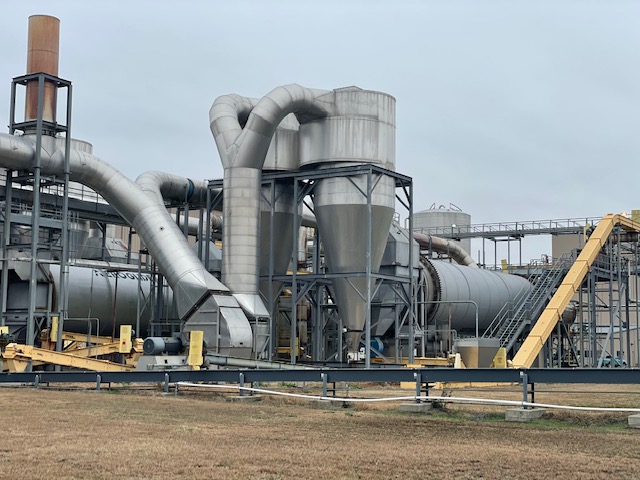

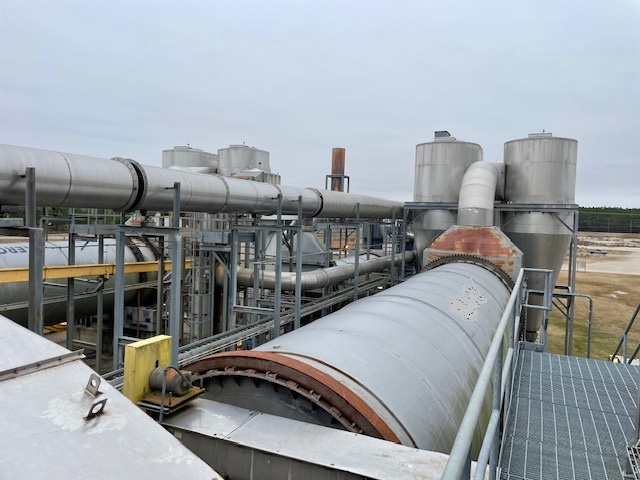

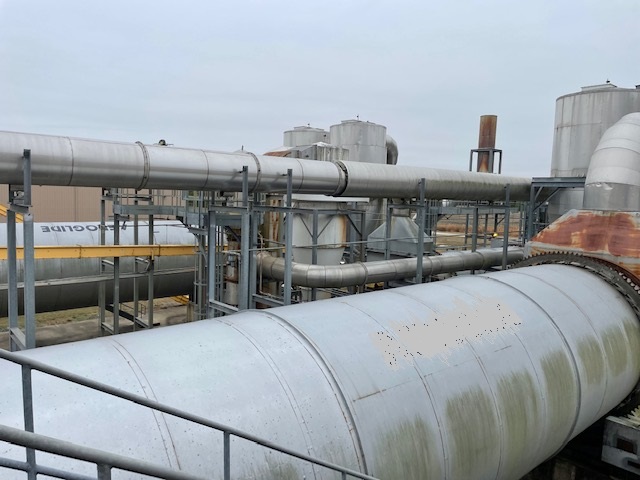

Complete stainless steel rotary drying system composed of dual (2) 13 X 60 stainless steel triple-pass rotary drum dryers. System includes trunnions and drives, controls, motors, 70 million btu natural gas burners with max thermal output of 42.200.000 kj/h, discharge cyclone, multi-clones, fans with motors, stack, all relating ducting and steel structure. Rotary dryers can be fired with natural gas or propane. Main cyclone at discharge of dryer has 3.66m diameter, secondary multicyclones (8/dryer) are 1.07m diameter each, stack is 37m above grade, volumetric airflow rated 30.68 cubic meter/second. Equipment plant drawings, manuals, blueprints, rigging and freight estimates available by request.
Measurements: 13 X 60
Materials of Construction: Stainless Steel
Basis: As Is, Where Is
Heat Source: Natural gas burners
Measurements: 13 X 60
Materials of Construction: Stainless Steel
Basis: As Is, Where Is
Heat Source: Natural gas burners
