Description
Description

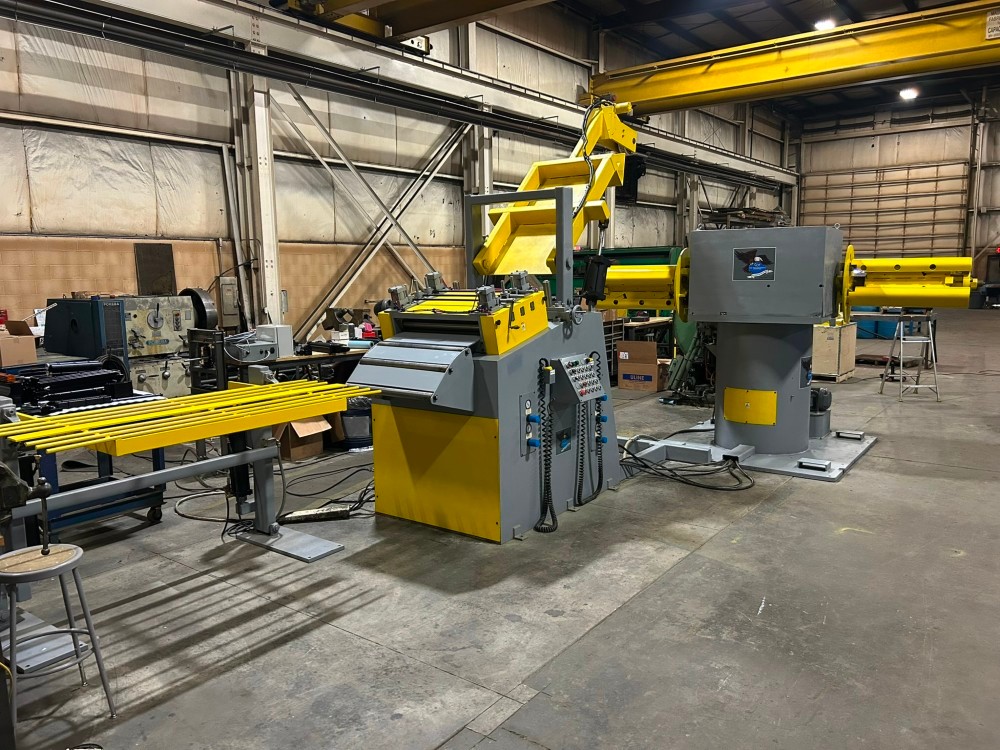

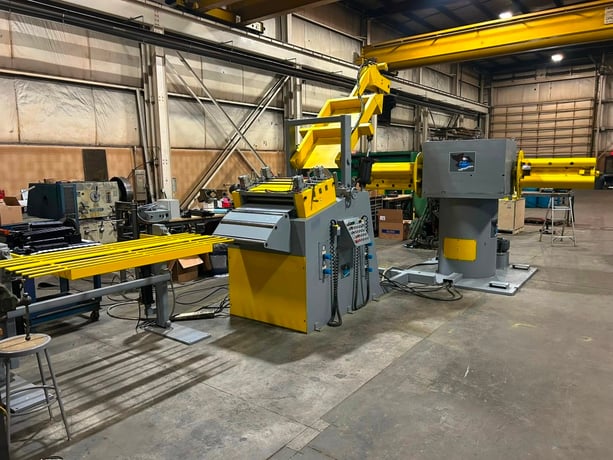

Coe 30″ x 0.090″ x 15,000 Lbs Coil Servo Feed Line (Certified Reconditioned)
Element Stock No. 20438
Standard Specifications
Maximum Coil Capacity: 15,000 lbs
Maximum Coil Width: 30”
Material Thickness at Full Width: 0.090” @ 30” Wide
Maximum Material Thickness: 0.125” @ 18” Wide
Material: Mild Steel Only – 40 KSI Maximum Yield
Feed Direction: Right to Left
Power: 480V, 3-Phase, 60 Hz
Serial Number: 11470
Consisting of the following:
Coe Double-End Coil Reel Uncoiler Model No. CPR-DE-PO-15030
Coe Powered Coil Straightener Model No. CPPS-PO-300-30
Coe Press Equipment Single-Side Thread Table Model No. CPTT-30-10

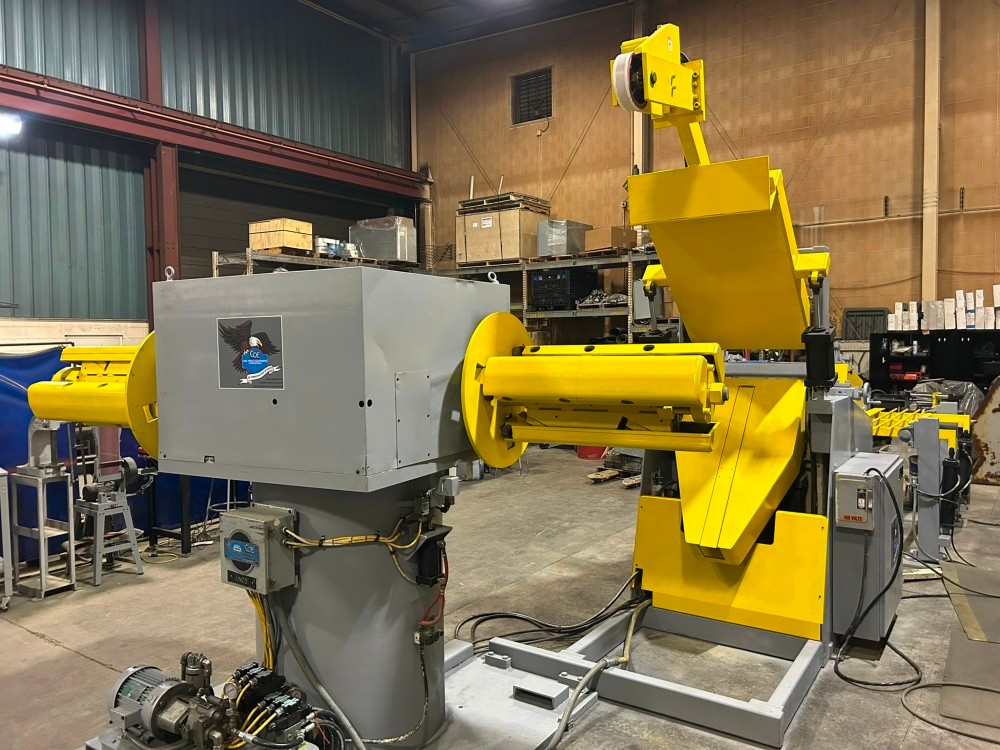

Coe Press Equipment Double-End Coil Reel Uncoiler Model No. CPR-DE-PO-15030
- Double-End Reel
- 20-24” I.D. Expansion Range
- 72” Maximum Coil O.D.
- Three-Leaf Mandrel Pad Assembly
- Hydraulic Coil Reel Mandrel Expansion
- Hydraulic Mandrel Indexing with Locking Pin
- Hydraulic Threading Drive
- Air Brake with Pressure Regulators
- Jog, Forward and Reverse
- Remote Reel Jog Pendant Jog with Coil Cord
- Hydraulic Controls Solenoid Operated
- Manual-Bypass Foot Pedal Release for Mandrel Location
- Full Set of Adjustable Coil Reel Keeper Arms

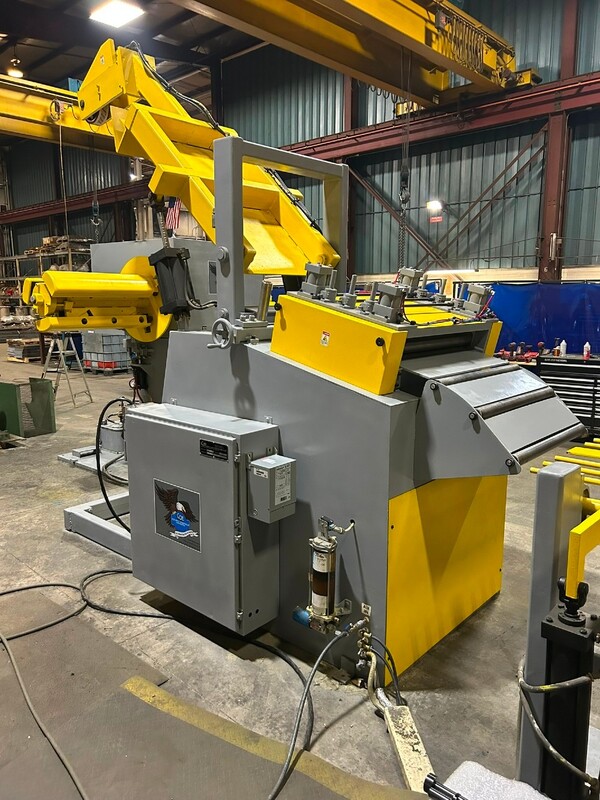

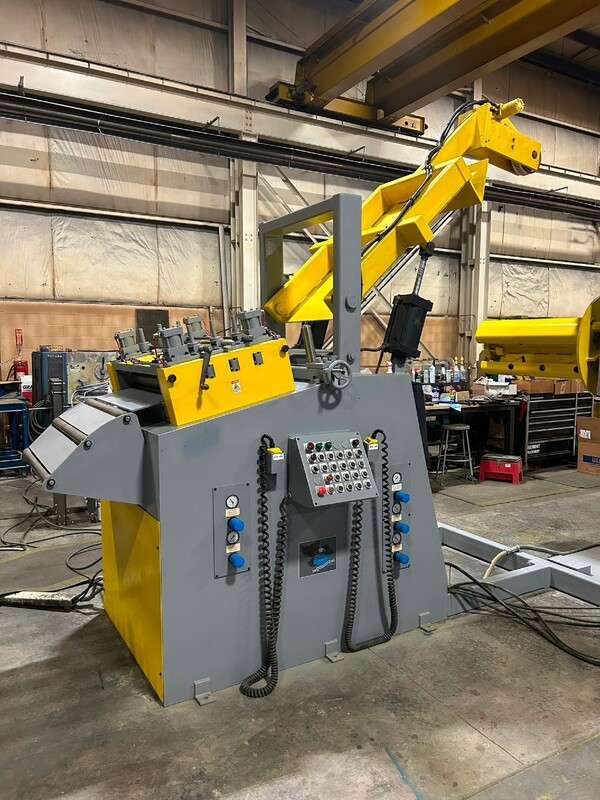

Coe Press Equipment Powered Coil Straightener Model No. CPPS-PO-300-30
- 4-Position Stock Peeler
- Peeler, Threader, Hold Down Station with Motorized End Wheel
- Entry Stock Width Edge Guides with Self-Centering
- Entry and Exit Powered Coil Straightener Pinch Rolls
- Air-Operated Entry Upper Powered Coil Straightener Pinch Roll Adjustment
- Air-Operated Exit Upper Powered Coil Straightener Pinch Roll Adjustment
- Seven (7) Coil Straightening Rolls, 3” O.D.
- 3-Over-4 Configuration with First/Last Lower Rolls Doubling as Pinch Rolls
- Individual Upper Coil Straightening Roll Adjustments
- Automatic Grease Lube System
- Hand Held Pendant Control for Jog Forward and Reverse

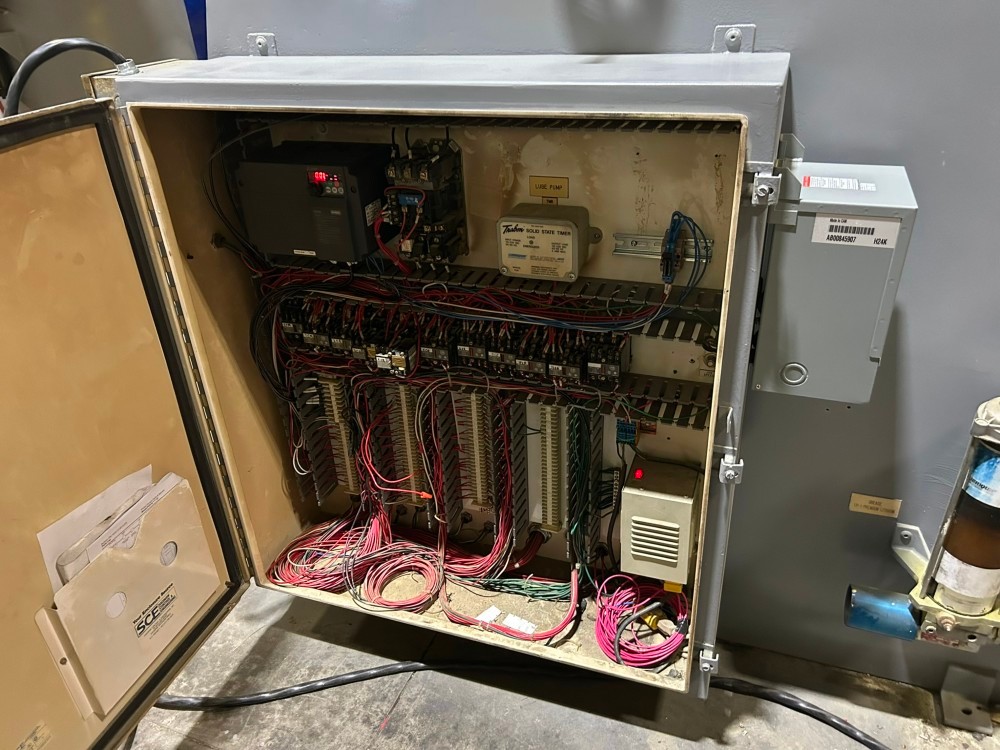

- New 10 HP VFD Variable Speed Powered Coil Straightener Drive System
- Exit Cascade Loop Support Rollers
- New Ultrasonic Loop Control System

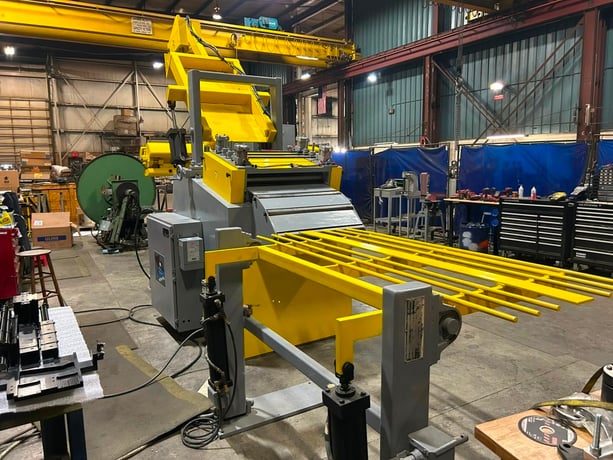

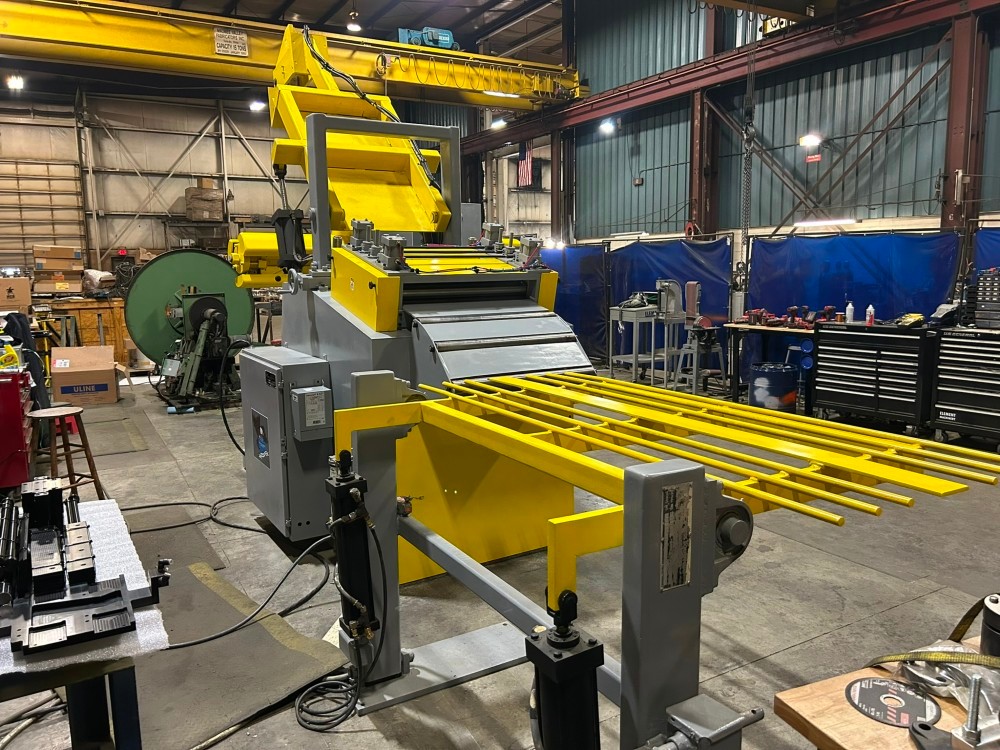

Coe Press Equipment Single-Side Thread Table Model No. CPTT-30-10
- 10ft Long Threading Table
- 30” Wide, Single Side
- Bomb Bay Style
- Air Raise and Lower with Limit Switch Integration
OPTIONAL New Coe Press Equipment Servo Roll Feed No. CPRF-S330
- 3” O.D. Upper and Lower Servo Feed Rolls
- Air-Operated Upper Servo Feed Roll Lift and Pilot Release
- Adjustable Stock Width Edge Guides with Self-Centering
- Entry Cascade Loop Support Rollers
- Free-Standing Cabinet Base with Adjustable Pass Line Height
- Passline: TBD (Standard 49” Pass Height +/- 5”)
- AC Servo Roll Feed Drive and Controls
- Job Memory Micro Adjust Batch Count
- New Free-Standing Sloped Front Servo Roll Feed Control Console
- Remote Pendant Control for Jog Forward and Reverse
- Feed Angle: 180 and 240 Degrees
- Maximum Speed: 367 FPM
- Maximum Acceleration: 55 FPS
- PRICE: $50,000
