Manufacturer: Mcgraw-Edison
kVA: 15000.0 - 16800.0 - 20000.0 - 28000.0
Primary Voltage: 69000
Secondary Voltage: 13800
Stock # T-6348
1 / 4
Click to zoom in
1 / 4
For Sale by Belyea Company Inc
Surplus Record Dealer Since 1926
Location: Easton, PA
Contact Shepard Belyea
Phone Number: 610...> Show Phone Number 610-515-8775
Let the seller know you found their listing on Surplus Record!
Description

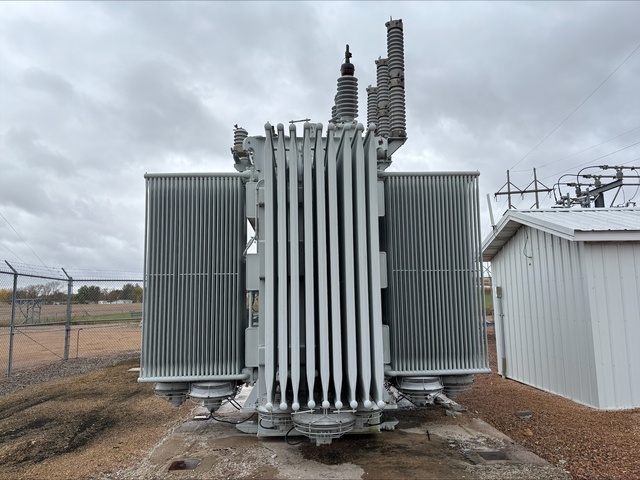

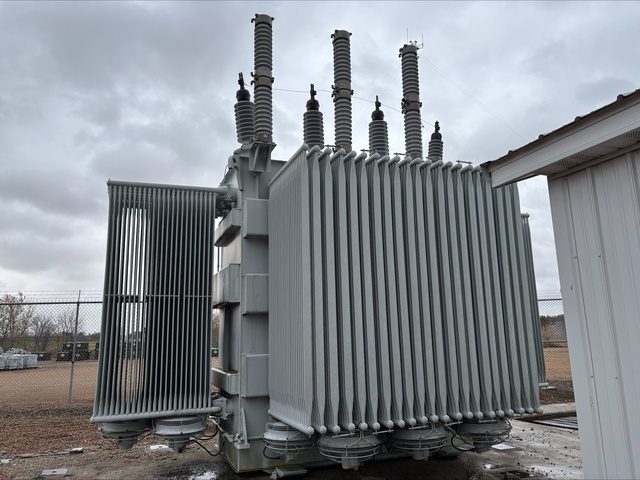

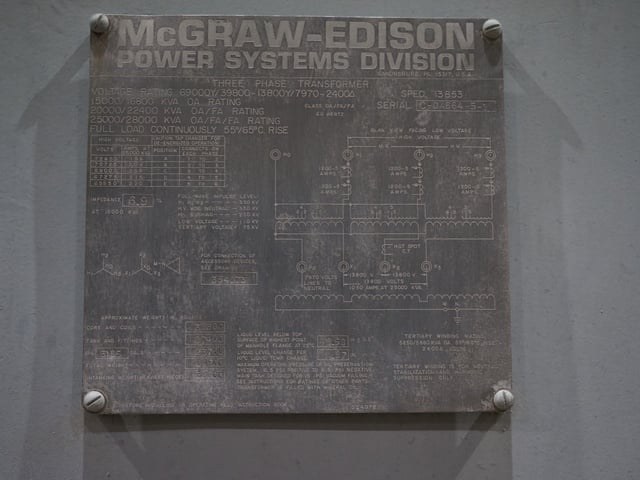

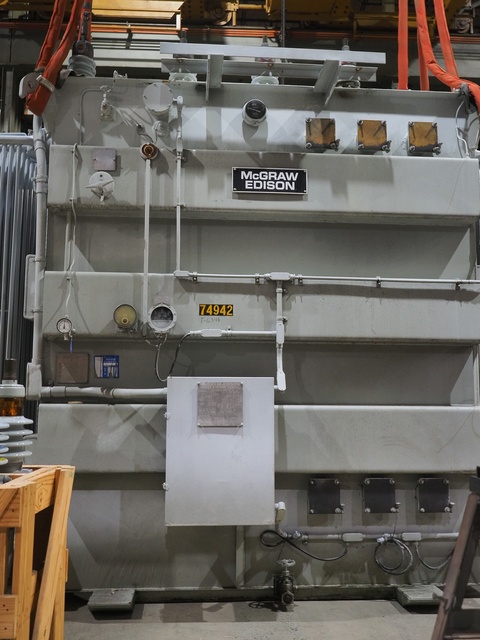

ONE (1) 15/20/25/28 MVA McGraw-Edison Substation Transformer, with 2400D Tertiary
3 Ph, 60HZ, 55/65 Degree C Rise, 6.9% Impedance, OA/FA/FA,
Top-Top bushings, Vacuum Pressure Relay, Pressure Relief Valve,
Liquid Temp Gauge, Liquid Level Gauge, D&S Valve
HV: 69000 Wye HV BIL: 350kV
LV: 13800 Wye LV BIL: 110kV
Tertiary: 2400 Delta (5250/5880kVA) BIL: 75kV
TAPS: 72450-70725-69000-67275-65550
*Tertiary winding is for neutral stabilization and harmonic suppression only.
TOTAL WEIGHT: 89900 LBS
CORE & COILS: 38800 LBS
TANK & FITTS: 27400 LBS
LIQUID : 23700 LBS (3155 GAL)
Get Your Price from Belyea Company Inc!
Buyers Who Viewed This Listing Also Viewed:
15000/16800/20000/22400/25000/28000 kVA, 120000/69280 GRDY Primary, 13800 Delta Secondary, ABB Substation
Category: 60 Hz Three Phase Transformers
Seller: Belyea Company Inc
Location: Easton, PA
Mfr: Delta
Year: 1989
JVT-3754:, ONE (1) 15/16.8/20/22.4/25/28 MVA ABB GENERATOR STEP-UP TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS OA/FA/FA, 55/65 DEGREE C RISE, 7.24% IMPEDANCE, COPPER, WINDINGS, 3 X 1200:5 HV MRCT'S, HV TOP, LV SIDE, HV ARRESTERS (ASEA, XAP123AU-96), LV ARRESTERS (GE 9L11R6A014) AUX. TRANSFORMER (15 KVA, 240/480-120/240 ...more
15000/16800/20000/21000 KVA 115000 Delta Primary, 13200Y/7620 Secondary, 3 phase, Substation Transformer, Ready To Ship
Category: 60 Hz Three Phase Transformers
Seller: Maddox Industrial Transformer
Location: Greenville, SC
15/16.8/20/22.4 MVA 34650 Delta Primary, 12470Y/7200 Secondary, H.K. Porter, OA/FA (2 available)
Category: 60 Hz Three Phase Transformers
Seller: Power Asset Recovery Corp
Location: N. Canton, OH
Mfr: H.k. Porter
JUST ADDED!

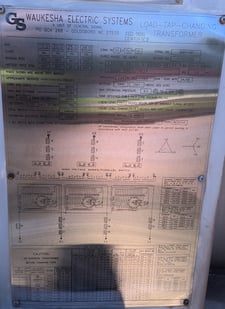

15000/28000 KVA 138000 Delta X 69000 Delta Primary, 13200Grdy/7621 Secondary, Waukesha
