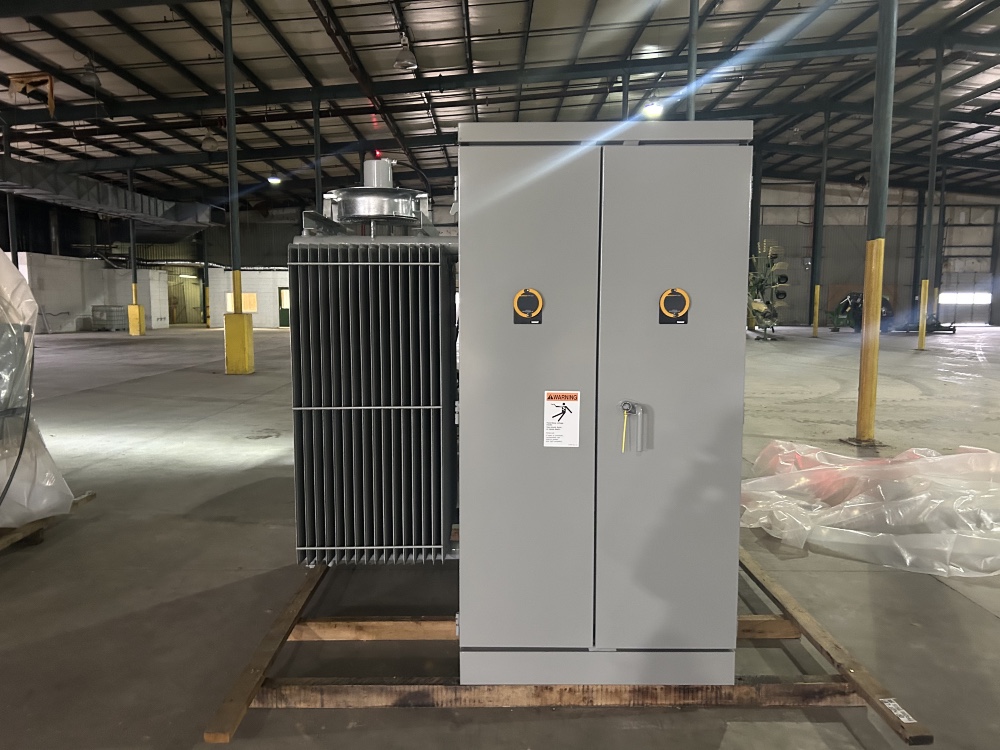

1500 KVA 12470 Primary, 480Y/277 Secondary, Hitachi / Hitachi Substation Oil Transformer, never energized, (6 available)

FOR SALE – ABB Liquid-Filled Power Transformers | 1,500 KVA | Never Energized
Quantity: 6+ units available (lot or individual)
SPECIFICATIONS:
• Manufacturer: ABB
• Type: Liquid-filled (oil)
• KVA Rating: 1,500
• Primary Voltage: 12,470
• Secondary Voltage: 480Y/277V
• Condition: New, never energized
• Storage: Indoors, climate controlled
CONDITION DETAILS:
These units were purchased for a project that did not move forward. They have never been energized and remain in original as-delivered condition. Nameplates are intact. Original documentation available upon request. Oil has never been tested or topped off as units have not been placed in service.

Description:

Type : Liquid-Filled Secondary Unit Substation

Fluid : Natural Ester Fluid

Core : Grain Oriented Steel

Phase : 3 Phase

Frequency : 60 Hz

Average Winding Rise : 55/65 °C

Ambient Temperature : 30 °C

High Voltage : 12470 Delta

High Voltage Taps : +2 -2 2.5%

High Voltage BIL : 95kV BIL

Low Voltage : 480Y/277

Low Voltage BIL : 30kV BIL

Low Voltage Neutral : X0 bushing with ground strap

Color : Light Gray ANSI 61 (Munsell 8.3G 6.1/0.54)

261219 TRANSFORMERS, LOW AND MEDIUM

Customer Specification :

VOLTAGE SECOND Rev 0, 10/21/2024

Features (included in price):

TANK & CABINET

▪ Dry Nitrogen Blanket

▪ Mild Steel 16 panel - center line 59 inch x 3

▪ Fans (controlled by liquid temperature)

▪ 120V Control Power Provided By Customer

▪ Fan Control Switch - Manual ON/AUTO/OFF

▪ LV throat

▪ Space heater with thermostat in HV compartment: Rated for 240V (500W), to be operated at 120V (250W)

▪ Bottom Feed Cable Entry HV

▪ Non-Standard Control Box 5M Mild Steel 24 x 26 x 12 (ANSI 61)

▪ HAWK I.R. Infrared Window (1 HV) x 2

▪ Hex-head cabinet handle bolt

▪ HV full-height 18" deep ATC with hinged door

GROUNDING

▪ 2-hole ground pads (1 in HV and 1 in LV)

▪ Core Grounding - Accessible through handhole

BUSHINGS

▪ 2-hole spade HV terminals (live front) x 3

▪ HV porcelain bushings (live front) x 3

▪ Sidewall Mounted HV (Segment-2)

▪ Sidewall Mounted LV (Segment-4)

▪ Spade Supports

▪ Copper LV bushings with integral 10-hole spades x 4

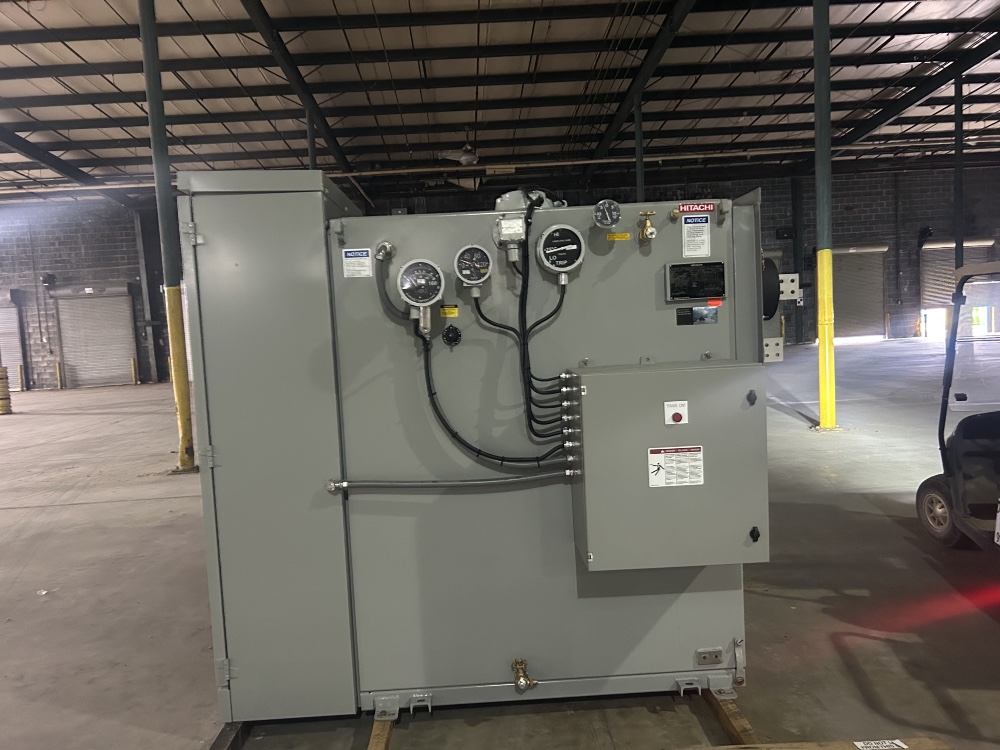

MONITORING

▪ .5" Pressure Relief Valve – Qualitrol 202-037-02 (50 SCFM at 15 PSI)

Hitachi Energy USA Inc. Page 8 of 17 3/4/2025

NOTICE-- This document may contain confidential and privileged information for the sole use of the intended recipient. If you are not the intended recipient you may not review, copy

or distribute this message. Any review or distribution by others is strictly prohibited. If you are not the intended recipient, please contact the sender immediately and delete all copies.Neg #: QT-23-00924012

▪ 5G Impact Indicator

▪ Bleeder for pressure vacuum gauge 5271A91H01

▪ Thermometer w 2 alarm contacts 1 NO & 1 NC each Qualitrol 167-288-01 p/n 30C6637H01

▪ Schrader valve

▪ Rapid Rise Relay Q 910-010-33: 28C4454H01

▪ Large pressure relief semaphore/flag Qualitrol 207-60-3 p/n 3A23737H01

▪ Liquid Level Gauge Qualitrol 032-35E p/n 2B10777H01 with one high and one low contact both are 1 NO & 1 NC

▪ Large pressure relief device w 1NO & 1NC Contact 208-60F p/n 2B12401H01

▪ Winding Temperature Indicator with 4 NO contacts Qualitrol 120-005-03 p/n 29C4805H01

▪ Pressure Relief Valve

▪ Standard Pressure vacuum gage w/purge Qualitrol 50-35E p/n 2B13527H01

▪ Liquid Level Gauge Q 030-017-02 4965B50H01

FITTINGS

▪ Drain valve and sampler

▪ Upper Filter Press Connection (1.0" Fill Coupling)

▪ Upper Globe Valve

MARKINGS

▪ UL Listed on Nameplate

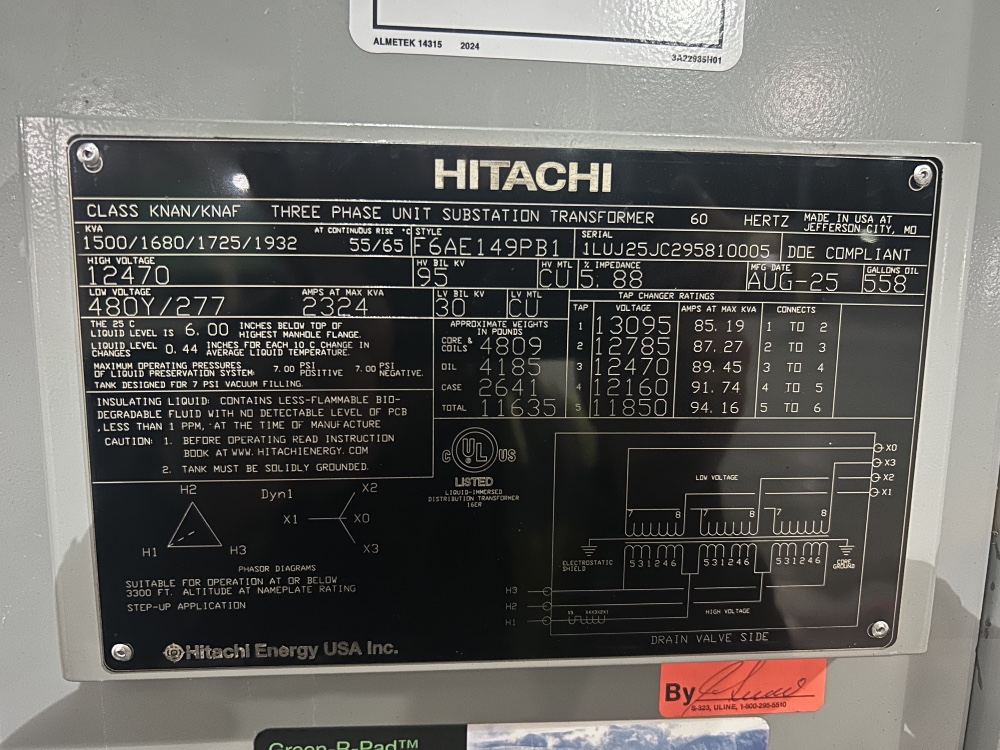

▪ Stainless steel nameplate

▪ "Non-PCB" on Nameplate

OTHER

▪ Alarm contacts SIS wired to control box

▪ Copper Electrostatic Shield

▪ DOE 2016 Efficiency Requirements Do Not Apply: Step-up transformer

TESTS

▪ (J918DGA) DGA Before Shipment

▪ Six-hour leak test

METERS

▪ External Secondary CT 4000:5 C400 Multi-ratio x 3

Contains less-flammable biodegradable natural ester fluid with no detectable level of PCB, less than 1PPM,

at the time of manufacture.

For information about natural ester fluid, go to:

http://www.cargill.com/products/industrial/dielectric-ester-fluids/envirotemp
