Description

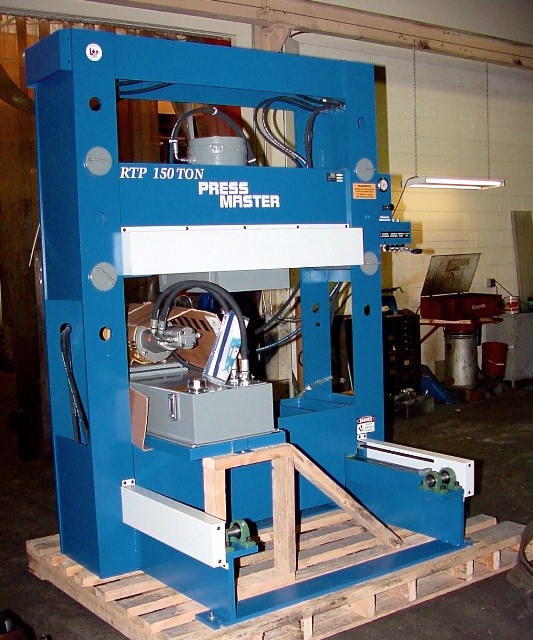

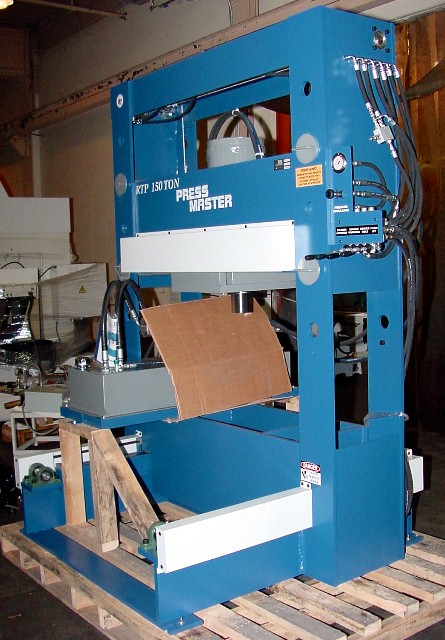

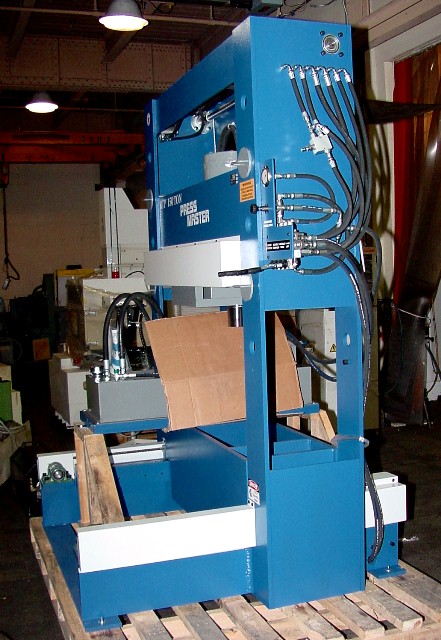

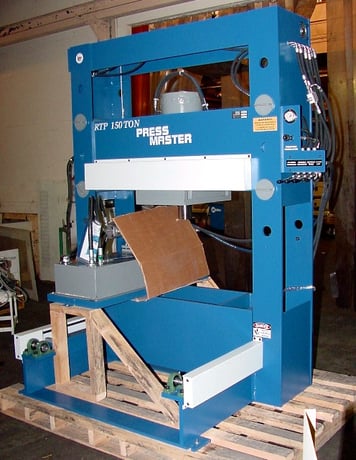

150 TON PRESSMASTER ROLL-IN TABLE
FULL 4 AXIS POWERED STRAIGHTENING PRESS
RATED CAPACITY .............................. 150 TONS
WIDTH BETWEEN UPRIGHTS ...................... 48"
DEPTH BETWEEN POSTS ........ ................ 16-3/4"
MAXIMUM RAM TO TABLE ........................ 26-3/4"
STROKE ...................................... 16"
TABLE TRAVEL ................................ 23.25"
FLOOR TO TABLE TOP .......................... 25-3/4"
CYLINDER BORE SIZE .......................... 11"
PRESSING SPEED .............................. 6 INCH/MIN
ADVANCE SPEED ............................... 29 INCH/MIN
RETURN SPEED ................................″3 INCH/MIN
WEIGHT ...................................... 6,500#
DIMENSIONS
LENGTH ..................................... 71"
WIDTH ...................................... 88"
HEIGHT ..................................... 100"
MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE
(OTHER VOLTAGES AVAILABLE)
STANDARD FEATURES:
- POWERED MOVABLE TABLE FOR EASE OF LOADING… POSITIONING WORKPIECE UNDER CYLINDER
- POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER
- HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF HEAD ASSEMBLY
CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE
- RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK

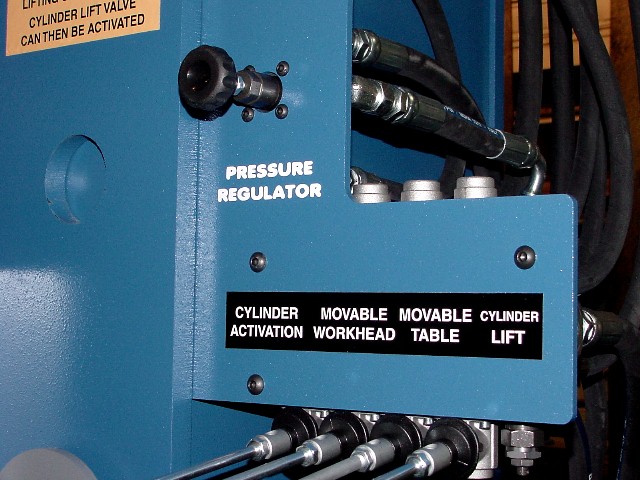

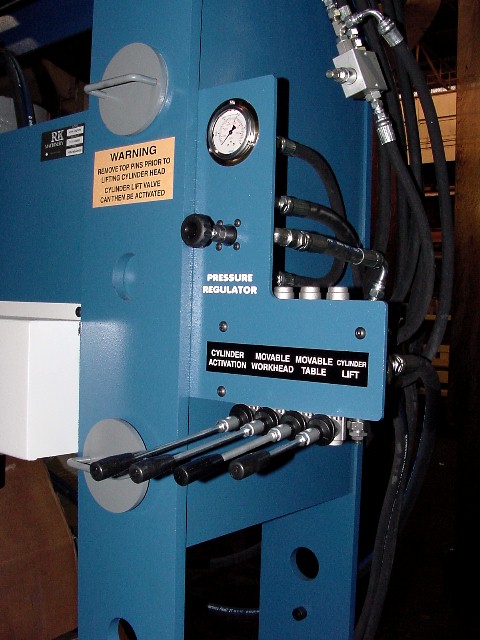

- PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE
AVAILABLE OPTIONS:
- SET OF V-BLOCKS ............................ $1,200
- STOP / START… EMERGENCY STOP .............. $1,000
- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..............(PER SIDE).. $… 750
- FOOT PEDAL ................................. $4,500
- PRESS PLATE ................................ $3,000
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $9,500
- HANDHELD REMOTE CONTROL .................... $9,500
