150 Ton, Press Master #HFP-150MWH, 16" stroke, 10" bore, moveable work head, #149945

Manufacturer: Press Master
Model: HFP-150MWH
Ton: 150
Stroke: 16.00
Stock # 149945

For Sale by Machinery Values Inc

Gold Level Dealer
Surplus Record Dealer Since 2011

Description

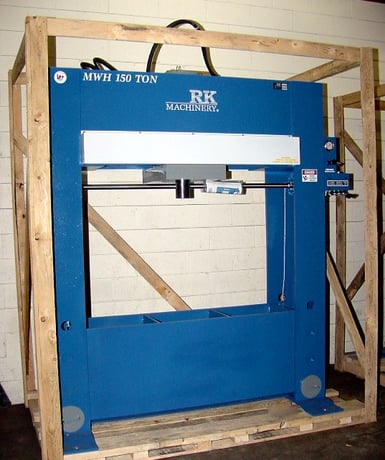

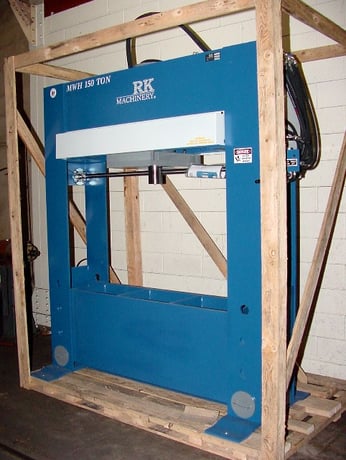

150 TON PRESSMASTER H-FRAME HYD. PRESS
MODEL HFP-150 MWH
EXTRA WIDE w/MOVABLE WORKHEAD
RATED CAPACITY, TONNAGE........................... 150
STROKE............................................ 16"
BORE.............................................. 11"
RAM SPEED PRESS .................................. 6 IPM
ADVANCE ................................ 29 IPM
RETURN .................................″3 IPM
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)............ 60"
DISTANCE BETWEEN POSTS (FRONT TO BACK)............ 15"
RAM TRAVEL LEFT TO RIGHT .........................″1-1/4"
MAXIMUM DISTANCE FROM BED TO RAM .................″4-1/2"
WEIGHT ........................................... 6,200#
SHIPPING DIMENSIONS .............................. 58"L X 96"W X 108"H
STANDARD FEATURES:
ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT PRESSING ACTION
OPEN SIDES TO FACILITATE WORK ON LONG PIECES
FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB
QUALITY BALDOR MOTOR, LOW SPEED
LOW SPEED PUMP-QUIET, DEPENDABLE OPERATION
SELF-LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT

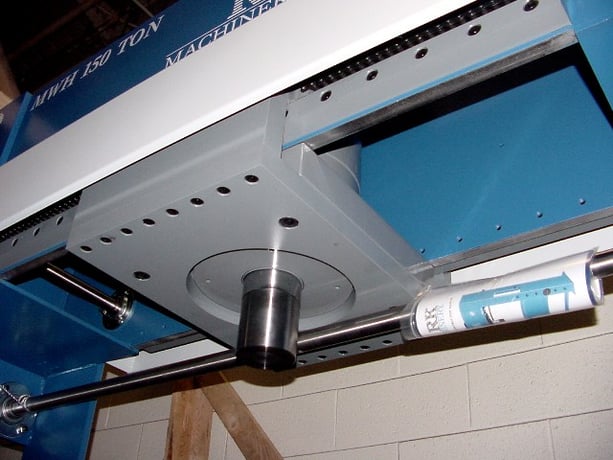

POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER
FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER
HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF TABLE

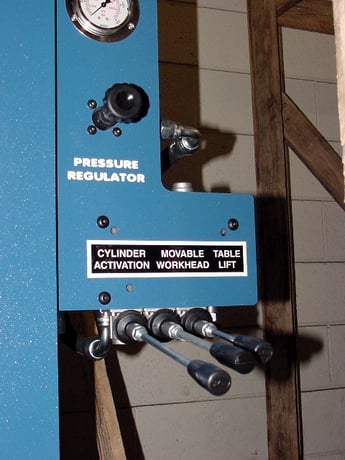

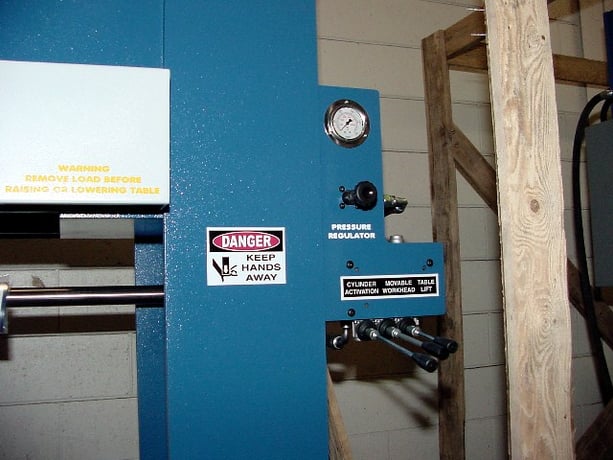

PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE
CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE
MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER
SPEED FOR THE TASK
HIGH CAPACITY 20 GAL. HYDRAULIC OIL RESERVOIR
LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES, RESULTING IN HIGHER
EFFICIENCY AND SAFER OPERATION
ALL PARTS ARE STANDARD AND READILY AVAILABLE THROUGHOUT NORTH AMERICA
FULL ONE YEAR WARRANTY.
NOT A CHEAP IMPORT.
MANUFACTURED IN CANADA WITH QUALITY US…amp; CANADIAN COMPONENTS.
AVAILABLE OPTIONS:
- V-BLOCKS ................................... $950 SET
- STOP / START…amp; EMERGENCY STOP .............. $900
- FRONT OR BACK SAFETY GUARD ................. $900 EA
- SIDE SAFETY GUARD ..............(PER SIDE).. $600
- FOOT PEDAL ................................. $3,400
- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $5,000
- 24 STROKE CYLINDER ........................ $1,400
- PRESS PLATE ................................ $2,400
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $7,600
SEE THE VIDEO ON THIS FANTASTIC NEW PRODUCT AT
