Description

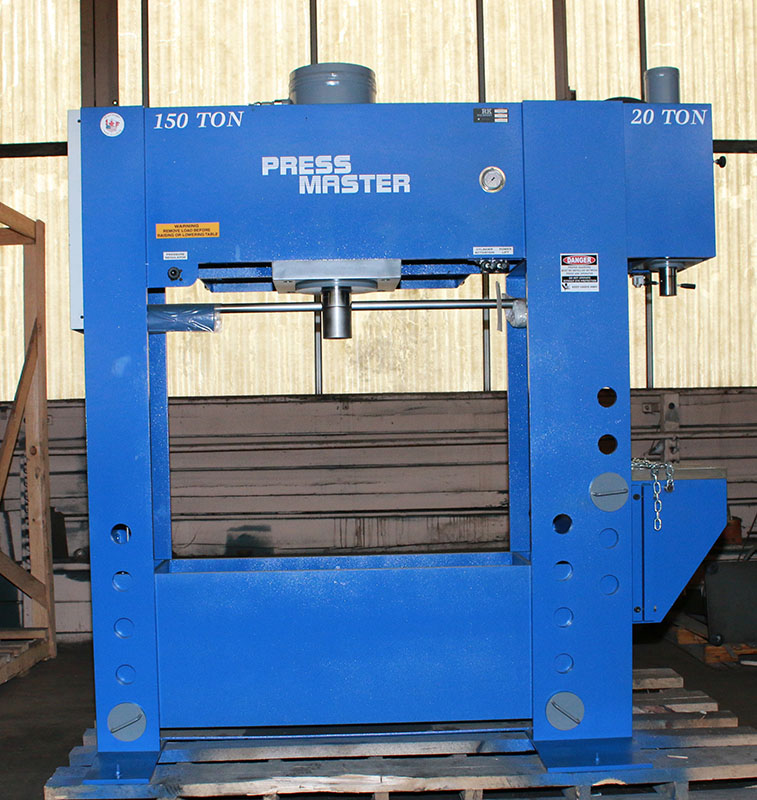

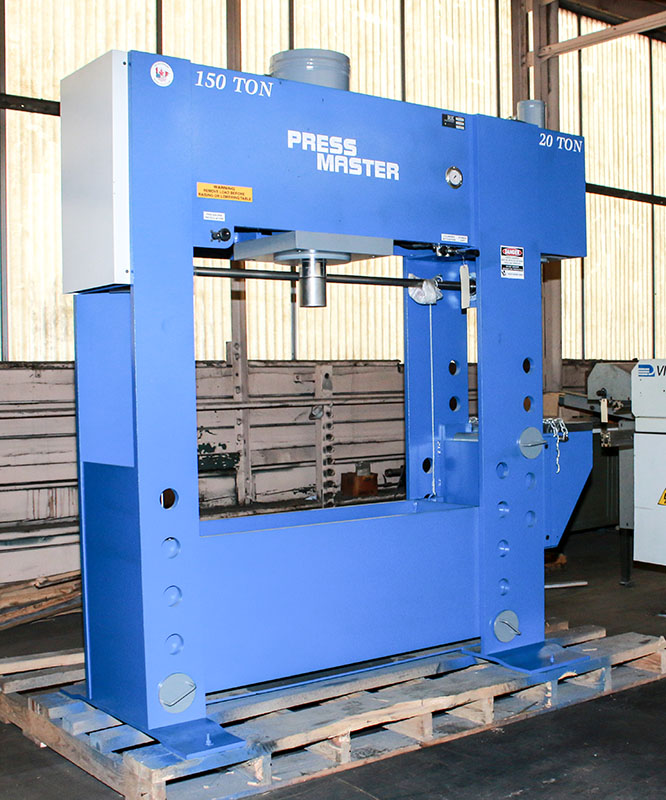

150 TON PRESSMASTER H-FRAME PRESS W/20 TON BROACH
MODEL HFBP-150/20 XWMWH… NEW
RATED CAPACITY, TONNAGE....................... 150
STROKE........................................ 16"
BORE.......................................... 10"
RAM SPEED (Inches/Minute) ADVANCE ............ 24
RAM SPEED (Inches/Minute) PRESSING ........... 6
RAM SPEED (Inches/Minute) RETURN ............. 28
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)........ 60"
DISTANCE BETWEEN POSTS (FRONT TO BACK)........ 16-1/2"
MAXIMUM DISTANCE FROM BED TO RAM .............″2"

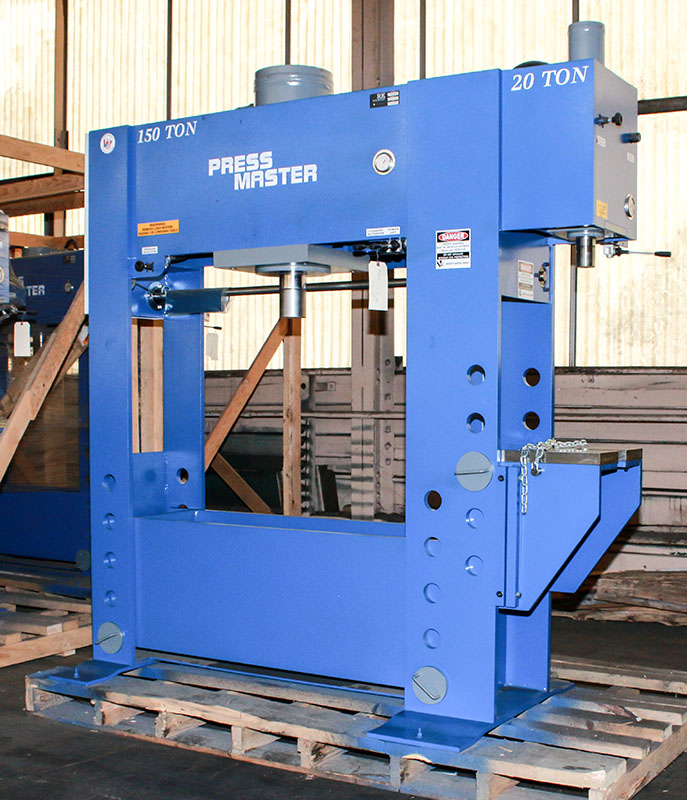

BROACHING C-FRAME SPECS:
CAPACITY ..................................... 20 TONS
STROKE ....................................... 20"
BORE ......................................... 4"
DAYLITE ......................................″6.5" MAX.
THROAT ....................................... 8"
TABLE ........................................ 16-1/2" X 13"
SPEEDS (Approach) ............................ 152 IPM
SPEEDS (Pressing) ............................… 33 IPM
SPEEDS (Return) .............................. 250 IPM
OVERALL HEIGHT ............................... 94"
OVERALL WIDTH ................................ 98"
OVERALL DEPTH ................................″8"
WEIGHT ....................................... 6,600#
MADE IN CANADA - NOT A CHEAP IMPORT
EQUIPPED WITH:
- MOVEABLE WORKHEAD.

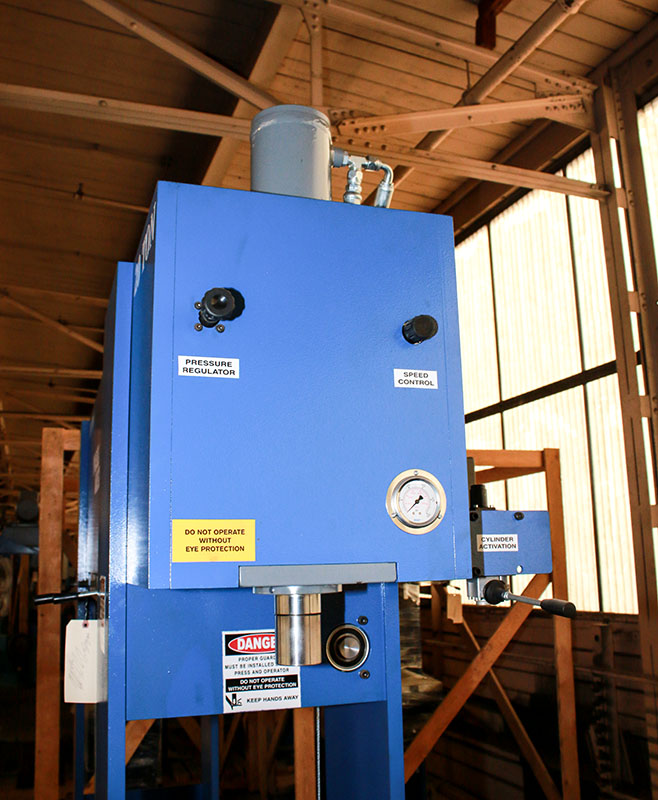

- 2 SEPARATE PRESSURE REGULATORS FOR C-FRAME AND H-FRAME
- BOTH CYLINDER ACTIVATIONS ARE FINGER TIP CONTROLLED, THE MORE THE
HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT INCREASES, ALLOWING THE
OPERATOR TO USE THE PROPER SPEED FOR THE TASK
- 2 SEPARATE PRESSURE GAUGES.
- DOUBLE-ACTION PERMITS PULLING AS WELL AS PRESSING ON 150 TON PRESS
- HYDRAULIC POWER LIFT TABLE - FOR EASY VERTICAL MOVEMENT OF TABLE.
- HEAVY DUTY STEEL STRUCTURE - ALL COMPONENTS ARE QUALITY U.S. OR CANADIAN PARTS
- TIE RODS WITH SELF LOCKING TABLE - ELIMINATES LATERAL MOVEMENT
- OPEN SIDES - FACILITATES WORK ON LONGER PIECES
- FLAT RAM NOSE - ALLOWS THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB.

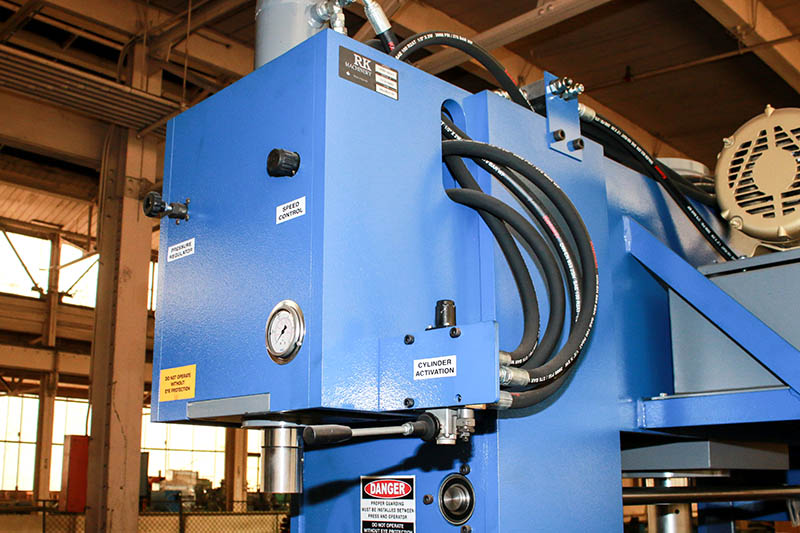

- ELECTRIC/HYDRAULIC OPERATION - PROVIDING SMOOTH AND CONSISTENT PRESSING ACTION
- BALDOR 10 HP,″ PHASE, 208/230/460 VOLT LOW SPEED MOTOR
- LOW SPEED PUMP - PROVIDES QUIET AND DEPENDABLE OPERATION
- 20 GALLON OIL RESERVOIR.
- LOW PRESSURE HYDRAULIC SYSTEM - MAINTAINS LOWER OIL TEMPERATURE, RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION.
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY AND
READILY AVAIABLE THROUGH OUT NORTH AMERICA.
- FULL ONE YEAR WARRANTY.
AVAILABLE OPTIONS:
- SET OF V-BLOCKS ............................ $1,200
- STOP / START… EMERGENCY STOP .............. $1,000
- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..............(PER SIDE).. $… 750
- FOOT PEDAL ................................. $4,500
- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $6,500
- PRESS PLATE ................................ $3,000
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $9,500
- HANDHELD REMOTE CONTROL .................... $9,500
