Description

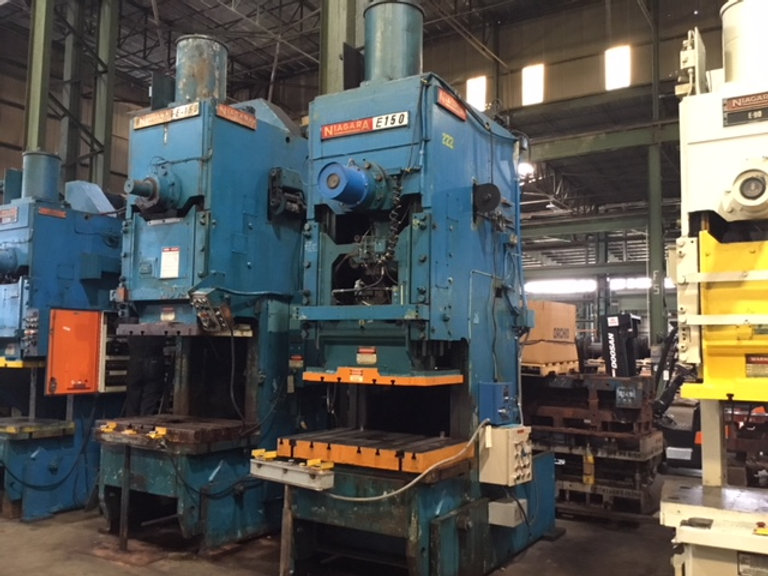

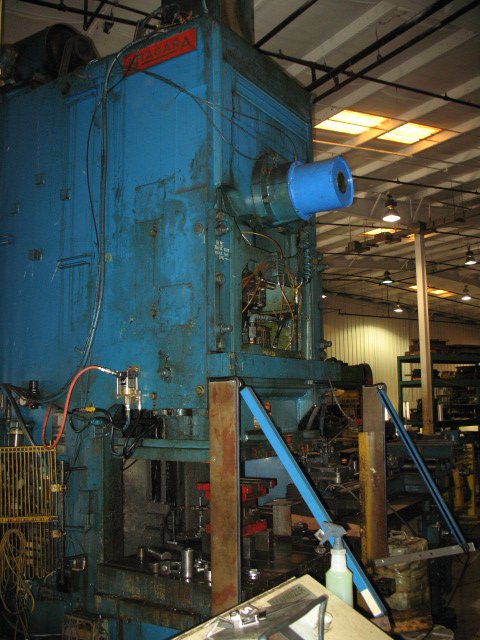

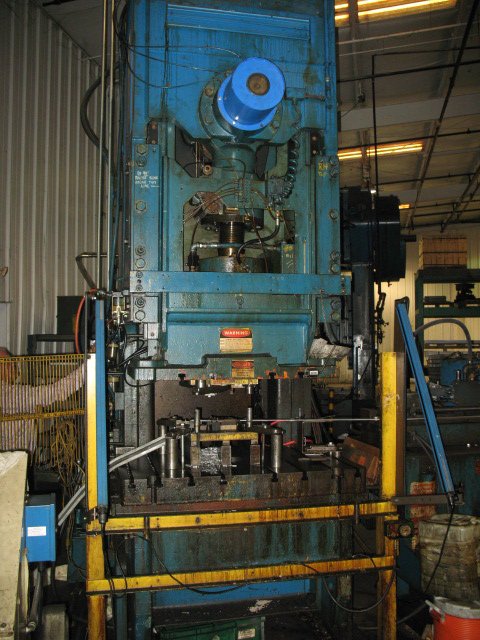

MODEL E-150
CAPACITY 150 TON
BED SIZE 50"X 30"
RAM SLIDE AREA 34" X 24"
Y- SLOTTED BOLSTER 48" X 33" X 5" THICKNESS
BOLSTER 5"
STROKE 6"
MAX RATED CAPACITY .25 ABOVE BOTTOM STROKE
SPM 35
SHUT HEIGHT 20.5"
MOTORIZED AIR RAM ADJUSTMENT 6"
FLOOR TO TOP OF BOLSTER 41"
HYDRAULIC OVERLOAD

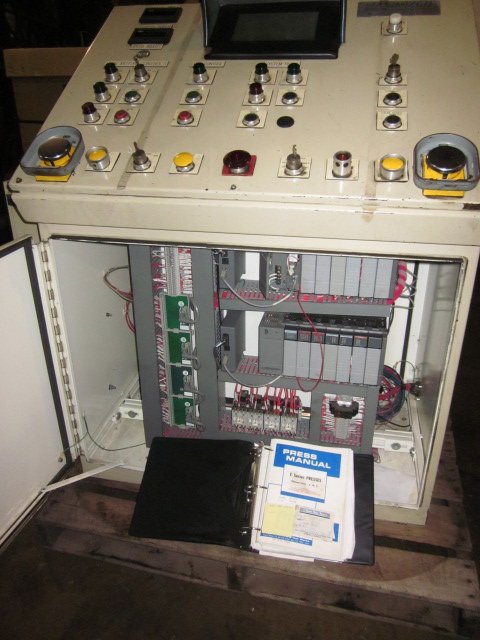

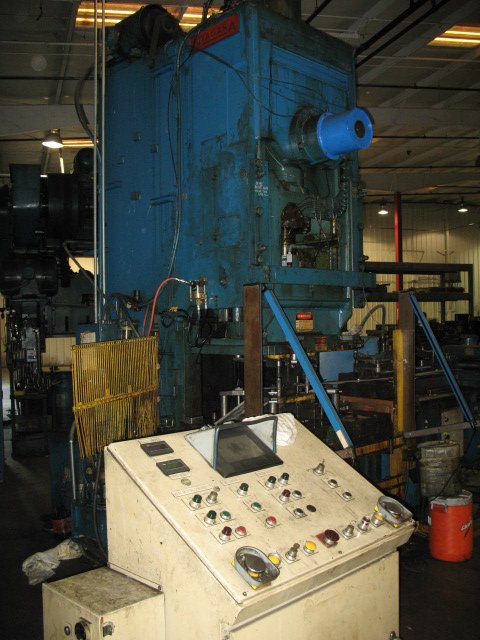

OPERATOR CONTROL STATION
NEW CIECO PP1100R RESOLVER BASED CONTROL
AIR COUNTERBALANCES
RECIRCULATING OIL
HEIGHT 175" TALL
