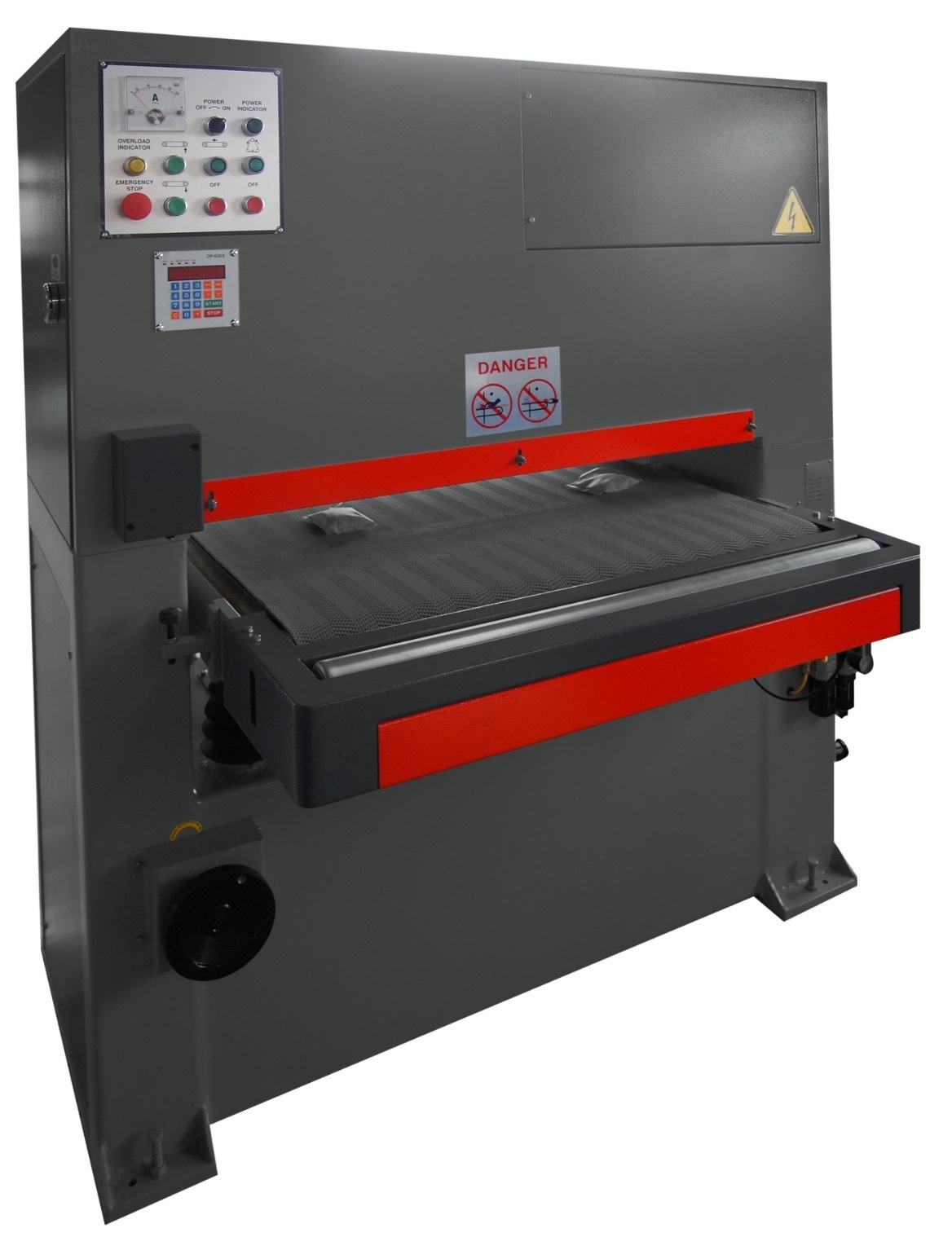

25" x 60" GMC #FP-2560, belt sander, 16-66 FPM, 31"-37" passline height, 1000 cfm, motorized table lift, warranty

Estimated monthly payment valid upon approved credit.

Request Formal Quote

Specifications: Model FP-2560T #7738
Max. Part Width 24
Abrasive Belt Size 25 x 60
Contact Roller Size 5 Dia.
Passline Height 31 37
Thickness Capacity
Min. workpiece length
Max. workpiece weight
20Ga to max. 5-1/8 Min 12, need a fixture for smaller parts 275LBS
Conveyor Drive Speeds 16-66 FPM
Infeed Conveyor Length 20
Dust Collector Capacity
Outlet of dust hood 1,100 CFM 6
Main Motor 10 HP, 230V , 3-Ph
Conveyor Motor 1 HP, 230V , 3-Ph
Table Lifting Motor 1/4 HP, 230V, 3-Ph
Amperage draw
Net Weight, approx.
Shipping weight, 45A on 220V, 25A on 440V 2,050 LBS 2,150 LBS
Machine Dimensions, LxWxH
Machine shipping dimensions, LWH 51 x 46 x 70 53 x 48 x 73
Standard Features:
Made in Taiwan
Computerized programmable material thickness control
Motorized Table Lift, with digital readout
Variable Speed Conveyor
Conveyor Forward & Reverse
Belt Safety Overtravel Switches
Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust the tracking system when running extremely out of parallel belts
4-Jackscrew Table Support
Double Infeed & Outfeed Pinch Rolls with protective guards
Conveyor Belt Tracking System
Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
Table Height Digital Readout
Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose
Air tensioning of belt for accurate tensioning & compensation of belt stretch
Quick release sanding head support for fast belt change
Dust collection hood with 4 outlet is located adjacent to abrasive head in sanding area
Emergency stops from almost any point
Noise level bellows 80 dba
Operation manual, control tags, danger signs, and warning labels in English on machine
208/230, 3-Phase, 440V/480V ,3phase is optional
One year Industrial Warranty for parts
We strongly recommend to use good dust collector for our Finish Pro, otherwise, the warranty will be void.
