Description

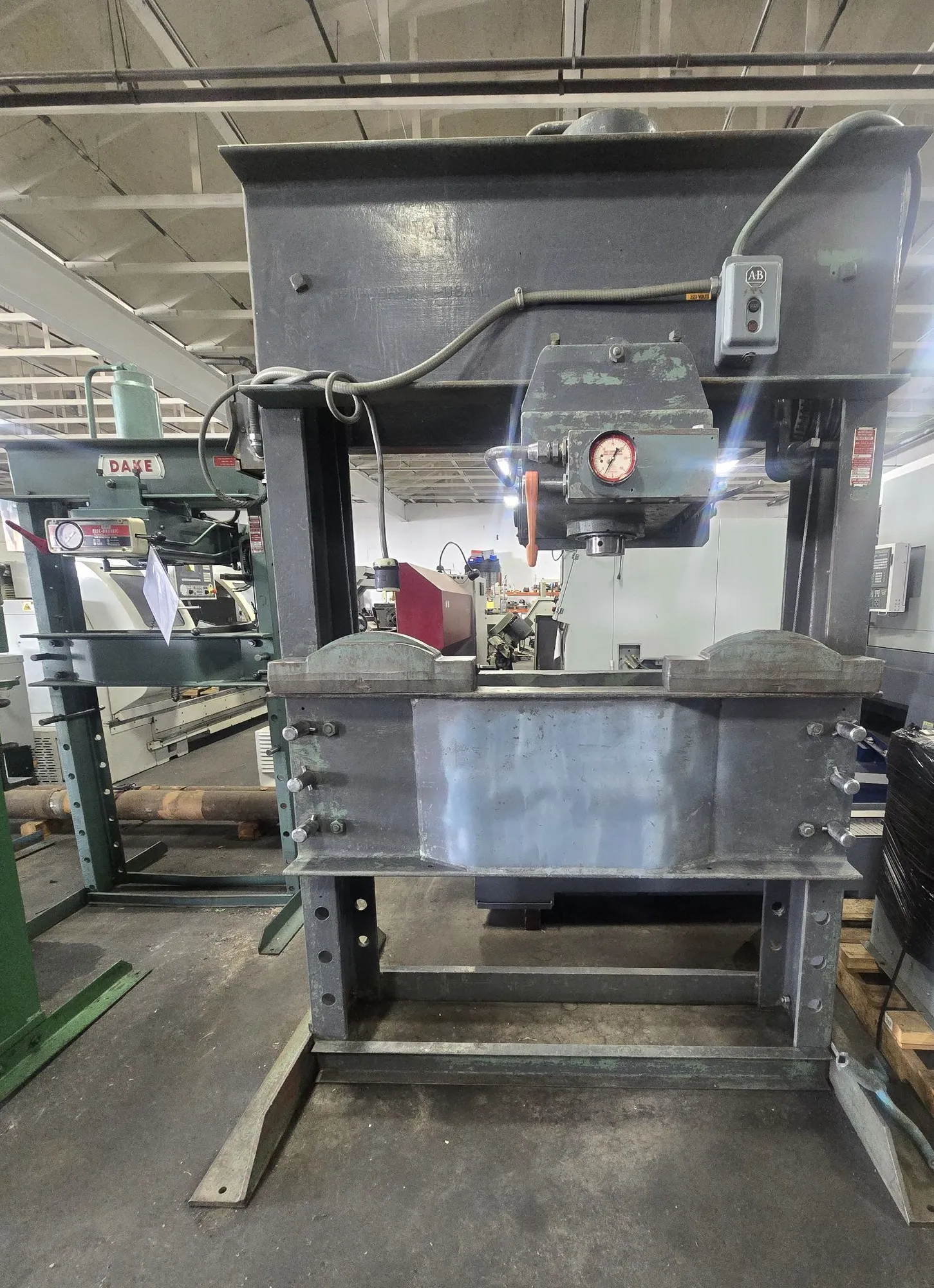

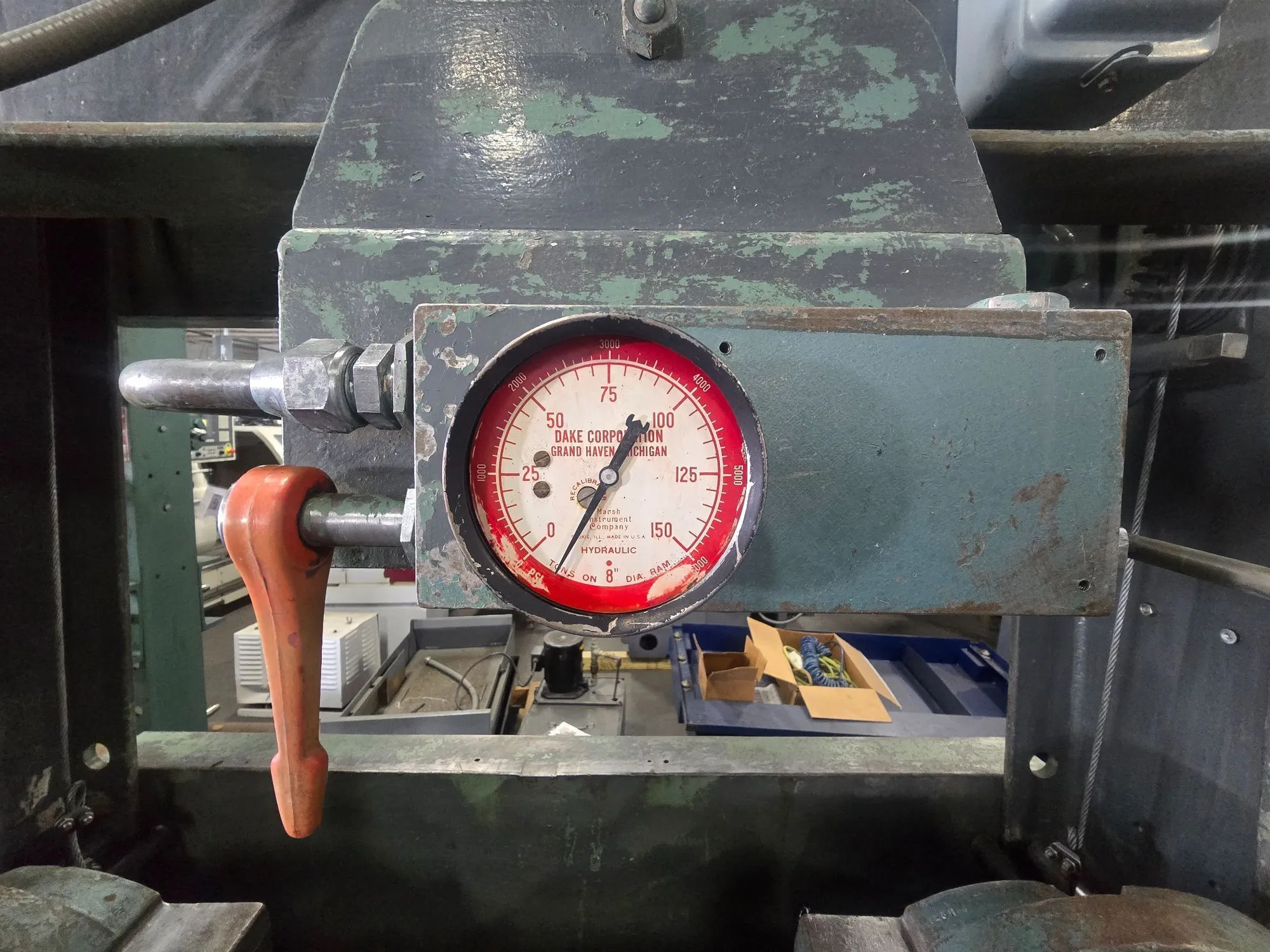

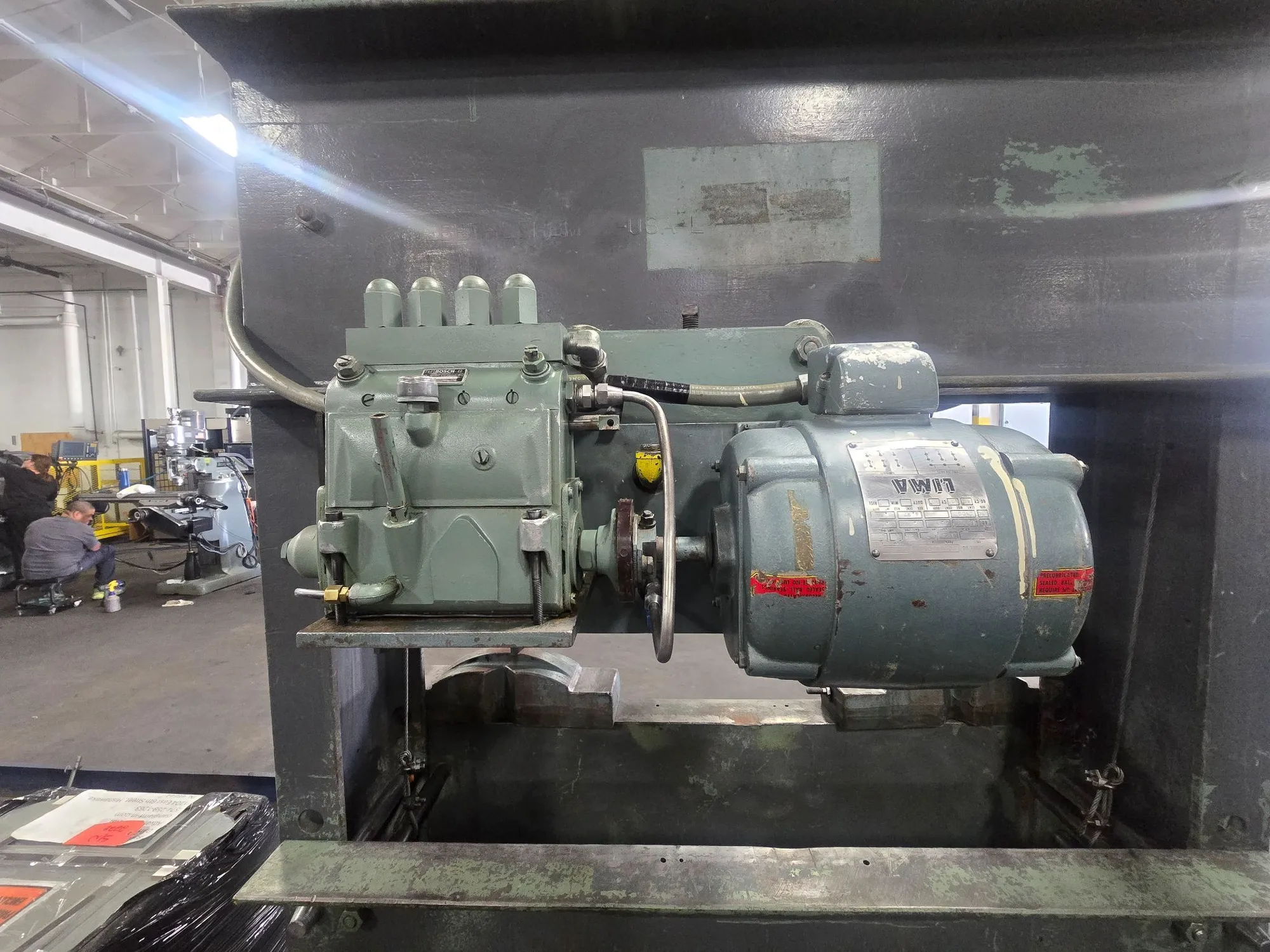

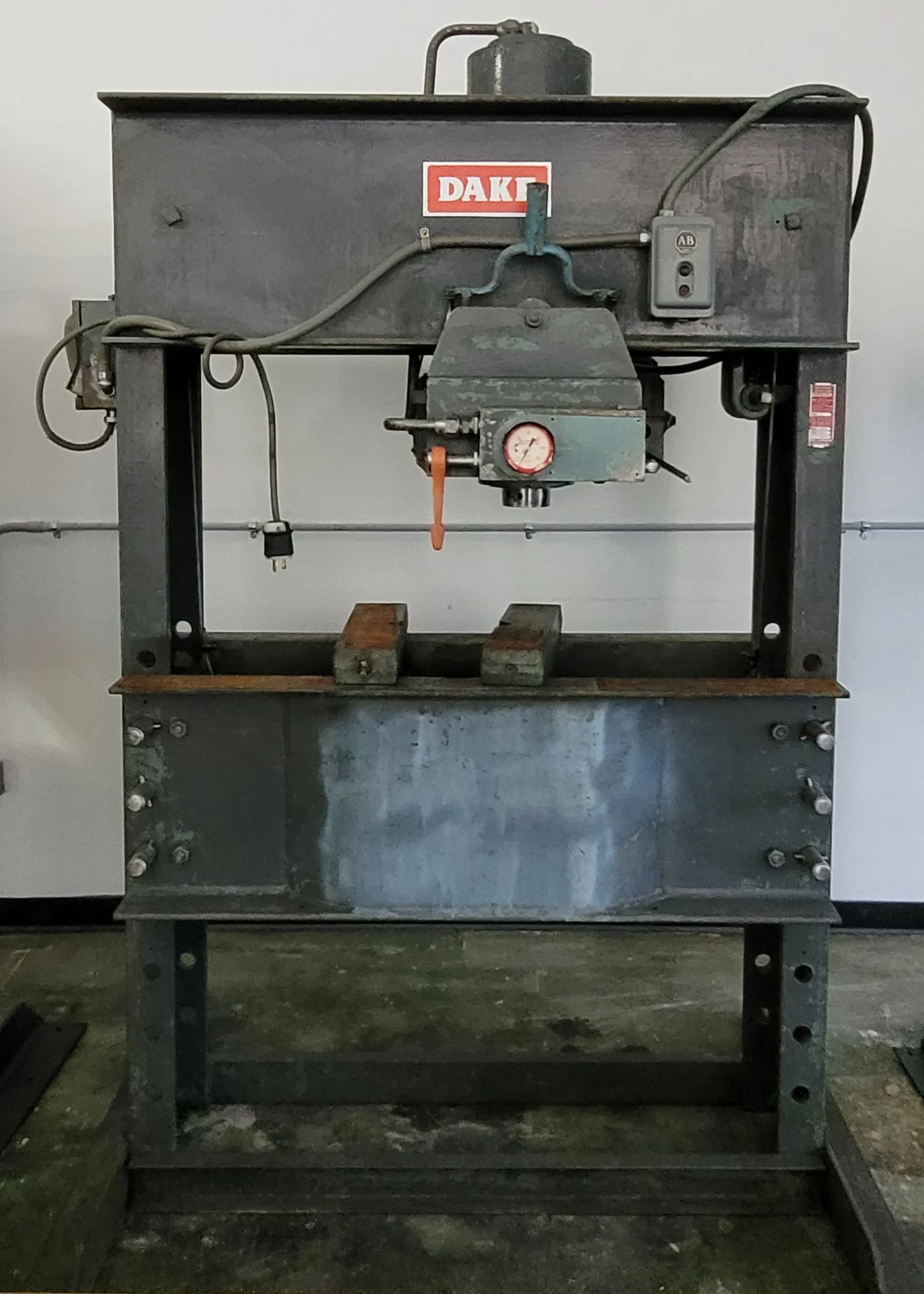

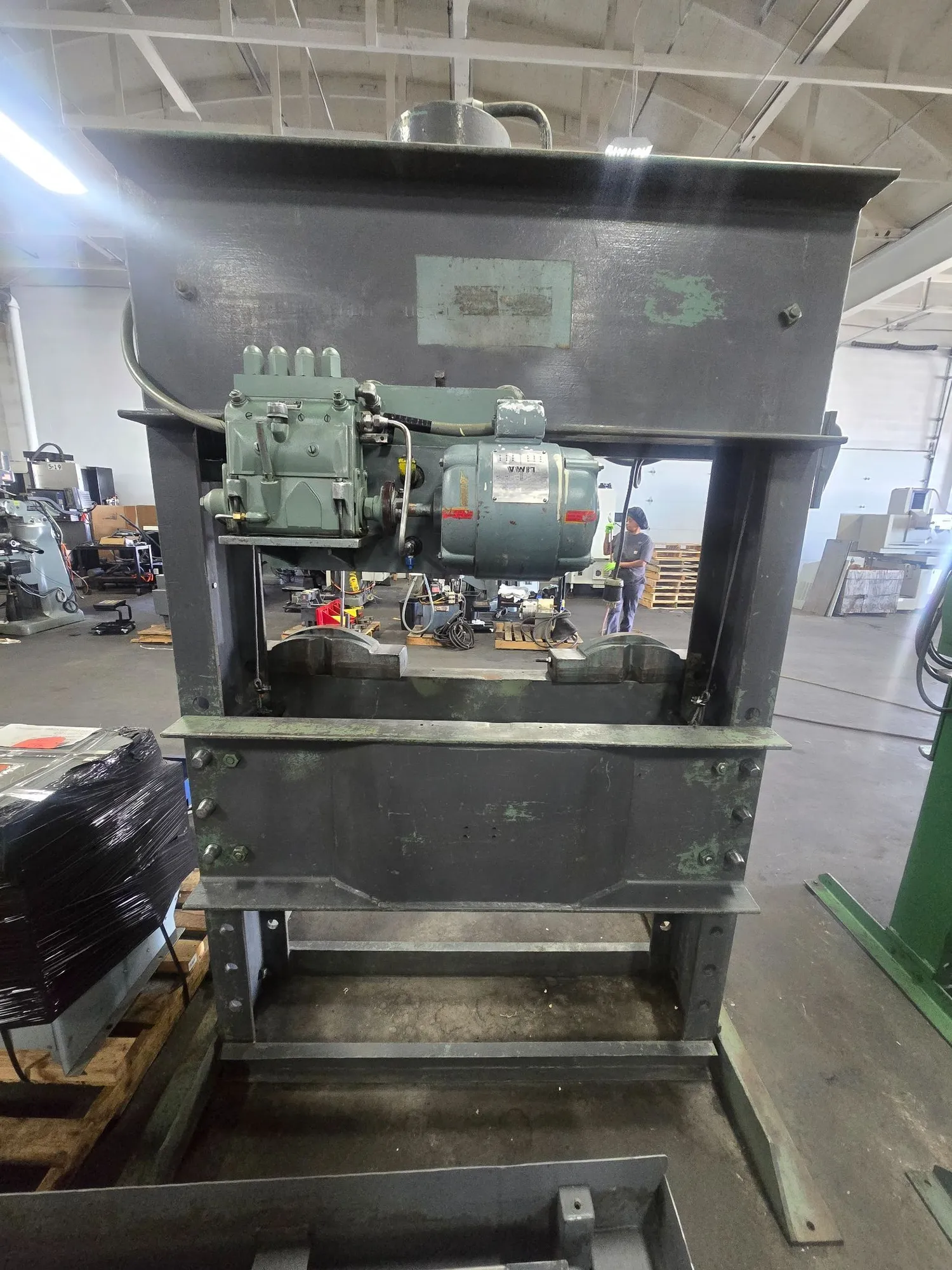

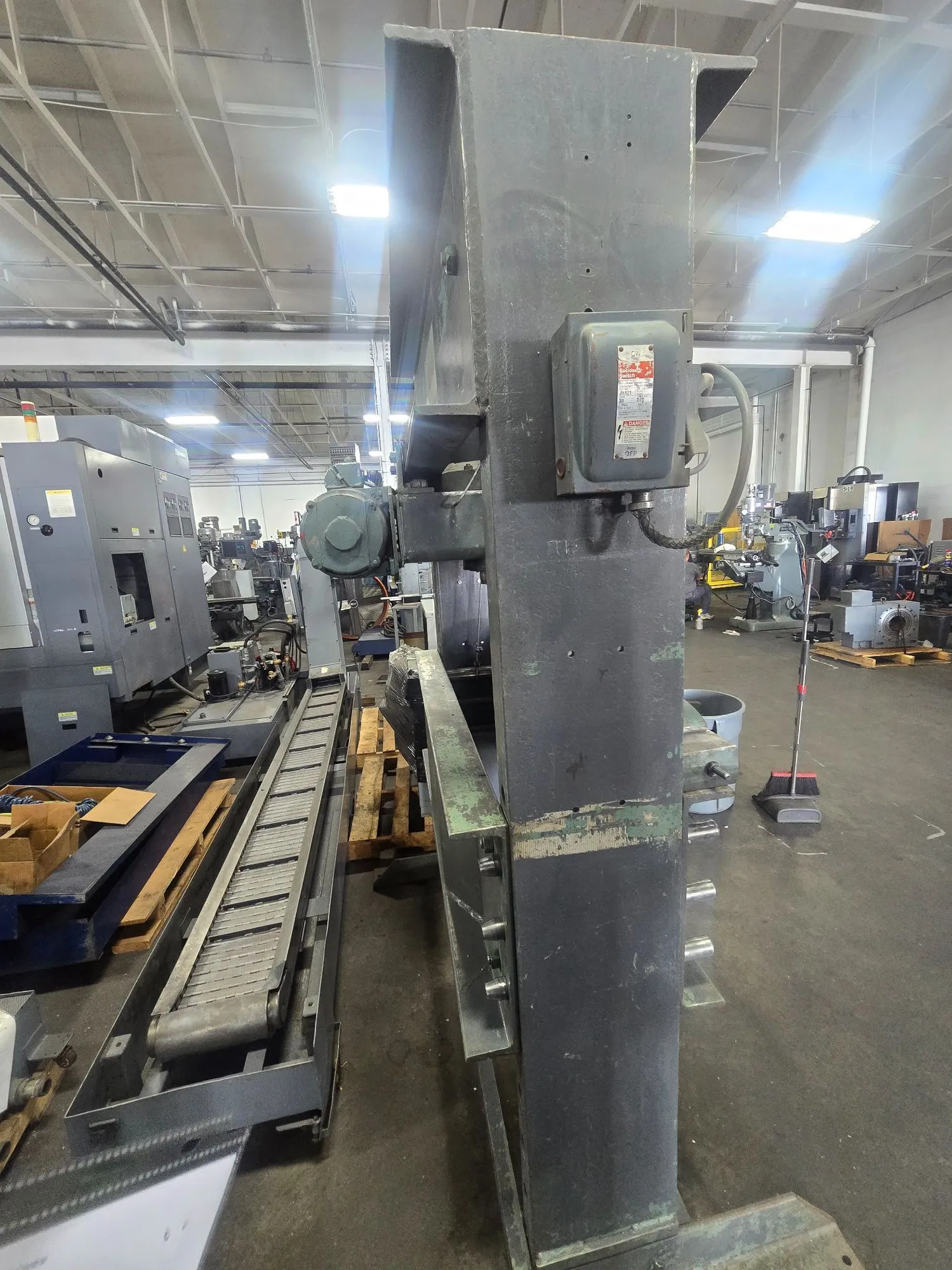

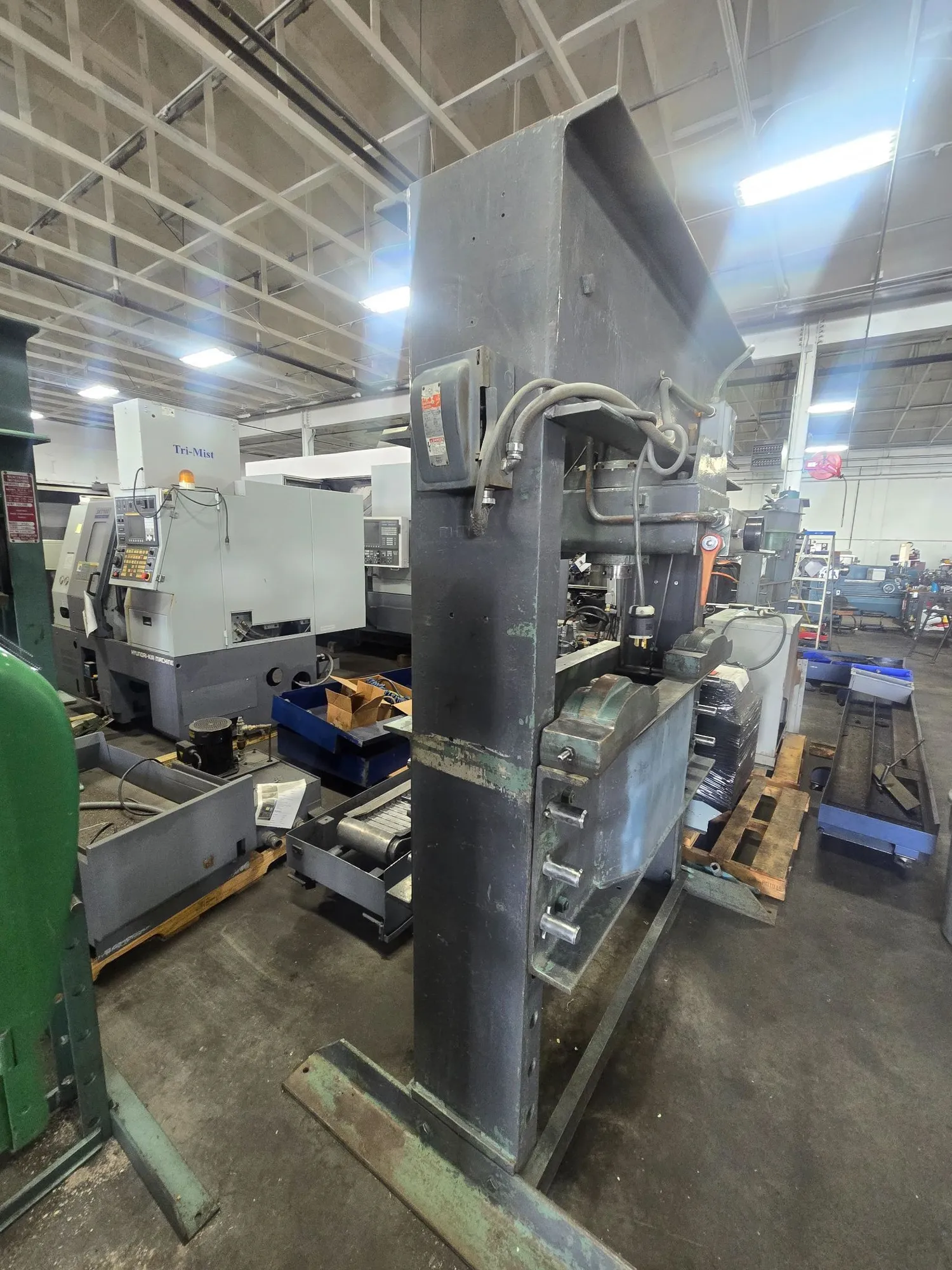

THE DAKE MODEL 5-150A IS A 150-TON ELECDRAULIC H-FRAME PRESS DESIGNED FOR FABRICATING AND PRESSING APPLICATIONS. IT OPERATES ON AN ELECTRIC, THREE-PHASE POWER SOURCE (220/440V) DRIVEN BY A 2 HP MOTOR. KEY DIMENSIONS INCLUDE A 48-INCH WIDTH BETWEEN THE UPRIGHTS AND 12-1/4 INCHES BETWEEN THE TABLE CHANNELS. THE WORK AREA PROVIDES AN ADJUSTABLE RAM-TO-TABLE RANGE FROM A MINIMUM OF 10 INCHES TO A MAXIMUM OF 30 INCHES. THE RAM HAS A 16-INCH TRAVEL (STROKE), WITH AN ADVANCE SPEED OF APPROXIMATELY 16 IPM AND A PRESSING SPEED OF APPROXIMATELY 2-3/4 IPM. THE PRESS FEATURES A MOVABLE, ROLLER-MOUNTED WORKHEAD WITH 24-3/4 INCHES OF HORIZONTAL TRAVEL. FOR SAFETY AND CONVENIENCE, IT INCLUDES A SELF-LOCKING HOIST FOR TABLE HEIGHT ADJUSTMENT, A SAFETY OVERLOAD VALVE, A PRESSURE GAUGE, AND A STROKE INDICATOR. THE UNIT WEIGHS APPROXIMATELY 3,000 LBS, WITH BASE DIMENSIONS (FOOTPRINT) OF 66 INCHES BY 42 INCHES AND AN OVERALL HEIGHT OF APPROXIMATELY 95 INCHES.
SERIAL. 14926MODEL. MIGHTY MAX CAPACITY. 150 TONSSTROKE. 18"MAX. DISTANCE RAM TO HEAD CHANNEL. 30"MIN. DISTANCE RAM TO HEAD CHANNEL. 12"RAM CYLINDER DIAMETER. 6"RAM PLATEN DIAMETER. 30"RAM SPEED. 2-3/4 IPMWIDTH BETWEEN UPRIGHTS. 48"WORK TABLE AREA. 24" X 46"FLOOR TO TABLE TOP. 28-1/2"SINGLE HAND LEVER CONTROL. UP ...more
