150 Ton, Dake #33-672, Electric Powered Hydraulic Tire Press w/Guarding, 18" Ram Travel, 36" between uprights, 36" max Daylight, 25" Platen diameter, 10 HP, 220/440 V, new

Description

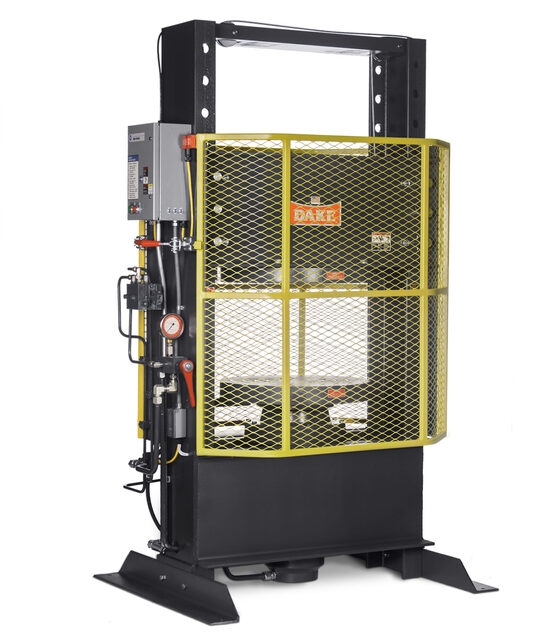

Dake 150 Ton Electric Powered Hydraulic Tire Press with Guarding, 33-672

Inventory # 9304

Model: 33-672

Made in USA

Specifications:

Capacity: 150 Tons

Ram Speed – Advance/Return: 17 IPM / Gravity

Width Between Uprights: 36″

Max. Daylight: 36″

Ram Travel: 18″ – Limit Switch Stops Ram at End of Stroke

Head Channel Travel: 15″

Platen Diameter: 25″

Motor: 10 HP / 220v or 440v / 3ph

Standard Features:

150 Ton Capacity for Handling Large Forklift Tires

Large 7 3/4″ Ram Provides Platen Stability and Longer Seal Life

Upper Movable Head Channel Provides 15″ of Travel for Easy Set-Up

Easily Removable Pins Allow Head Channel to be Set in Four Different Positions

Eliminates Outside Servicing Delays and Truck Downtime

Expanded Metal Guard with Larger 1″ Opening

18″ Stroke, 17 IPM Speed

Mechanical Specifications:

Dimensions: 57″ x 43″ x 80″ H

Weight: approx. 3,600 lbs.

FOB Factory

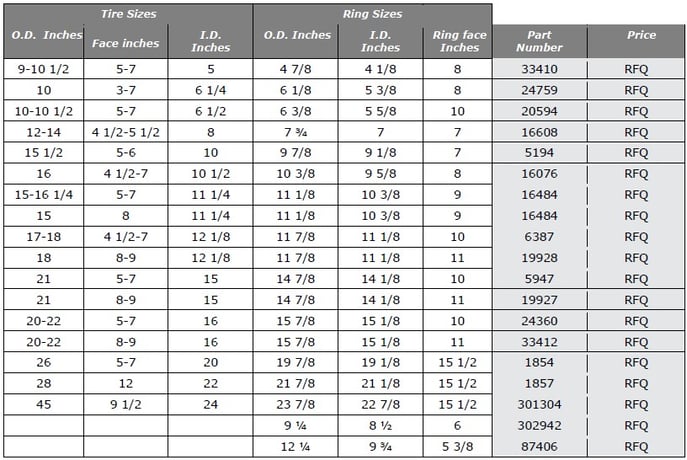

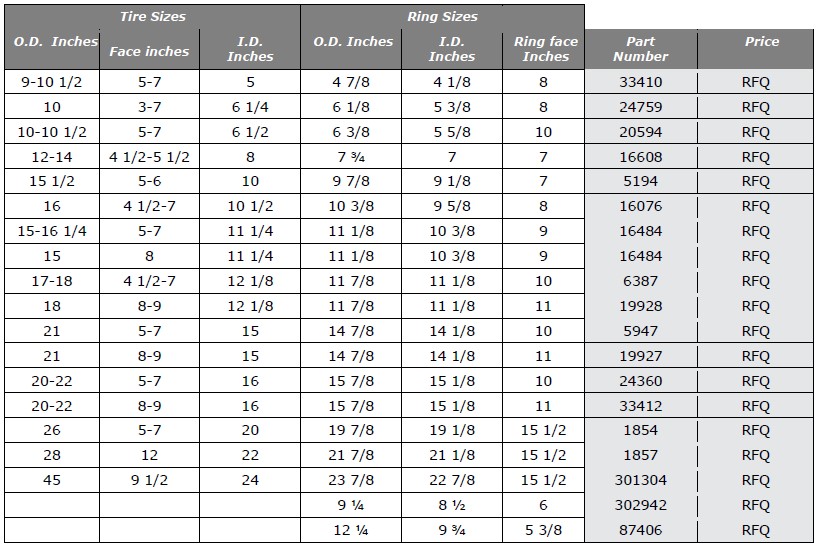

Please Note: See Photo with Optional Tire Pressing Rings in Different Sizes – You Will Need These Pressing Rings to Operate the Machine
