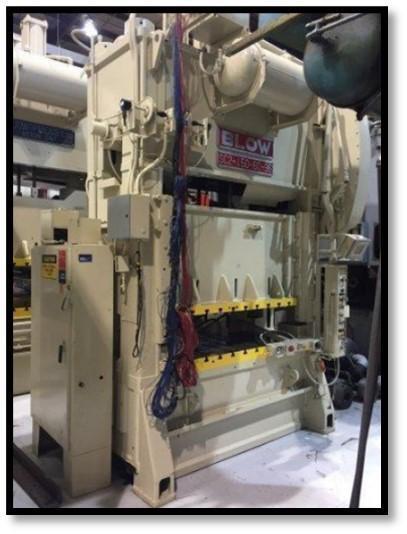

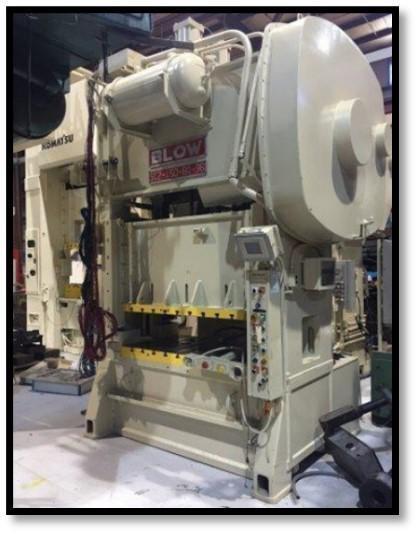

150 Ton, Blow #SC2-150-60-36, straight side double crank, 6" stroke, 18" Shut Height, 60" x 36" Bed, 60 SPM, Air Clutch

Press Specifications:

· 150 U.S. Tons Capacity (1334 kN)

· 6.00 in. Stroke (152 mm)

· 4.00 in. Shut Height Adjustment (102 mm)

· 18.00 in. Shut Height (457 mm)

· 60.00 x 36.00 in. Ram Area (1524mm x 914 mm)

· 60.00 x 36.00 in. Bolster Area (1524mm x 914 mm)

· 21.00 in. Side Window Opening (533 mm)

· 30 - 60 SPM Speed Range

Equipped With:

· Air clutch & brake

· Air Counterbalances

· Recirculating Lube System

· T-Slotted Ram Plate and Bolster

· 8 point gibbing

· Electrical Control Cabinet

Equipped With (cont’d):

· Motors and Controls

· Palm Buttons

· Simatic Panel Siemens

· Baumer Electric Rotating Cam Limit Switch

· Dual Ross Air Valve

· Motorized Ram Adjustment

· Main Motor Fwd./ Reverse

• Imco Tonnage Monitor

Note: All specifications contained herein are as the machine was originally manufactured and are subject to change at time of inspection.
