150 Ton, Blow #SC2-150-60-36, straight side double crank, 6" stroke, 18" Shut Height, 4" adj, 60" LR x 36" FB, air clutch, 30-50 SPM

150

6 inches

18 inches

4 inches

60" LR x 36" FB

60" LR x 36" FB

30-60 VSPM

Standard Specifications
Blow Press Model SC2-150-60-36
Straight Side Mechanical Metal Stamping Press
150 Ton Capacity
6" Stroke
18" Shut Height
4" Adjustment
60" LR x 36" FB Bed Area
60" LR x 36" FB Slide Area
30-60 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
T-Slots on 6" Centers- Standard 1" T-Slots
8 Point Gibbing
Electrical Control Cabinet
Variable Speed Motor
Motors and Controls
Palm Buttons

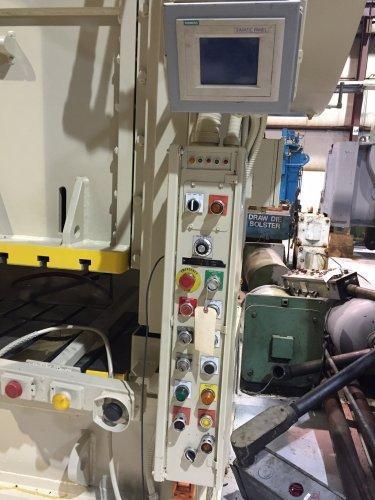

Simatic Panel Siemens
Baumer Electric Rotating Cam Limit Switch
Dual Ross Air Valve
Motorized Ram Adjustment
Main Motor Fwd./ Reverse
Imco Tonnage Monitor
13" Wide Windows
Floor Standing

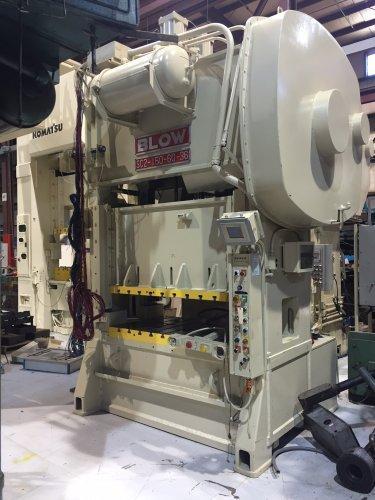

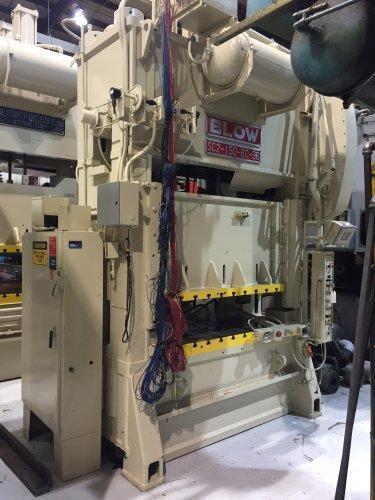

This Used 150-ton Blow Straight Side Mechanical Metal Stamping Press Can Be Seen Under Power in our Warehouse!

Looking for a high-quality used metal stamping press? Our Blow SC2-150-60-36 is a versatile and reliable solution for your metal forming needs. This 150-ton straight side press features a spacious 60" LR x 36" FB bed area, a 6" stroke, and a variable speed range of 30-60 VSPM, making it a powerful addition to any production line. With features like an air clutch and brake, recirculating lube system, and a Simatic Siemens control panel, this used stamping equipment is ready to perform. The Blow press is available for inspection under power at our Livonia, Michigan warehouse. Don't miss this opportunity to acquire a cost-effective piece of used industrial machinery. We specialize in presses for sale and can help you find the right fit for your operation.
