150 HP Cleaver-Brooks #CB-200-250, steam boiler, 750 sq.ft., 1992

OVERVIEW

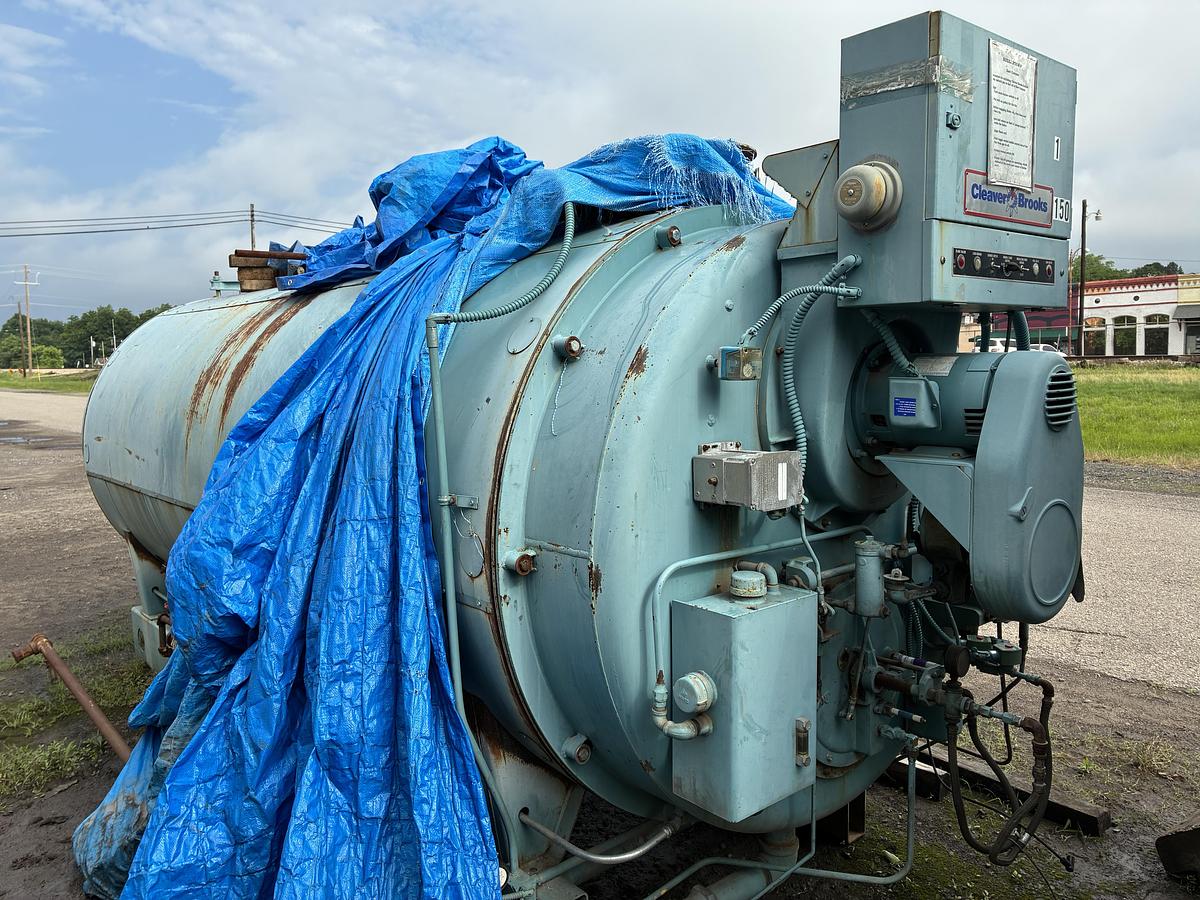

This is a Cleaver Brooks Model CB 200-150 packaged firetube steam boiler — 150 HP, 150 PSI maximum working pressure, dual-fuel natural gas and oil fired. Serial Number L-91225, Date 9/10/92. National Board Number 03010, certified by Cleaver Brooks. ASME rated — 750 sq ft heating surface. Maximum input 6,277,000 BTU/HR. UL Listed Gas-Oil Fired Boiler Assembly No. AH252491. Manufactured by Cleaver-Brooks Division, Aqua-Chem, Inc., Milwaukee, Wisconsin, USA. Ready for inspection — contact us to schedule.

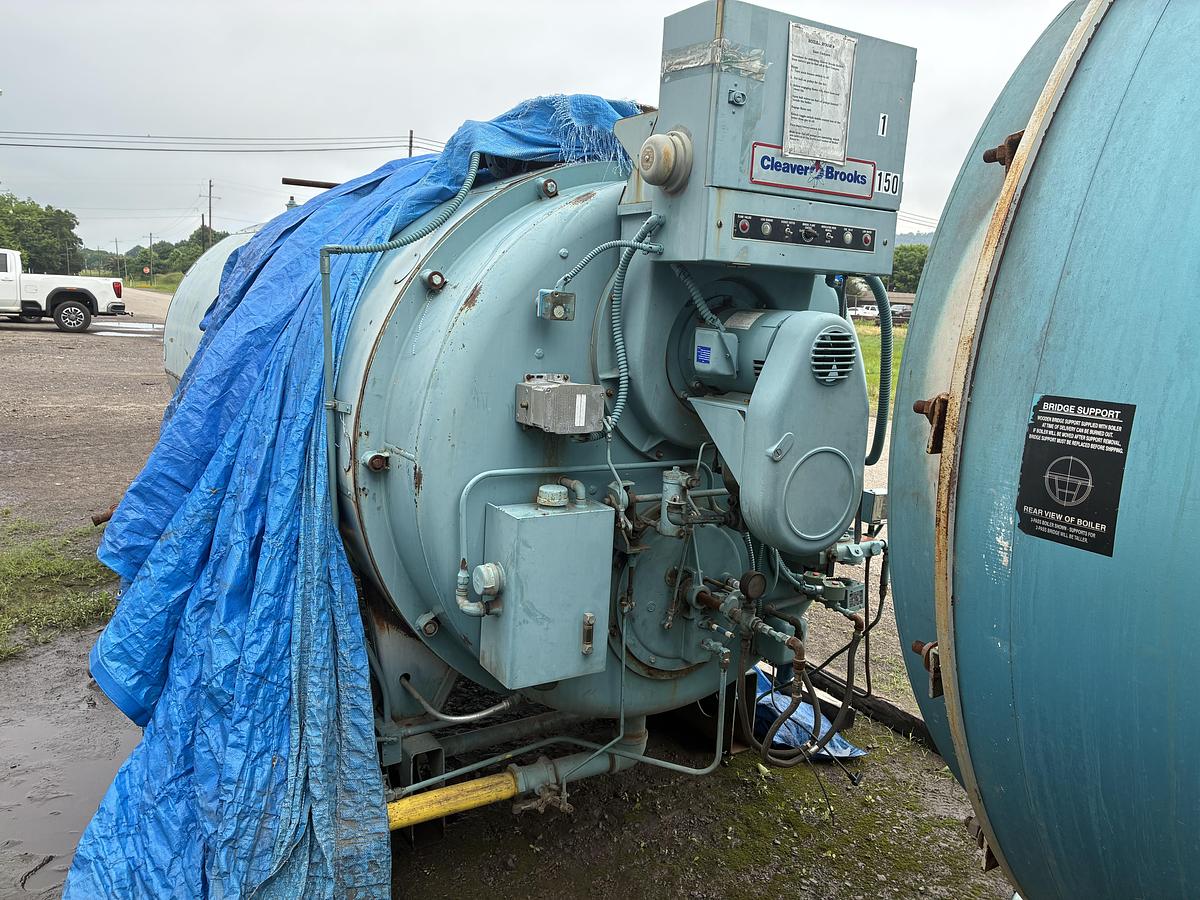

Cleaver Brooks CB Series horizontal firetube packaged steam boiler — one of the most recognized and trusted names in industrial steam generation. 150 HP capacity with 6,277,000 BTU/HR maximum input. Dual-fuel capability — natural gas primary with No. 2 oil backup (45 GPH oil). 150 PSI MAWP — high-pressure steam. Factory-mounted Cleaver Brooks control panel with Honeywell burner management system, modulating burner control, pressure control, and full safety interlock system. 7.5 HP blower motor — 460V, 3-Phase. Complete with gas train, safety shut-off valves, pressure regulators, and all boiler trim. Horizontal shell with structural steel base frame.
Ideal for large-scale industrial process steam, manufacturing, institutional heating, food and beverage processing, laundry operations, hospital or healthcare steam systems, or any application requiring a proven, high-capacity dual-fuel firetube steam boiler.
EQUIPMENT SPECIFICATIONS

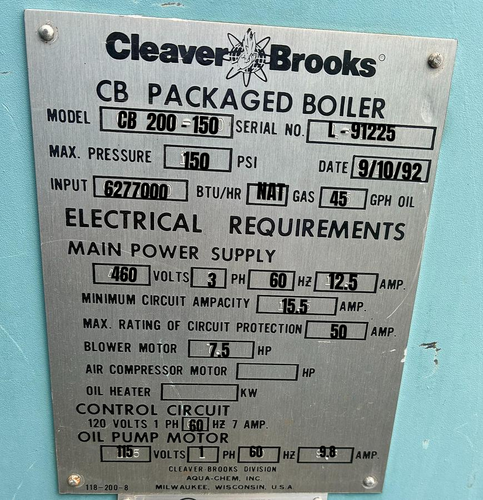

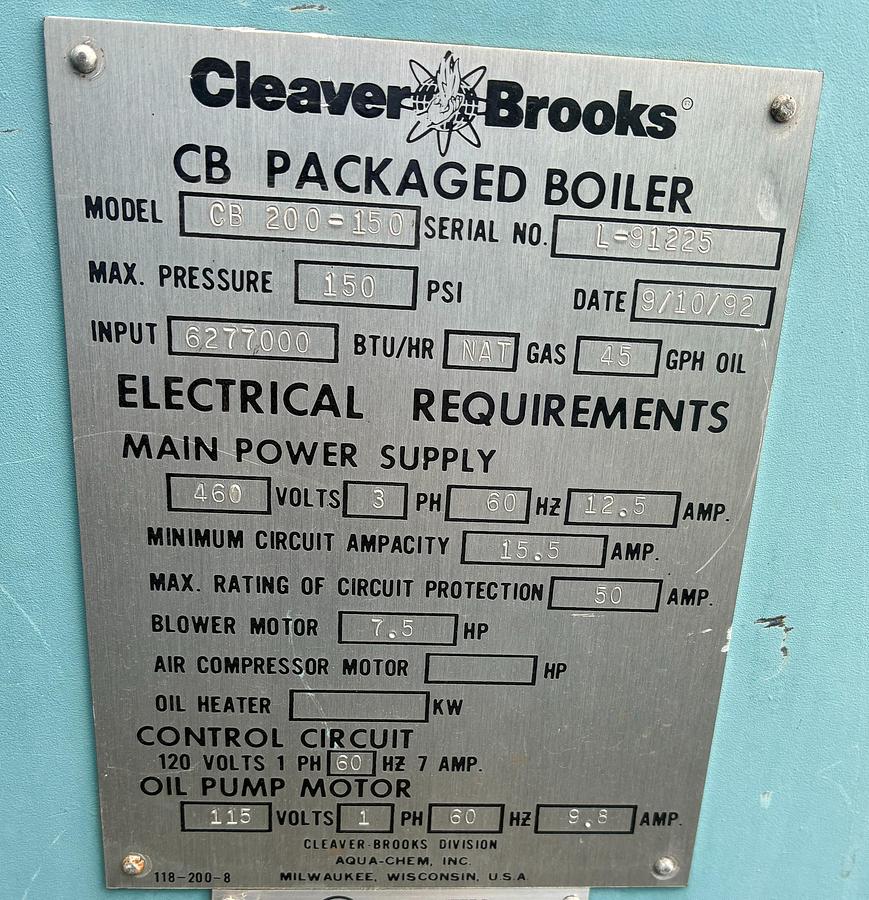

- Manufacturer: Cleaver Brooks (Cleaver-Brooks Division, Aqua-Chem, Inc. — Milwaukee, Wisconsin, USA)
- Model: CB 200-150
- Serial Number: L-91225

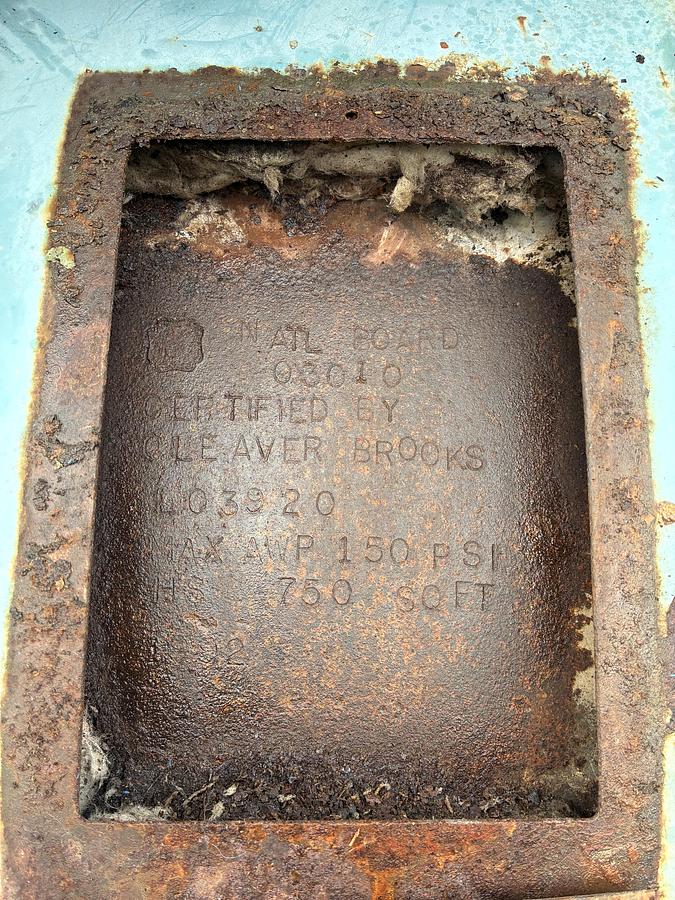

- National Board Number: 03010
- Date: 9/10/92
- Boiler Type: Firetube Packaged Steam Boiler — Horizontal
- Fuel Type: Dual Fuel — Natural Gas / No. 2 Oil
- Boiler Horsepower: 150 HP
- Max. Working Pressure (MAWP): 150 PSI
- Heating Surface: 750 Sq Ft
- Max. Gas Input: 6,277,000 BTU/HR
- Oil Input: 45 GPH

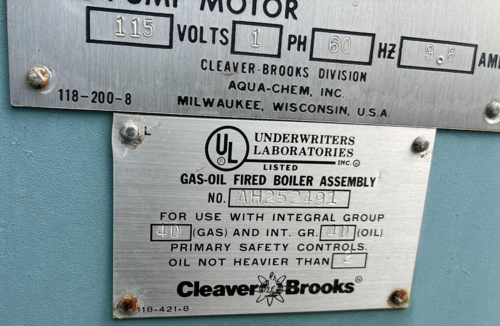

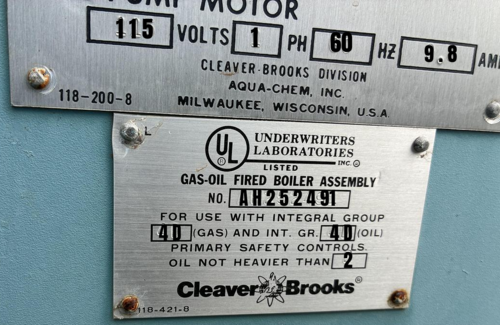

- UL Listed: Gas-Oil Fired Boiler Assembly No. AH252491
- Certification: ASME — Certified by Cleaver Brooks

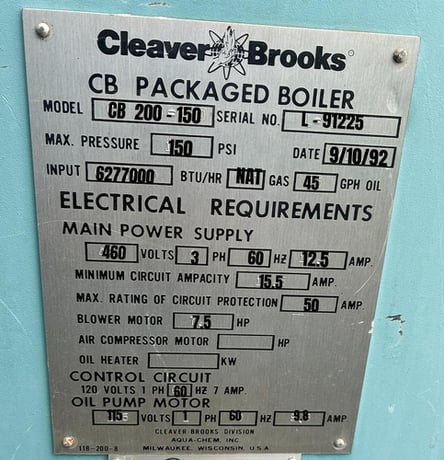

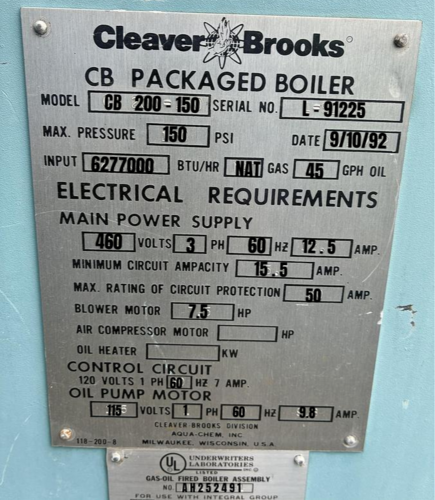

Electrical Requirements:
- Main Power Supply: 460V, 3-Phase, 60 Hz, 12.5 Amps
- Min. Circuit Ampacity: 15.5 Amps
- Max. Circuit Protection: 50 Amps
- Blower Motor: 7.5 HP
- Control Circuit: 120V, 1-Phase, 60 Hz, 7 Amps
- Oil Pump Motor: 115V, 1-Phase, 60 Hz, 9.8 Amps
KEY FEATURES & BENEFITS
Cleaver Brooks CB Series Firetube Design:
- Cleaver Brooks CB Series — industry-leading horizontal firetube packaged boiler platform
- 150 HP / 6,277,000 BTU/HR maximum input
- 750 sq ft heating surface — robust steam generating capacity
- 150 PSI MAWP — high-pressure steam capability

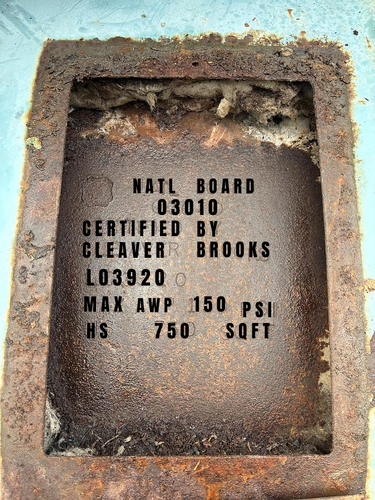

- ASME certified — National Board No. 03010
- Horizontal shell design — structural steel base frame with skid runners
Dual-Fuel Burner System:
- Factory-mounted dual-fuel burner — natural gas and No. 2 oil (up to 45 GPH)
- Fuel selector switch — Gas/Oil selection visible in control panel
- Complete gas train — safety shut-off valves, pressure regulators
- Square D limit switch — burner linkage assembly
- Modulating burner control — full modulation from low to high fire
Cleaver Brooks Control Panel:
- Factory-mounted Cleaver Brooks control panel — top-mounted enclosure
- Honeywell burner management / flame safeguard module
- Front panel controls: Flame Failure indicator, Load Demand, Burner Switch On/Off, Manual Flame Control (Close to Auto), Modulating Mode, Fuel Valve, Low Water
- Cleaver Brooks pressure control — Main and Differential pressure adjustment
- Internal panel: Square D motor starter, contactor, control transformer, terminal strips
- UL listed control assembly
Blower Motor:
- 7.5 HP blower motor — factory mounted on burner end
- 460V, 3-Phase drive — belt-driven centrifugal blower wheel
- Cleaver Brooks labeled motor with lubrication instructions
Pressure & Safety Controls:
- Cleaver Brooks pressure control (Main/Differential)
- Miljoco pressure gauge — visible on burner end
- Low water cutoff
- Safety relief valve provisions
- Full safety interlock system
Shell & Fireside:
- Horizontal firetube shell — light blue factory finish
- Firetube bundle visible through rear inspection opening — tubes in clean condition
- Rear access door / rear head — accessible for tube inspection and cleaning
- Blow down connections on shell
SYSTEM COMPONENTS
Main Boiler:
- Cleaver Brooks CB 200-150 horizontal firetube shell
- S/N L-91225, NB No. 03010, Date 9/10/92
- 150 HP, 150 PSI MAWP, 750 sq ft HS
- Structural steel base frame / skid runners
Burner & Fuel System:
- Dual-fuel burner assembly — Natural Gas / No. 2 Oil
- Complete gas train — safety shut-off valves and pressure regulators
- Oil pump motor — 115V, 1-Phase, 9.8 Amps
- Fuel selector switch
Control System:
- Cleaver Brooks factory control panel — top-mounted
- Honeywell flame safeguard / burner management module
- Square D motor starter and contactor
- Control transformer
- Pressure control (Main/Differential)
- Front panel operator controls — Flame Failure, Load Demand, Burner Switch, Modulating Control, Fuel Valve, Low Water
Blower:
- 7.5 HP blower motor — 460V, 3-Phase, 60 Hz
- Belt-driven centrifugal blower
SPECIFICATIONS SUMMARY
- Manufacturer: Cleaver Brooks — Milwaukee, Wisconsin, USA
- Model: CB 200-150
- Serial Number: L-91225
- National Board Number: 03010
- Date: 9/10/92
- Boiler Type: Horizontal Firetube Packaged Steam Boiler
- Fuel: Dual Fuel — Natural Gas / No. 2 Oil
- Boiler HP: 150 HP
- Max. Working Pressure: 150 PSI
- Heating Surface: 750 Sq Ft
- Max. Input: 6,277,000 BTU/HR
- Oil Input: 45 GPH
- Main Power: 460V, 3-Phase, 60 Hz
- Blower Motor: 7.5 HP
- Control Circuit: 120V, 1-Phase, 60 Hz
- Oil Pump Motor: 115V, 1-Phase, 60 Hz, 9.8 Amps
- UL Listed: Gas-Oil Fired Boiler Assembly No. AH252491
- Condition: Used
ADDITIONAL INFORMATION
- Condition: Used
- Manufacturer: Cleaver Brooks — Milwaukee, Wisconsin, USA
- Model: CB 200-150
- Serial Number: L-91225
- National Board Number: 03010
- Boiler HP: 150 HP — 150 PSI MAWP
- Fuel: Dual Fuel — Natural Gas / No. 2 Oil
- Blower Motor: 7.5 HP — 460V, 3-Phase
- Control Panel: Cleaver Brooks factory panel with Honeywell burner management
- Inspection: Welcome — contact us to schedule
IMPORTANT NOTES:
- Dual-fuel firetube steam boiler — natural gas and No. 2 oil capable
- 150 HP / 150 PSI MAWP — high-pressure steam — ASME certified
- Unit is stored outdoors — buyer should inspect condition thoroughly prior to purchase
- Buyer responsible for transport and rigging arrangements from current location
- Contact us for additional photos, video walkthroughs, or technical questions
Location: Ohio
