For Sale by C.W. Wood Machinery Inc
Surplus Record Dealer Since 1965
Location: Cincinnati, OH
Contact Sales Dept.
Phone Number: 800...> Show Phone Number 800-745-6008
Let the seller know you found their listing on Surplus Record!
Description

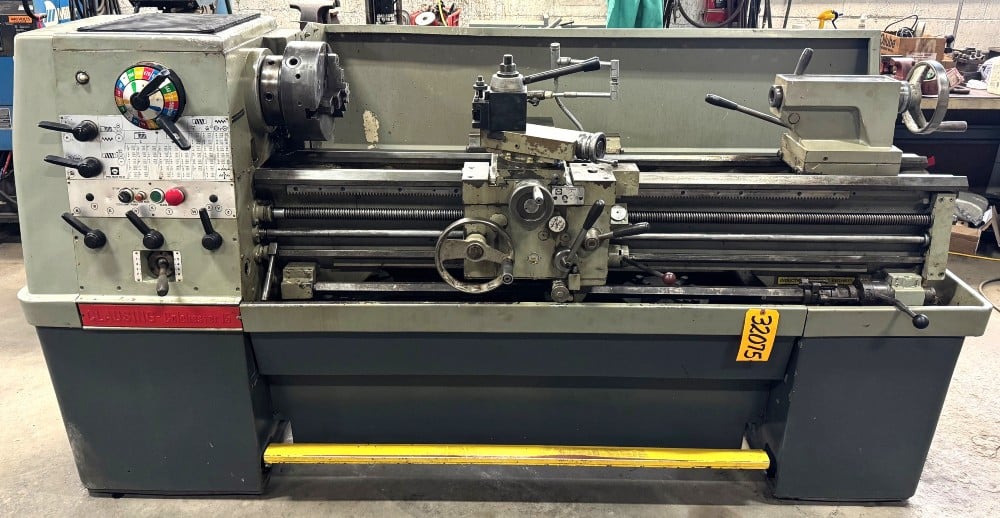

CLAUSING COLCHESTER LATHE
MODEL: 15"
SERIAL NUMBER: 6-0015-18033
GENERAL SPECIFICSTIONS
Swing Over Bed and Saddle wings: 15-1/4"
Swing Over Cross Slide: 9-1/2"
Distance Between Centers: 50"
Bar Capacity Through Spindle: 2-1/8"
Spindle Nose: D1-6" Camlock
Spindle Speeds: (16) 25 - 2000 RPM
Threads, Inch: (45) 2 - 72
Threads, Metric: (39) .2 - 14
Longitudinal Feeds: .0015" - .040"
Cross Feeds: .00075" - .020"
Lead Screw, Diameter: 1-1/4" -4 Acme
EQUIPPED WITH
7-1/2 HP Motor, 230/460/60/3
10" 3-Jaw Chuck, 10" 6-Jaw Chuck, 10" 4-Jaw Chuck
Quick Change Tool Post
Thread Dial
Hard Ways
Approximate Weight: 3200 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
MODEL: 15"
SERIAL NUMBER: 6-0015-18033
GENERAL SPECIFICSTIONS
Swing Over Bed and Saddle wings: 15-1/4"
Swing Over Cross Slide: 9-1/2"
Distance Between Centers: 50"
Bar Capacity Through Spindle: 2-1/8"
Spindle Nose: D1-6" Camlock
Spindle Speeds: (16) 25 - 2000 RPM
Threads, Inch: (45) 2 - 72
Threads, Metric: (39) .2 - 14
Longitudinal Feeds: .0015" - .040"
Cross Feeds: .00075" - .020"
Lead Screw, Diameter: 1-1/4" -4 Acme
EQUIPPED WITH
7-1/2 HP Motor, 230/460/60/3
10" 3-Jaw Chuck, 10" 6-Jaw Chuck, 10" 4-Jaw Chuck
Quick Change Tool Post
Thread Dial
Hard Ways
Approximate Weight: 3200 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
Get Your Price from C.W. Wood Machinery Inc!
