Description

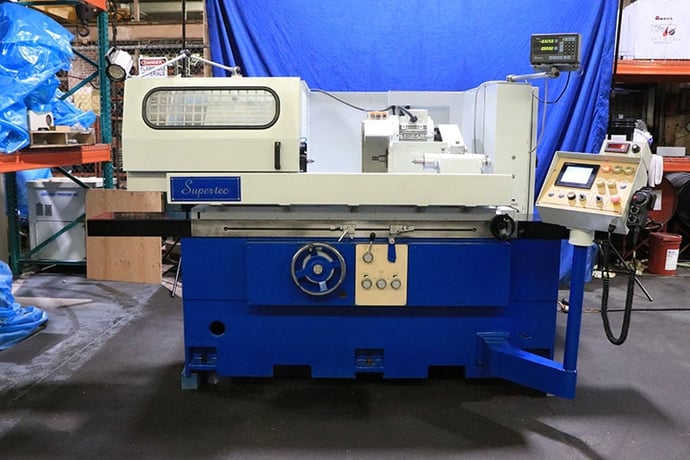

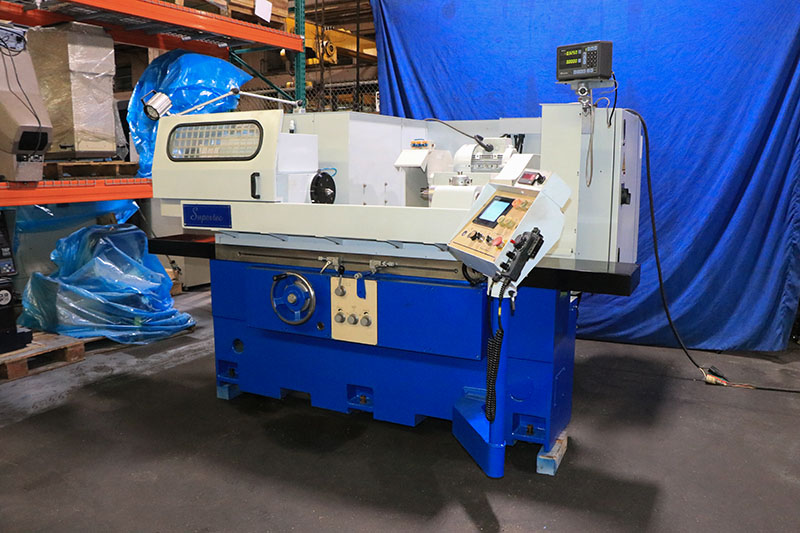

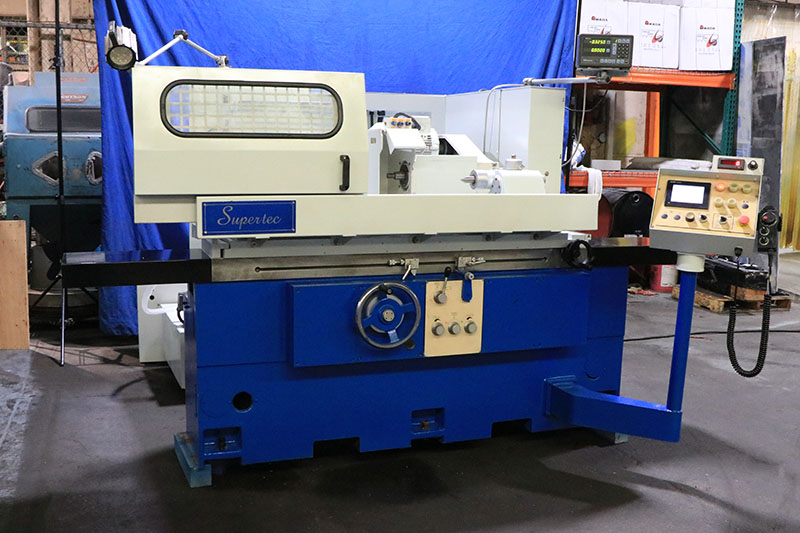

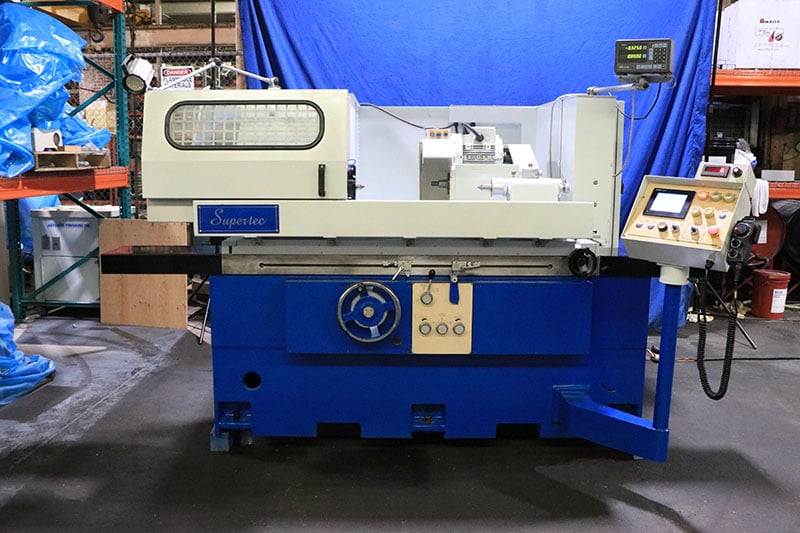

15" x 24" SUPERTEC
UNIVERSAL CYLINDRICAL GRINDER
w/"Mitsubishi" PLC Automatic Infeed Control
MODEL G38P-60NC… S/N: 6C17006… NEW:… 2017
GENERAL CAPACITY
Distance Between Centers: 24"
Swing Over Table: 15"
Max. Grinding Diameter: 14"
Max. Load Held Between Centers:″30 lbs
WHEELHEAD
Hand feed travel: 7.8"
Auto incremental infeed (NC) 0.0001" ~ 0.0999"
Handwheel per division: 0.0002"
Handwheel per revolution: 0.08"
Infeed travel: 9.6"
Top slide sliding travel: 7"
Swiveling angle (R&L):″0°
Automatic rapid travel: 1.75"
GRINDING WHEEL
Diameter x Width x Bore: 16" x 2" x 5"
Wheel speed: VFD, Infinitely Variable Spindle Speeds
TABLE
Swivelling angle (R&L): 7°
Traverse speed (infi variable): 1.2"~275"/min
Handwheel per revolution: 0.39"
WORKHEAD
Swiveling angle (R&L): 90°
Center taper: MT4
Spindle speed (infi variable):″0~350 rpm
TAILSTOCK
Center taper: MT4
Quill travel: 1"
MOTORS
Wheel spindle motor: 7.5HP(4P)
Workhead motor: 2HP(4P)
Hydraulic pump: 2HP(4P)
Coolant pump: 0.25HP(2P)
Internal grinding motor: 2HP(2P)
MACHINE
Net weight: 10340 lbs
Gross weight: 11220 lbs
Packing dimension: 119"x90"x79"(L x W x H)
Standard Features:

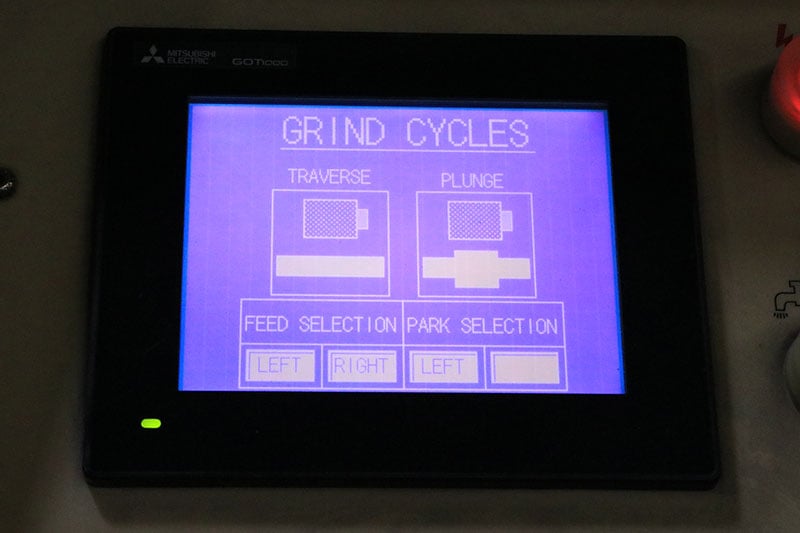

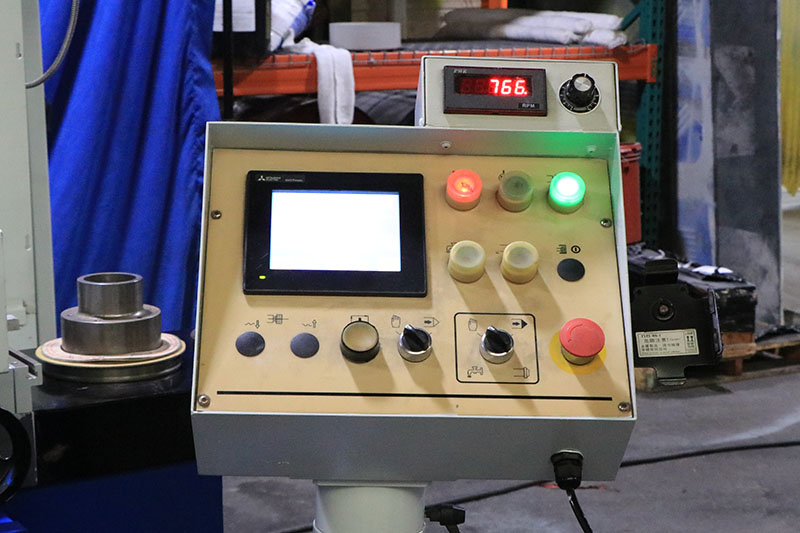

- Mitsubishi PLC Control uses a menu-driven
LCD touch screen - it is easy to learn and easy
to set-up. Simply fill in the blanks to set
the total grinding amount, rough increment,
fine increment, spark-out passes, feeding direction,
parking position, and retracting clearance - then
press cycle start to complete an automatic
grinding cycle.
- Heavily ribbed box-type base is made of
Meehanite castings, providing excellent rigidity
to ensure machine stability.
- Hydraulics, coolant and lubrication systems are
separated from machine to eliminate vibration
and dissipate heat.
- Sturdy rigid-designed workhead is
electronically controlled giving variable spindle
speeds ranging from″0-350RPM.
Workhead swivels 90°CCW to 90°CW for various
grinding operations.
- A dual oil seal and cover prevents coolant seepage
into the workhead.
- The design of the tailstock is both rigid and
robust. Housed in a cast body, the hardened nitralloy
steel sleeve is designed to carry a MT4 center.
- Cartridge type wheel spindle is equipped with four
super precision class 7 (ABEC) bearings incorporated
with 7 1/2 HP spindle motor ensure high accuracy.
- One V and one flat hand-scraped guideways are
Turcite coated and incorporated with an automatic
lubrication system and micro-stepping
motor. Smooth movement of the wheelhead delivers
longer way life with superior positioning accuracy
and repeatability.
- A special upper slide design adds 7" (180mm)
in total wheelhead travel and increases grinding
capacity.
- Rigid table with box-type structure travels on
a cushion of oil with no metal-to-metal contact.
Table is fully supported in the full
travel to avoid overhang.
- A swiveling table dial indicator enables rapid
cylindricity corrections and taper grinding
applications.
- Slideways, leadscrews are continuously
lubricated by an auto-lube system to ensure
long service life and maintain maximum accuracy.
Equipped With:
- Display for PLC is in…"Inch" Measurements
- 16" Diameter Wheel, 2"W,… 5" Bore
- Electronic Variable Speed Drive for the Wheelhead
- Workhead Spindle, No. 4 MT
- Auto lube system
- Coolant system

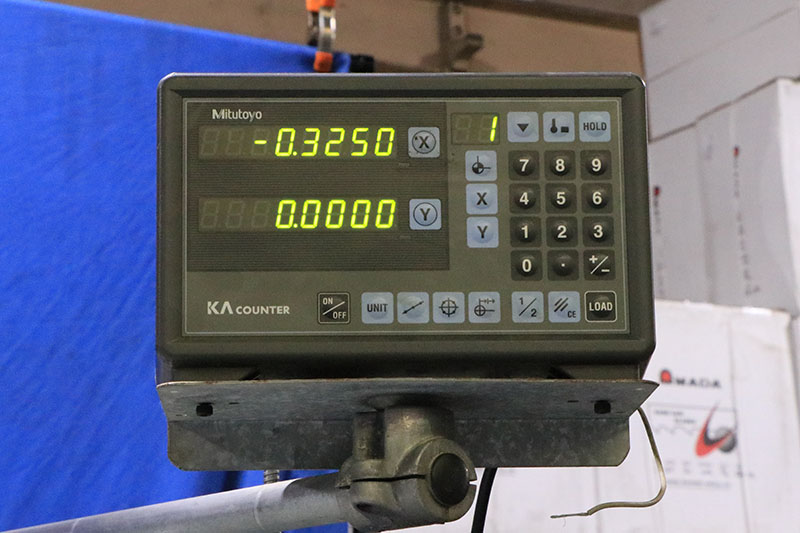

-…"Mitutoyo" Digital Readout, Display Box is for 2-Axes,
Single Axis Presently Installed
- Machine is Wired Presently for″/60/230 Volts
** Exceptional Condition… Appearance **
** Inpsect Under Power in our Harrison, NJ Warehouse **
