Description

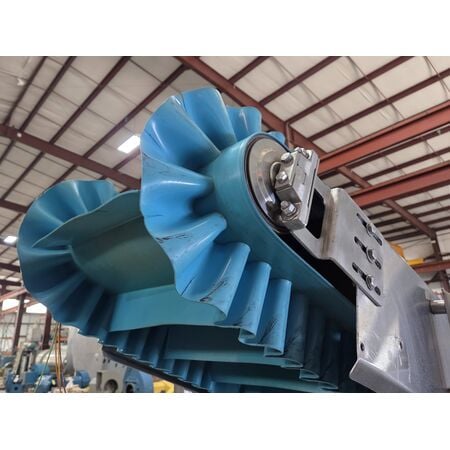

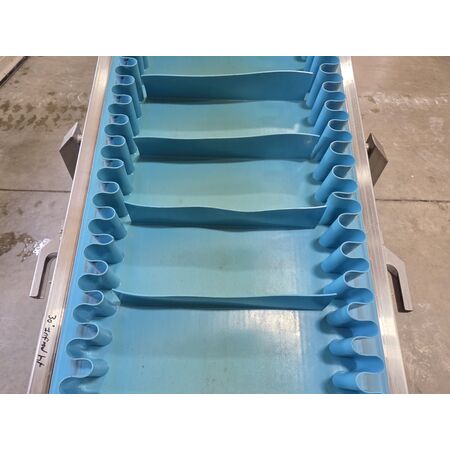

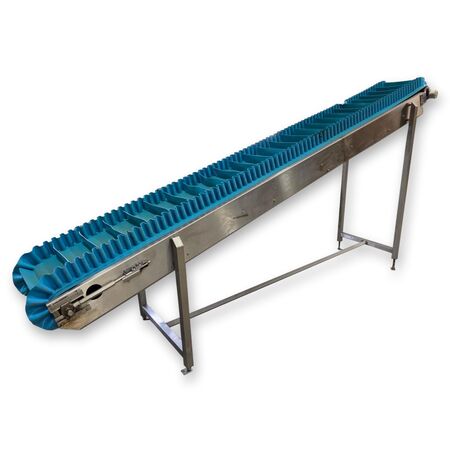

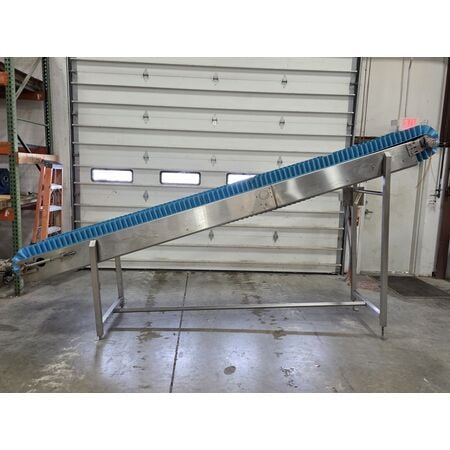

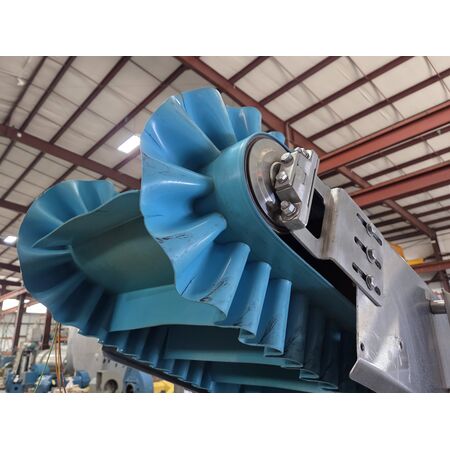

Used Stainless Steel Cleated Slider Bed Incline Belt Conveyor - 15"W X 13.5' L Stainless steel welded box tubing stand on 18 incline with threaded adjustable feet. Slider bed type conveyor frame with polyethylene bottom return rollers. Blue vinyl belt with reinforced backing, 3" cleats on 6.5" spacing, 4" flexible wall. Conveyor bed width of 22.5" (15" working width), 13'-6" length between pully centers. Belt Height at Loading: 30" Belt Height at Discharge: 82" 1HP drum motor drive, 110 ft/min belt speed Service Power: 460VAC, 3 phase, 60Hz
Used chain belt conveyor, carbon steel frame, approximately 15" wide x 148" long chain belt, with cleated belt conveyor, 16" wide x 60" long, adjustable angle, approximately 1 hp motor drive driving both conveyors.
Metal covers/lids for trough, 16” belt width, 17” trough width, You can watch the video of conveyor running, ¾ hp motor- 3 phase, 208-230/460 volt, Contact us for pricing and a freight rate., Shipping dimensions: 28” w x 20ft 6 inches x 3ft tall.
one(1) used 16" x 54" Motorized Belt Conveyor 16" wide belt x 54" long adjustable height legs 2" high side rails Entry point is 27.5" off the ground Exit point is 35.5" off the belt Hinged tail is 15.5" roller conveyor on 4" centers 1/2 hp Boston Gear reduced drive 3 phase ...more
Intralox Series 200 Open Grid Polypropylene Black (New Surplus in Unopened Boxes), MISC CONVEYOR, BELT-SERIES 200 BLK, 16"X80.15' POLY, 487 ROWS CONVEYOR BELT-SERIES 200 OPEN GRID BLK 16"X80.15' POLY AND 6.4" (10T) SERIES 200 6.4" BLUE POLY SPROCKET WITH 5" SQUARE BORE.
