For Sale by National Machinery Exchange

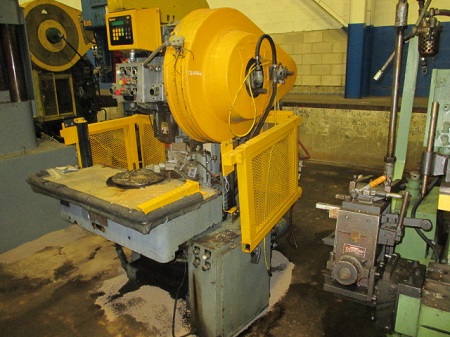

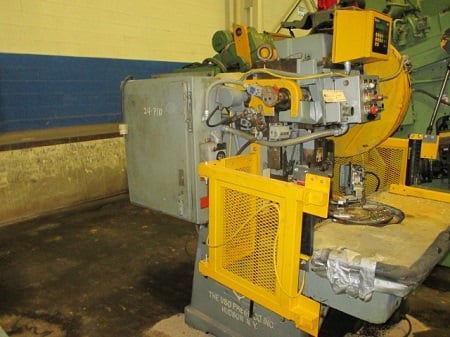

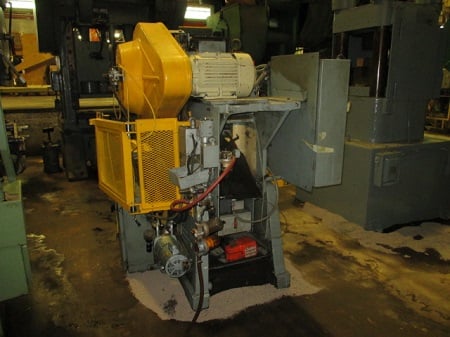

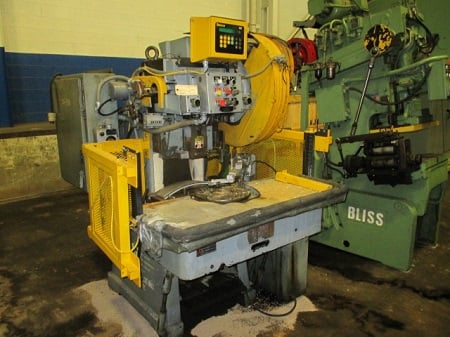

Description
RATED CAPACITY ....................... 15 TONS
STROKE ............................... 3"
ADJUSTMENT ........................... 2"
SHUT HEIGHT .......................... 8-1/4"
THROAT ............................... 4"
BED AREA .... (L-R x F-B) ............ 22" x 12"
RAM AREA .... (L-R x F-B) ............ 15" x 6-3/4"
BOLSTER ..... (L-R x F-B x THICK) .... 22" x 12" 1-3/4"
WIDTH BETWEEN UPRIGHTS ............... 9-1/2"
CLUTCH TYPE .......................... AIR
GEARING .............................. FLYWHEEL
DRIVE ................................ D.V.M.D.
SPEED ................................ 125 SPM
EQUIPPED WITH: PALM BUTTON, FOOT PEDAL ACTIVATION
AUTO LUBE, MODEL P20 FEED -0- MATIC AND
MERLIN MODEL M2112 - CT CONTROL
MOTOR: 3 HP, 3/60/230/440, 870 RPM
WITH CONTROLS
OVERALL DIMENSIONS: 4'9" L-R x 5'9" F-B x 6'5" HIGH
Get Your Price from National Machinery Exchange!
Buyers Who Viewed This Listing Also Viewed:
22 Ton, Federal #22, OBI press, 3" stroke, 8.25" Shut Height, 2" ram adj., 7" throat, 150 SPM, 12" x20"bed, air clutch & brake

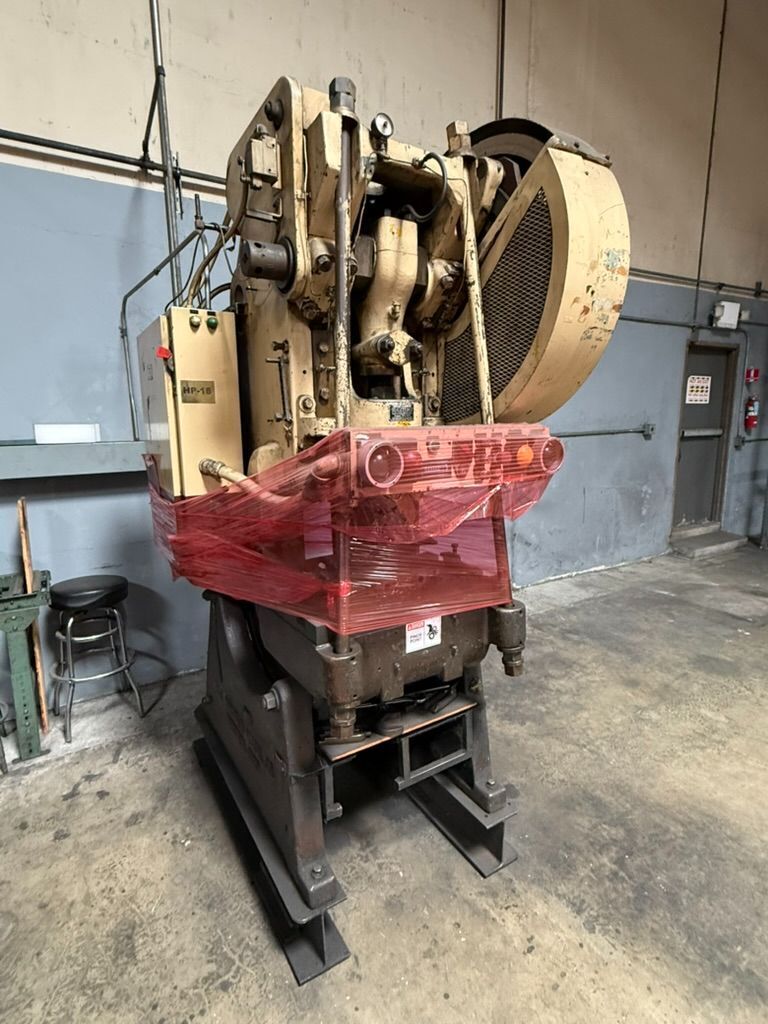

45 Ton, Minster #5, OBI Mechanical Punch Press, 3" stroke, 9" shut height, 28" x 18" bed, 90 SPM
