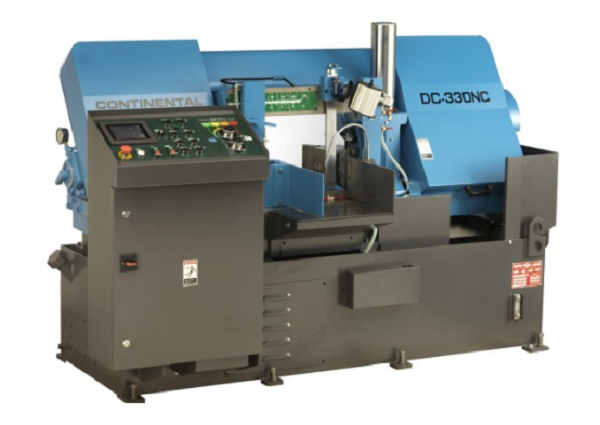

15.7" x 13" DoAll #DC-330NC, production bandsaw, PLC, 167" x1.25" blade, 52-275 FPM, new

15-¾” x 13" Band Saw with PLC Control for All Electric and Hydraulic Functions Infinitely Variable Speed Controlled by VFD Hydraulic Retractable Shuttle Vise Material Indexer Rapid and Creep Speed Index Vise Control Multi-Step Full Stroke Vises with Split Front Vise and Variable Vise Pressure Control Nesting Fixture for Bundle Cutting Spring Loaded Zero Clearance Coolant Through Carbide Faced Saw Guide with Lead-In Rollers Power Driven Coolant Flushed Blade Cleaning Wire Brush Flushing Hose and Auxiliary Coolant Nozzles Hydraulic Blade Tension Automatic Chip Conveyor Blade Breakage/Stall Motion Detector Shut Off Switch Band Door Interlocks Work Light Gravity Conveyor Tool Kit Complimentary DoALL Cutting Fluids Package One DoALL Bi-Metal Saw Blade Instruction and Parts Manuals on CD or USB Data Stick.

GENERAL SPECIFICATIONS

• Cutting Capacity Round: 13″
• Cutting Capacity Rectangle: 15-3/4 x 13″
• Bundle Capacity Maximum: 14-1/2 x 6-5/8″
• Bundle Capacity Minimum: 6-1/2″ x 2″
• Band Saw Blade: 1-1/4 x 0.042 x 167″
• Blade Speed: 52-275 fpm
• Band Drive: 5 hp
• Hydraulic Pump: 1 hp
• Hydraulic Tank Capacity: 16 gal
• Coolant Pump: 1/6 hp
• Coolant Tank Capacity: 24 gal
• Automatic Index Length Single: 19.68″
• Automatic Index Length Multiple: 177.16″
• Material Pass Line Height: 27-1/2″
• Floor Space Required: 89” X 87” x 56"
• Machine Weight: 4410 lbs.

INCLUDES: Hydraulic Blade Tension, Automatic Chip Conveyor, Band Door Interlocks, Work Light, Gravity Conveyor, Tool Kit, Complimentary DoALL Cutting Fluids Package, One DoALL Bi-Metal Saw Blade, Instruction and Parts Manuals on CD or USB Data Stick.

***All Price, Location and Specifications Subject to Change without Notice***
