Description

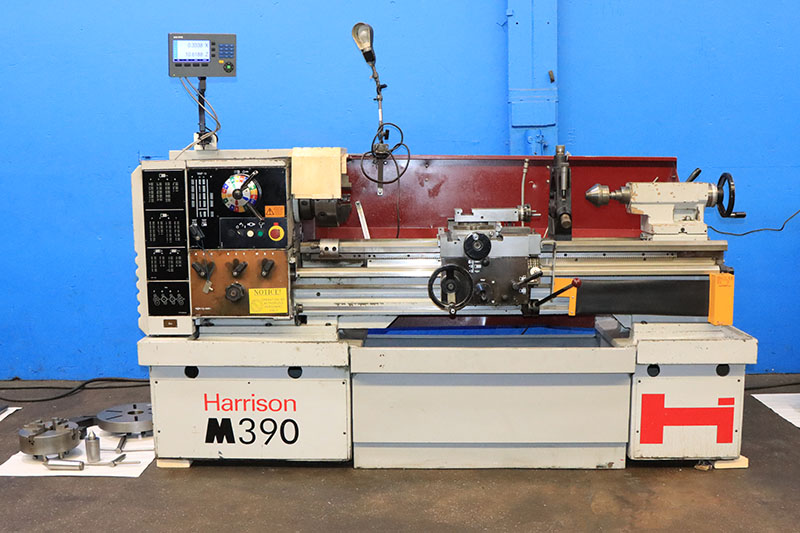

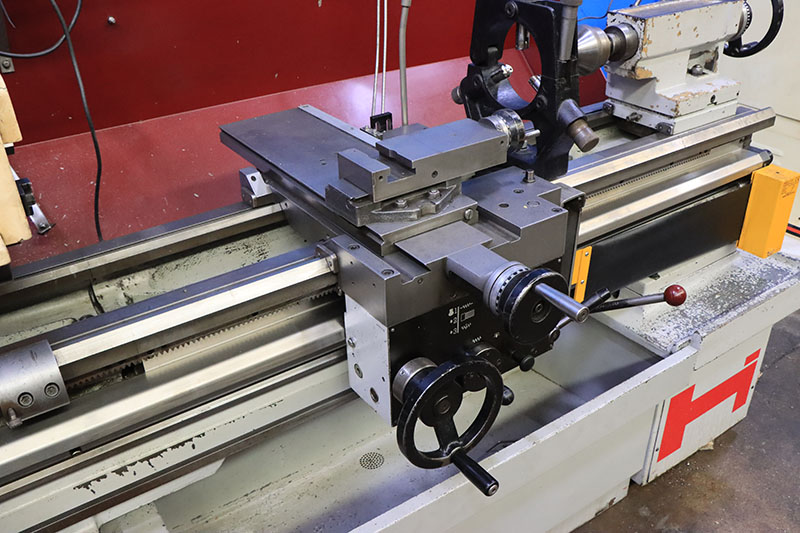

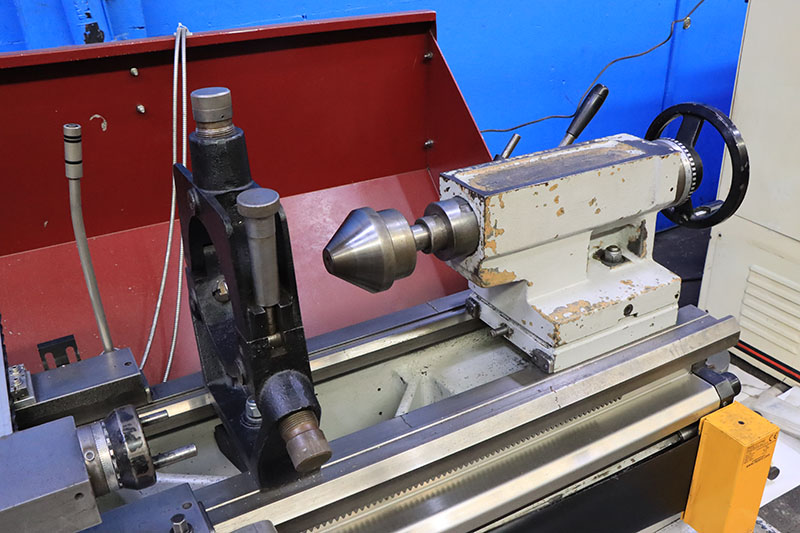

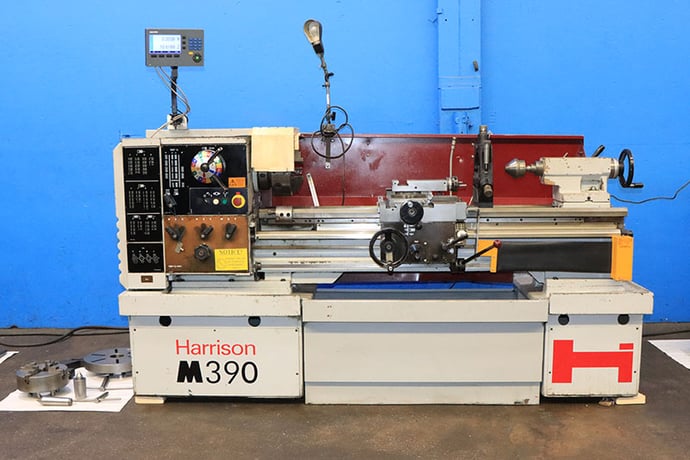

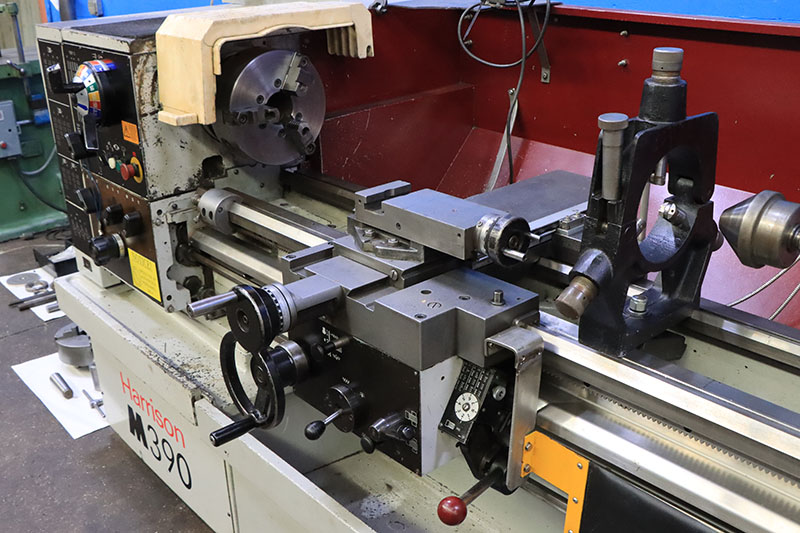

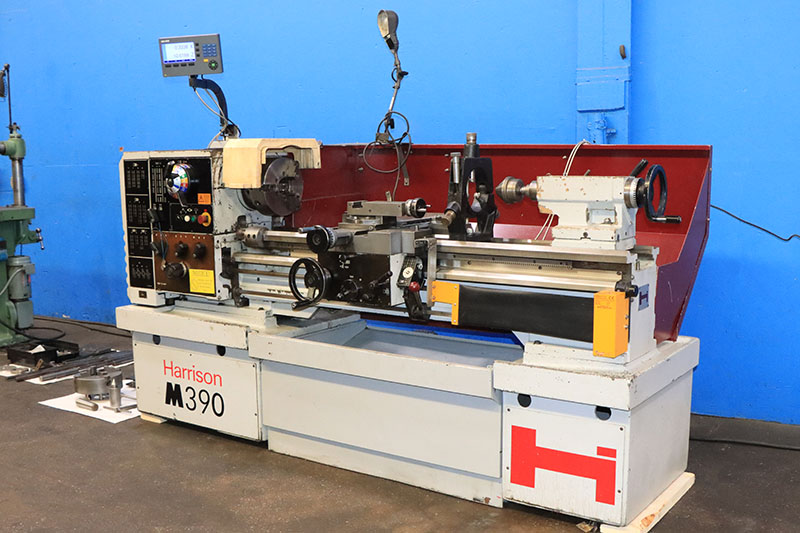

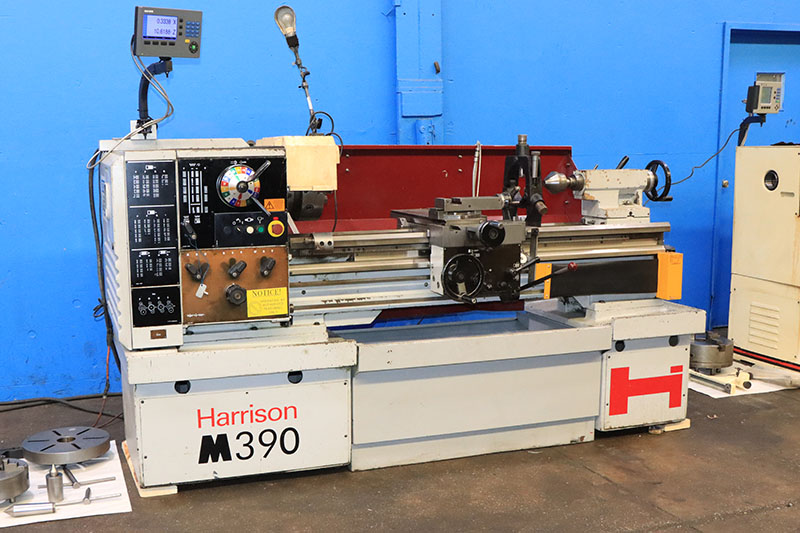

15"/23" x 50" HARRISON GAP BED ENGINE LATHE
MODEL: M390,… S/N: G70118, MFG: 1996
SPECIFICATIONS:
SWING OVER BED .......................... 15.7"
SWING IN REMOVEABLE GAP ................. 23"
SWING OVER CROSS SLIDE .................. 9.7"
DISTANCE BETWEEN CENTERS ................ 50"
HOLE THROUGH SPINDLE .................... 2.125"
SPINDLE NOSE ............................ D1-6 CAMLOCK
SPINDLE SPEED RANGE (16) ................ 25 - 2000 RPM
ENGLISH THREADING RANGE (56) ............ 2 - 56 TPI
METRIC THREADING (51) ................... .2 - 14 mm
FEED RANGE LONGITUDINAL (42) ............ .0014 - .096 IPR
CROSS FEED 1/2 OF LONGITUDINAL SETTING
WIDTH OF BED ............................ 12.5"
CROSS SLIDE TRAVEL ...................... 9.8"
TOP SLIDE TRAVEL ........................ 5.1"
TAILSTOCK SPINDLE TRAVEL ................ 5.5"
TAILSTOCK SPINDLE TAPE .................. #5MT
APPROX DIMENSIONS ....................... 99"L x 49"W x 51"H
APPROX WEIGHT ...........................″500 LBS
EQUIPPED WITH:
ACU-RITE DIGITAL READOUT
10"″-JAW BUCK CHUCK
10" 4-JAW CHUCK
FACEPLATE
ROLLER TYPE STEADY REST
FOLLOW REST
HEADSTOCK CENTER SLEEVE… CENTER
DEAD CENTER FOR TAILSTOCK
LIVE CENTER FOR TAILSTOCK
MICROMETER CARRIAGE STOP
THREAD DIAL INDICATOR
COOLANT SYSTEM WITH REMOVABLE CHIP PAN
7.5 HORSE POWER MAIN MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
