Description

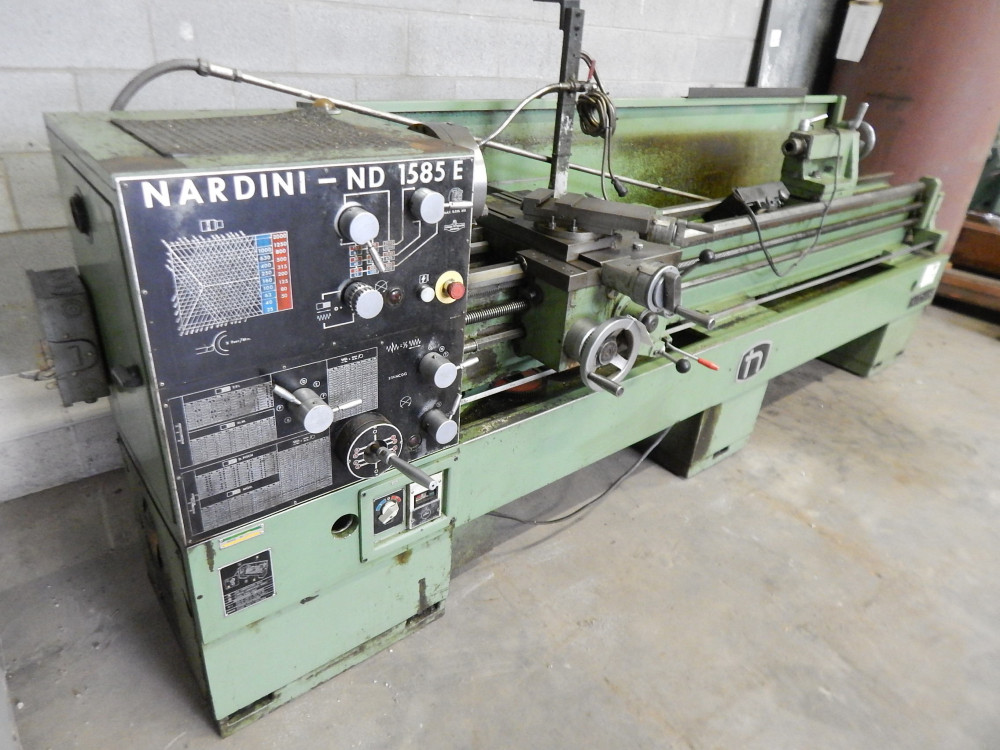

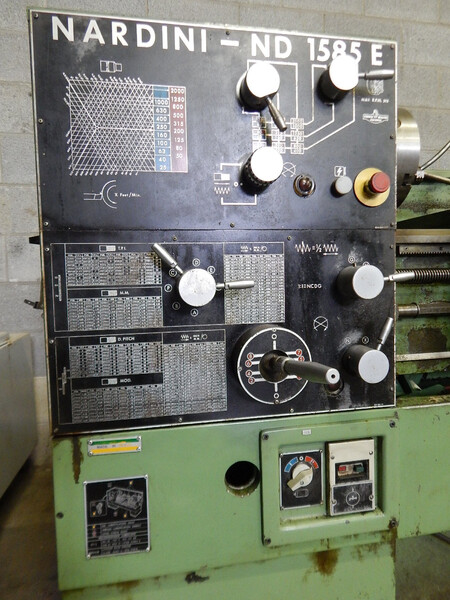

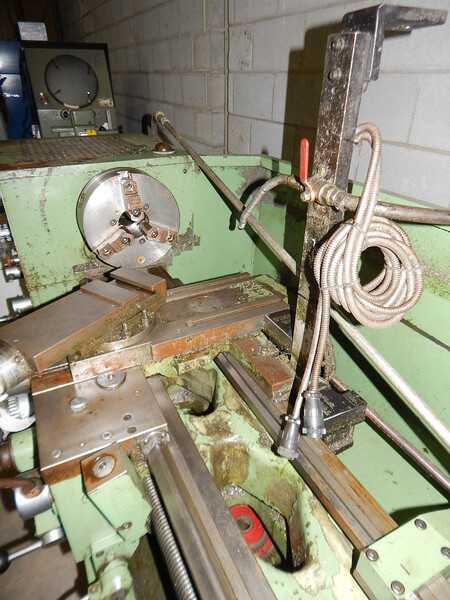

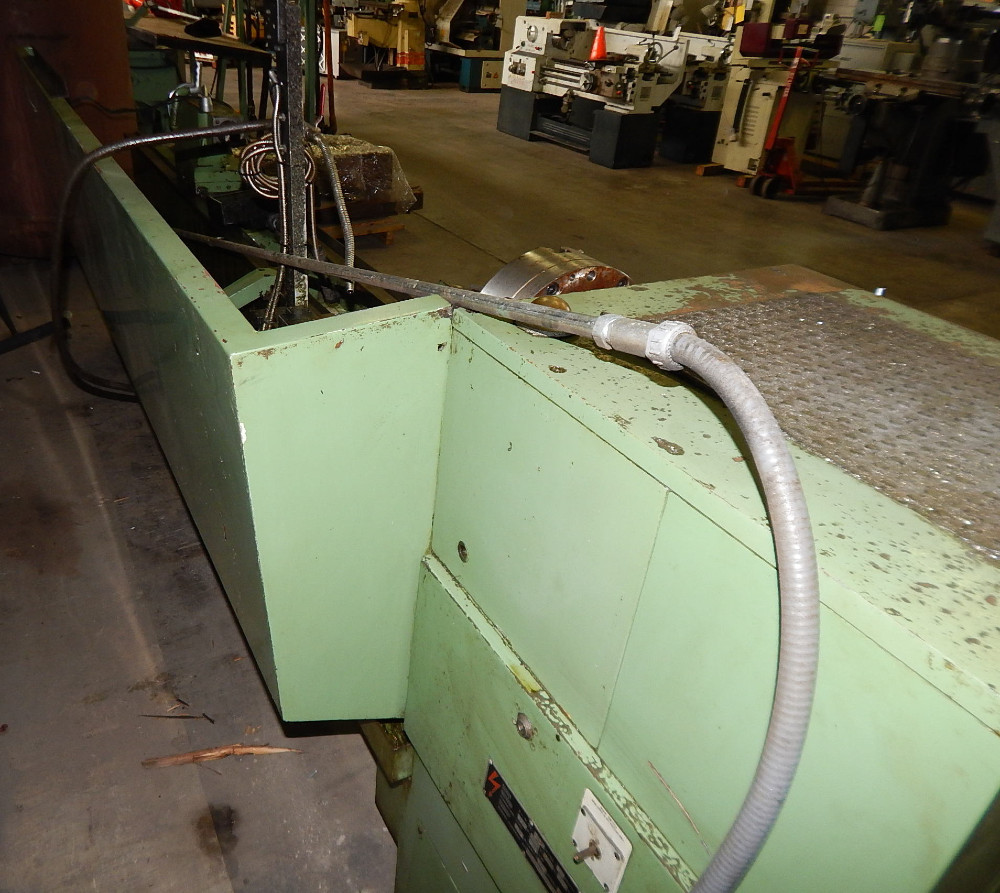

15-3/8" / 22-7/8" x 85" cc NARDINI Model ND1585E Engine Lathe
SPECIFICATIONS:
Swing Over Bed: 15-3/8"
Swing Over Cross Slide: 8-5/8"
Swing in Gap: 22-7/8"
Distance Between Centers: 85"
Cross Slide Travel: 9-7/8"
Hole Through Spindle: 2-1/32"
Spindle Nose: D1-6
Spindle Taper: MT#4
Spindle Speeds: (18) 25 to 2000 RPM
Feed, Cross: (132) .0010 to .0488 IPR
Feed, Longitudinal: (132) .0021 to .0976 IPR
Threads, Inch: (54) 42 to 2-3/4 TPI
Threads, Metric: (54) .40mm to 18.472mm
Tailstock Diameter: 2-3/8"
Tailstock Travel: 8-5/8"
EQUIPPED WITH:
Partial Rest
Follow Rest

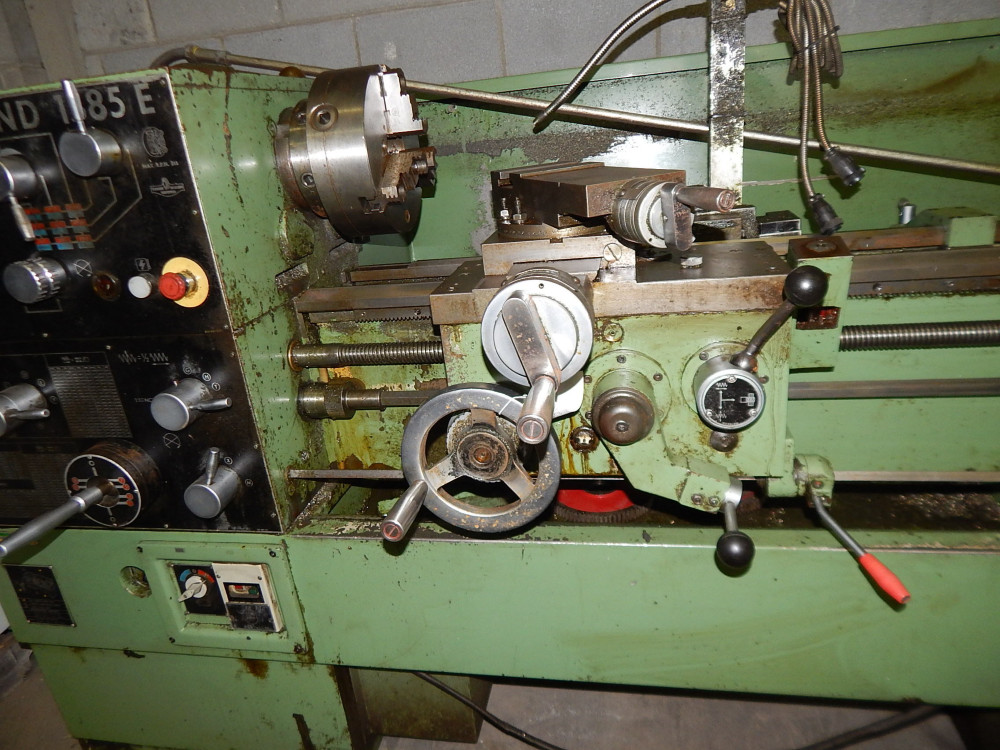

10" 3-Jaw Chuck
Adjustable Turret Type Carriage Stop
Threading Dial
Center
Inch / Metric Bezel on Cross Slide
Coolant

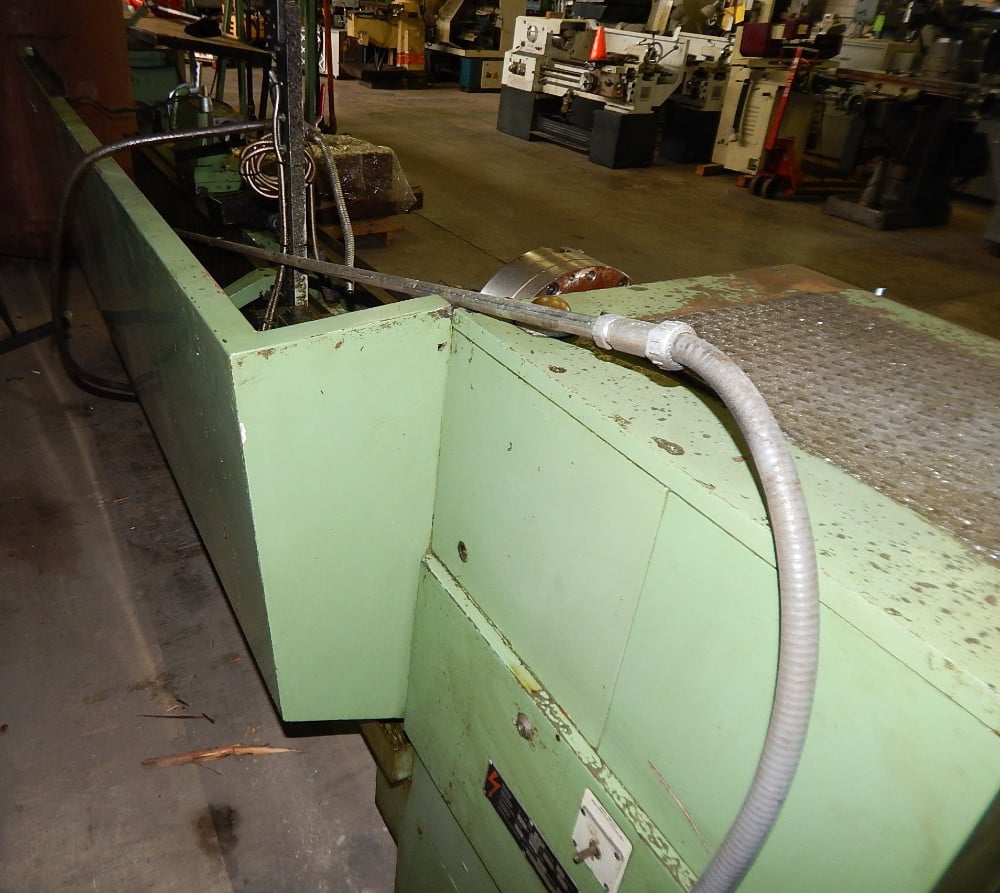

Back Splash
Full Sets of Manuals and Schematics
Taper Attachment
MOTOR DATA: 2-Speed 8/4 HP, 970/1790 RPM
OVERALL DIMENSIONS: 133" x 40" x 58" High
WEIGHT: 3,700 Lbs.
CONDITION: Good
SPECIFICATIONS:
Swing Over Bed: 15-3/8"
Swing Over Cross Slide: 8-5/8"
Swing in Gap: 22-7/8"
Distance Between Centers: 85"
Cross Slide Travel: 9-7/8"
Hole Through Spindle: 2-1/32"
Spindle Nose: D1-6
Spindle Taper: MT#4
Spindle Speeds: (18) 25 to 2000 RPM
Feed, Cross: (132) .0010 to .0488 IPR
Feed, Longitudinal: (132) .0021 to .0976 IPR
Threads, Inch: (54) 42 to 2-3/4 TPI
Threads, Metric: (54) .40mm to 18.472mm
Tailstock Diameter: 2-3/8"
Tailstock Travel: 8-5/8"
EQUIPPED WITH:
Partial Rest
Follow Rest
10" 3-Jaw Chuck
Adjustable Turret Type Carriage Stop
Threading Dial
Center
Inch / Metric Bezel on Cross Slide
Coolant
Back Splash
Full Sets of Manuals and Schematics
Taper Attachment
MOTOR DATA: 2-Speed 8/4 HP, 970/1790 RPM
OVERALL DIMENSIONS: 133" x 40" x 58" High
WEIGHT: 3,700 Lbs.
CONDITION: Good
Get Your Price from Bass Machinery LLC!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

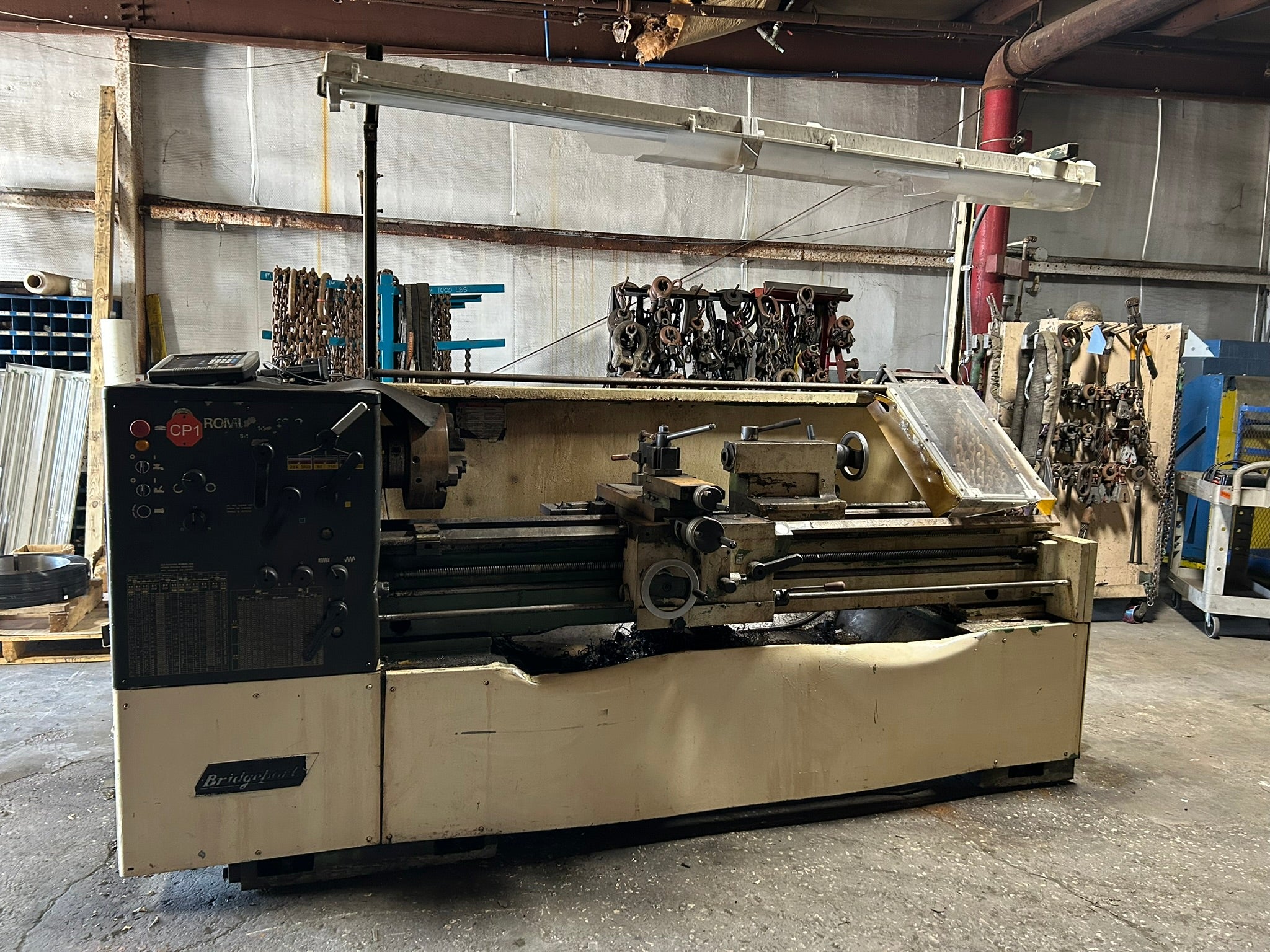

16" x 80" Bridgeport Romi #16-8, Engine Lathe, 7.62 HP, 10.84 amps, 480 Volts, 3PH
