Manufacturer: Delta
Year: 1989
kVA: 15000.0 - 16800.0 - 20000.0 - 28000.0
Primary Voltage: 120000 - 69280
Secondary Voltage: 13800
Stock # JVT-3754
1 / 2
Click to zoom in
1 / 2
For Sale by Belyea Company Inc
Surplus Record Dealer Since 1926
Location: Easton, PA
Contact Shepard Belyea
Phone Number: 610...> Show Phone Number 610-515-8775
Let the seller know you found their listing on Surplus Record!
Description
JVT-3754:

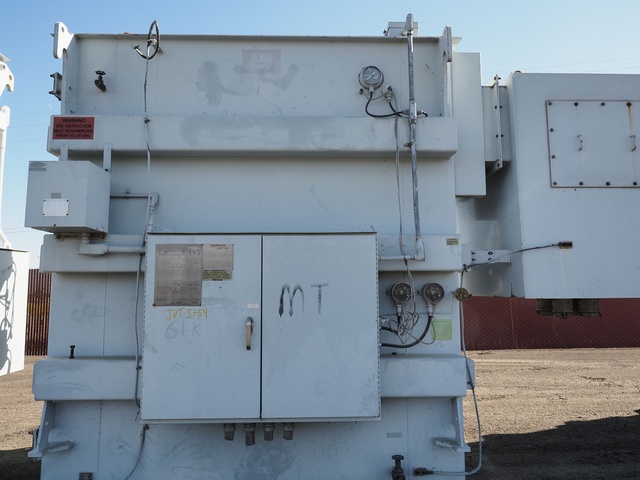

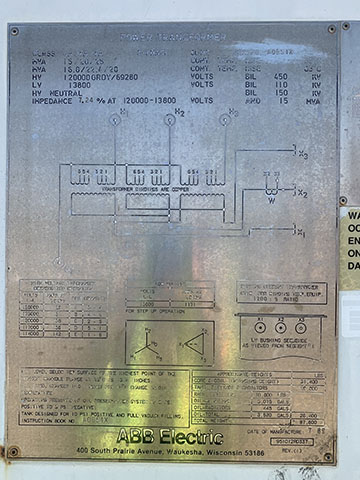

ONE (1) 15/16.8/20/22.4/25/28 MVA ABB GENERATOR STEP-UP TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA/FA, 55/65 DEGREE C RISE, 7.24% IMPEDANCE, COPPER
WINDINGS, 3 X 1200:5 HV MRCT'S, HV TOP, LV SIDE, HV ARRESTERS (ASEA
XAP123AU-96), LV ARRESTERS (GE 9L11R6A014) AUX. TRANSFORMER (15 KVA,
240/480-120/240 IN TERMINAL CHAMBER), OUTLINE A0951X281989,
HIGH VOLTAGE: 120000 GRDY/69280 BIL: 450 KV
LOW VOLTAGE: 13800 DELTA BIL: 110 KV
TAPS: 126000-123000-120000-117000-114000
TOTAL WEIGHT: 87,600 LBS.
CORE & COILS: 31,400 LBS.
TANK & FIT.: 29,800 LBS. (INC. RADS.)
RADIATORS: 10,800 LBS. (BOLT-ON)
MAIN TANK OIL: 3,075 GALS.
RADIATOR OIL: 445 GALS.
TOTAL OIL: 26,400 LBS. (3,520 GALS.)
DIMENSIONS: 193"H X 149"W X 259"L
SHIPPING: 158"H X 91"W X 157"L
HIGHEST FIXED POINT: 140"
ONE (1) 15/16.8/20/22.4/25/28 MVA ABB GENERATOR STEP-UP TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA/FA, 55/65 DEGREE C RISE, 7.24% IMPEDANCE, COPPER
WINDINGS, 3 X 1200:5 HV MRCT'S, HV TOP, LV SIDE, HV ARRESTERS (ASEA
XAP123AU-96), LV ARRESTERS (GE 9L11R6A014) AUX. TRANSFORMER (15 KVA,
240/480-120/240 IN TERMINAL CHAMBER), OUTLINE A0951X281989,
HIGH VOLTAGE: 120000 GRDY/69280 BIL: 450 KV
LOW VOLTAGE: 13800 DELTA BIL: 110 KV
TAPS: 126000-123000-120000-117000-114000
TOTAL WEIGHT: 87,600 LBS.
CORE & COILS: 31,400 LBS.
TANK & FIT.: 29,800 LBS. (INC. RADS.)
RADIATORS: 10,800 LBS. (BOLT-ON)
MAIN TANK OIL: 3,075 GALS.
RADIATOR OIL: 445 GALS.
TOTAL OIL: 26,400 LBS. (3,520 GALS.)
DIMENSIONS: 193"H X 149"W X 259"L
SHIPPING: 158"H X 91"W X 157"L
HIGHEST FIXED POINT: 140"
