$6,950 USD
Description

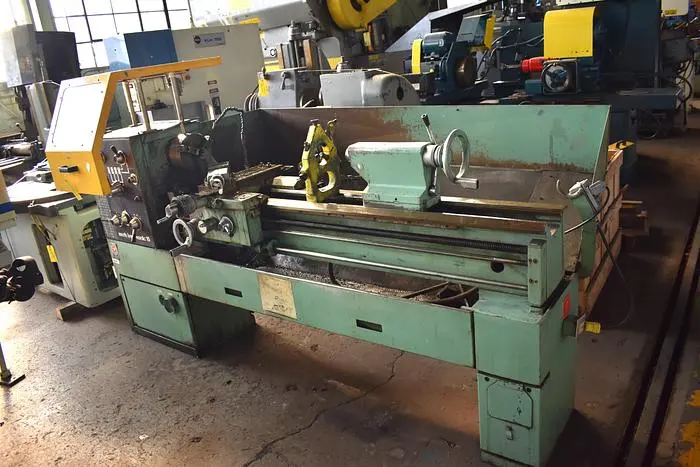

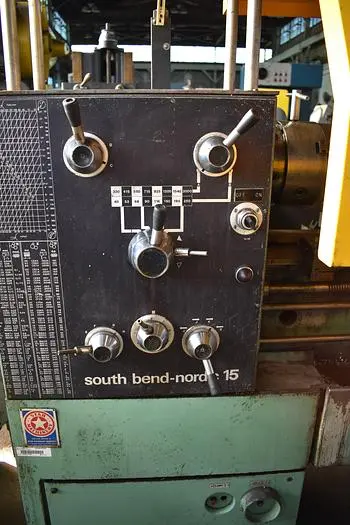

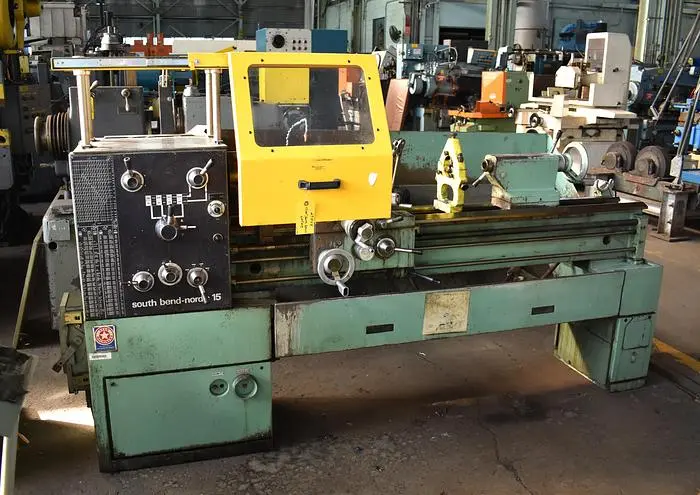

THE SOUTH BEND MODEL CL150E "NORDIC 15" IS A GEARED HEAD ENGINE LATHE POWERED BY A 7.5 HP MOTOR. IT FEATURES A 15.25" SWING OVER THE BED WAYS AND A 56" DISTANCE BETWEEN CENTERS. THE LATHE IS EQUIPPED WITH A #D1-6" CAM-LOCK SPINDLE NOSE, OFFERING A 2-1/32" HOLE THROUGH THE SPINDLE. THE HARDENED AND GROUND GEARED HEAD PROVIDES 16 SPINDLE SPEEDS, RANGING FROM 40 TO 2000 RPM. THE MACHINE HAS HARDENED AND GROUND BED WAYS AND INCLUDES 54 LONGITUDINAL CARRIAGE FEEDS FROM .0025 TO .152 IPR AND 54 CROSS-SLIDE CROSS FEEDS FROM .0012 TO .076 IPR. THREADING CAPABILITIES FEATURE 54 U.S. STANDARD CHANGES (1-5/8 TO 96 TPI) AND 41 METRIC CHANGES (.20 TO 10MM). ADDITIONAL SPECIFICATIONS INCLUDE AN 8-3/4" SWING OVER THE CROSS-SLIDE, 9-3/8" CROSS-SLIDE TRAVEL, AND 4-3/4" TOOL-SLIDE TRAVEL. THE MACHINE IS OUTFITTED WITH A TAPER ATTACHMENT, AN 8" 3-JAW CHUCK, A STEADY REST, AND A FULL-LENGTH COOLANT-CHIP PAN. ITS APPROXIMATE WEIGHT IS 2350 LBS, WITH OVERALL DIMENSIONS OF APPROXIMATELY 100" L X 40" D X 66" H.
Inquire Further with Aucto!
Buyers Who Viewed This Listing Also Viewed:
15" x 56" South Bend #CL150E, engine lathe, 8" chk, 3-jaw, 2-1/32"hole, D1-6, Steady Rest, taper
Category: Engine Lathes
Seller: Machinery Central
Location: Cincinnati, OH
Mfr: South Bend
Model: CL150E
, For sale: Used SOUTH BEND "Nordic 15" Model CL150E engine lathe with taper attachment. s 15.25" swing, 56" centers, 7.5 hp, and up to 2000 RPM. Includes 8" 3-jaw chuck, steady rest, and hardened gears. Ideal for precision machining., Spec Sheet:, 15" X 56" SOUTH-BEND "NORDIC 15" GEARED HEAD, ENGINE LATHE, Serial No. ...more
JUST ADDED!
15" x 54" LeBlond Makino #15-Regal, Engine Lathe, 2" bore, 10" 3-jaw chuck, Newall digital read out, tool post, tail stock, 460 V., 3 Ph.
Category: Engine Lathes
Seller: HGR24
Location: Euclid, OH
Mfr: Leblond Makino
Model: 15 REGAL
9.08 A, NEWALL DRO, 10” 3 JAW CHUCK, TOOL POST, TAIL STOCK, 2” BORE.
JUST ADDED!

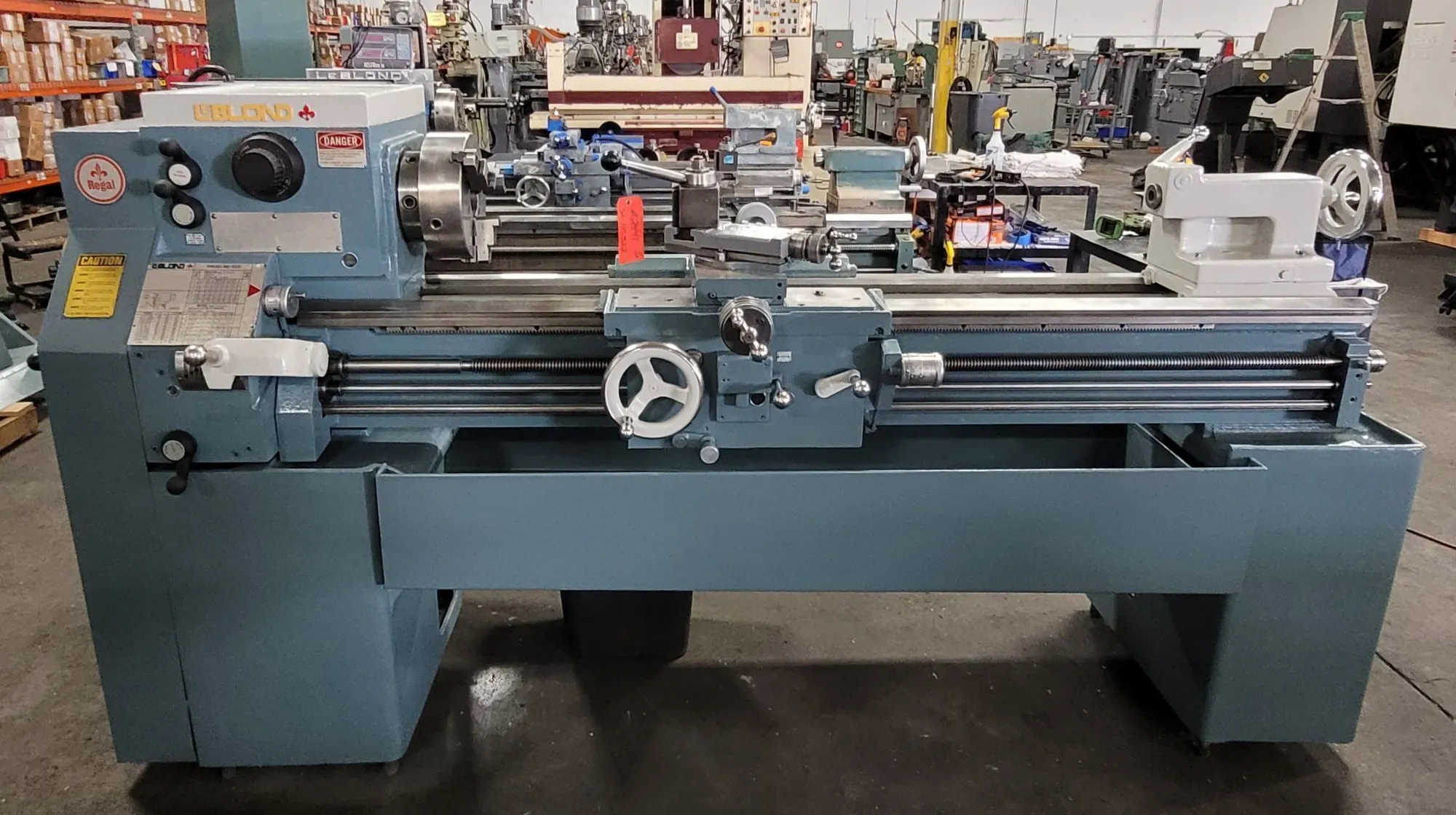

15.5" x 54" Leblond Regal #11C, servo shift toolroom lathe, 10" 3-jaw chuck, 2.375" bore, 45-1800 RPM, 7.5 HP
