For Sale by Toolquip Inc
Surplus Record Dealer Since 2025
Location: Lebanon, OH
Contact Daniela Weaver
Phone Number: 513...> Show Phone Number 513-450-6223
Let the seller know you found their listing on Surplus Record!
Description

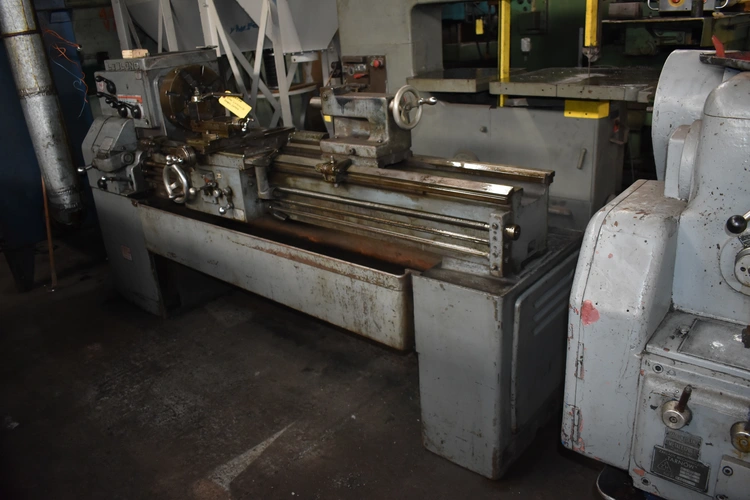

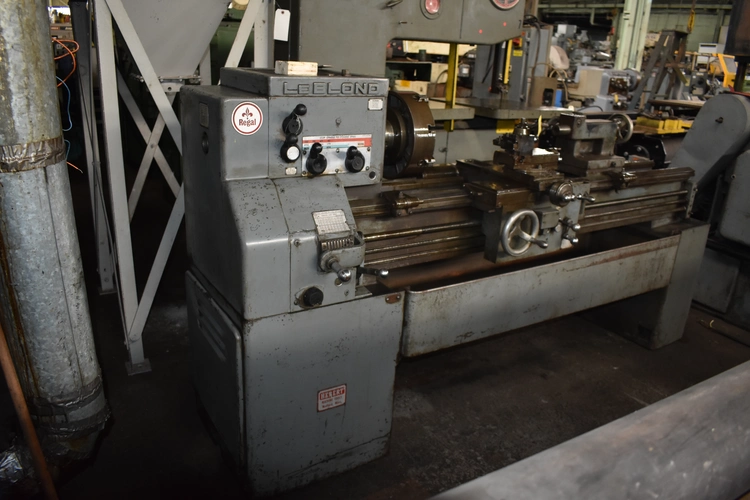

Used engine lathe: 15.5" swing, 54" centers, 1.57" spindle bore, up to 1,800 RPM. Comes with chuck, jaws, threading dial, and full-length coolant-chip pan. Equipped with hardened bedways and tool post.
Hole Thru Spindle 1.57"
Swing Over Bed Ways, Rated 15"
Swing Over Bed Ways, Actual 15.5"
Swing Over Cross-Slide 9.5"
Distance Between Centers 54"
Cross-Slide Cross-Feed Travel 8.875"
Compound-Rest Travel 3.875"
Tailstock, Spindle Diameter 1.94"
Tailstock, Spindle Travel 5"
Tailstock, Spindle Taper #3 MT
(12) Spindle Speeds, Range 45 to 1800 RPM
(48) Carriage Longitudinal Feeds .0018 to .104 IPR

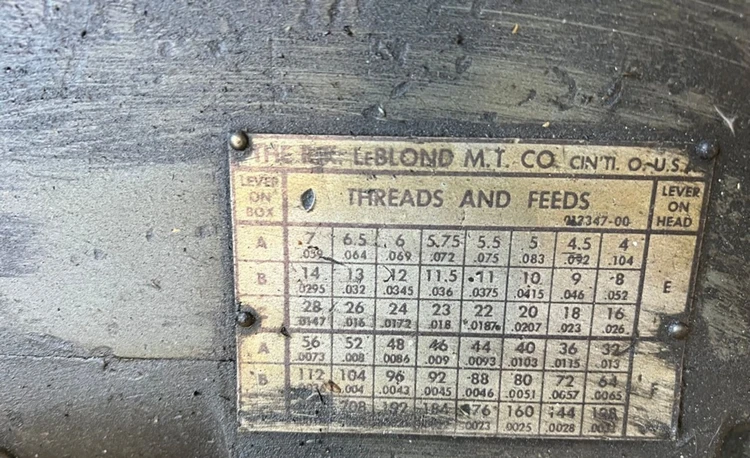

(48) Thread Changes, Range 2 to 224 TPI
Weight, Approximately 3100 LBS
Hole Thru Spindle 1.57"
Swing Over Bed Ways, Rated 15"
Swing Over Bed Ways, Actual 15.5"
Swing Over Cross-Slide 9.5"
Distance Between Centers 54"
Cross-Slide Cross-Feed Travel 8.875"
Compound-Rest Travel 3.875"
Tailstock, Spindle Diameter 1.94"
Tailstock, Spindle Travel 5"
Tailstock, Spindle Taper #3 MT
(12) Spindle Speeds, Range 45 to 1800 RPM
(48) Carriage Longitudinal Feeds .0018 to .104 IPR
(48) Thread Changes, Range 2 to 224 TPI
Weight, Approximately 3100 LBS
Get Your Price from Toolquip Inc!
