144 Ton, Trumpf #V130, hydraulic press brake,Delem DA 65 CNC, 10' overall, 106" between housing, 8.5"stroke

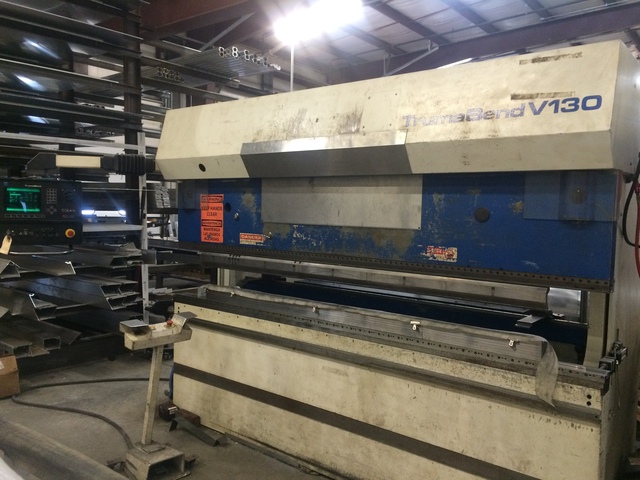

Pre Owned Trumpf Model V130 144 Ton Hydraulic Press Brake

General Specifications
Capacity 144 TONS
Overall Length of Bed & Ram 120’
Distance Between Housings 106”
Stroke 8.5”
Open Height 19”
Closed Height 10.5”
Throat Clearance 16”
Maximum Inclination of am 0.4”
Speeds
Approach 472” Per Min
Form 2-24” Per Min
Return 320” Per Min
Distance Floor to Top of Bed 34”
Width at Top of Bed 4.75”
Operating Height 41”
Oil Capacity 66 US GALLONS
Main Motor Horsepower 25 230/460/3/60
Control Features
Trumpf Delem DA 65 CNC Control (Y1,Y2,X,R Z1,Z2,I)
Off Line Capable
Programmable Forming Speeds
Programable Ram Opening
Programable Reversal
Programable Tonnage Displayed through CRT
Control Diagnostics
Back Gauge Features
X-AXIS
Max Distance 33.5”
Travel 23.6”
Max Speed 200” Per Min
R-AXIS
Travel 9.8”
Max Speed 710
Z-AXIS
Max Speed 1900” Per Min
2 Back Gauge Finger Supports
Fully Programmable Back Gauge Speed
Equipped With
Programmable Lower Tool Holder Crowning Adjustment
Precision Ram Leveling with Dual Linear Class Scale Encoders
Electric Foot Switch / Palm Button Station
Hydraulic Upper & Lowe Tool Holders
I-Axis Die Shift
Full Rear Safety Enclosure
Manuals

Approximate Overall Weight 24,800 lbs.
Approximate Overall Dimensions 144 ” L X 87”W X 94” H
