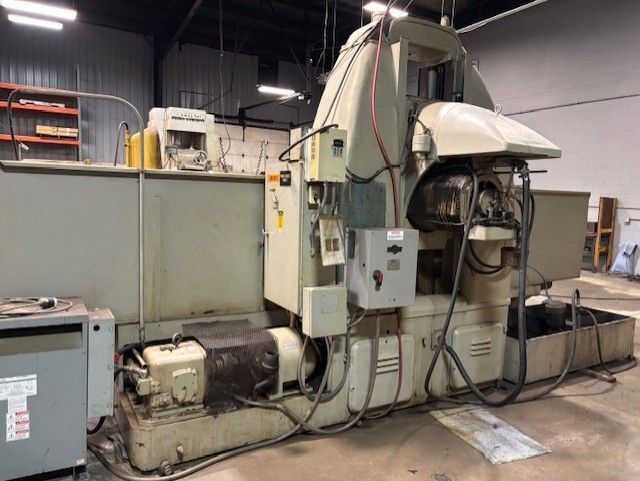

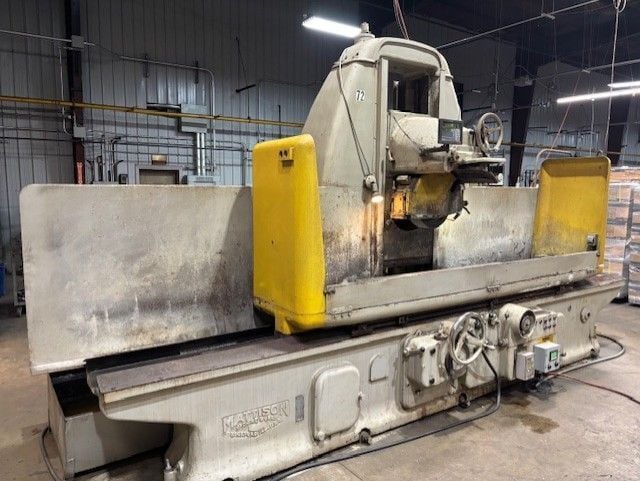

14" x 72" Mattison #14X16X72, horizontal reciprocating table, 20" x 3" wheel

MATTISON 14 X 16 X 72 Surface Grinder available in used condition. Features horizontal reciprocating table, 14"x72" capacity, 25 HP power, and a grinding wheel measuring 20" diameter by 3" width. Suitable for precision grinding tasks.
14 x 16 x 72 MATTISON SURFACE GRINDER
STANDARD SPECIFICATIONS
Capacity…………………………………………………………… 14 x 72
Vertical adjustment…………………………………………………16"
Grinding wheel diameters…………………………………………. 20" diameter x 3" face
Table speeds……………………………………………..………… 0 – 125 FPM
Micrometer adjustment of incremental down feed………………... to .0001

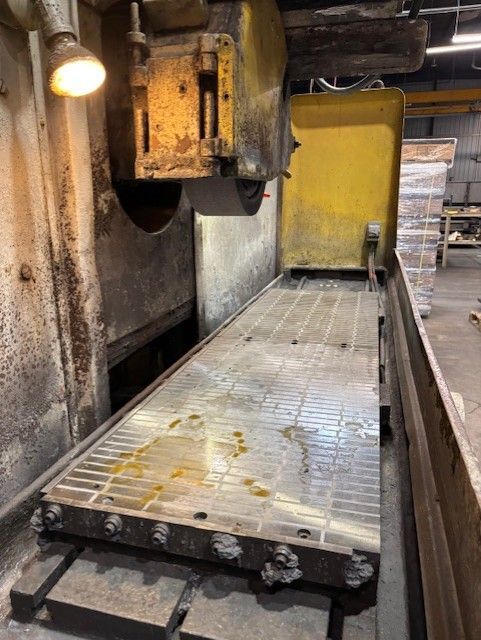

Magnetic chuck…………………………………………….……… (1) 14 x 72 chuck
MOTORS
Built in spindle motor……………………………………………… 25 HP
Hydraulic pump motor……………………………………..………. 7 1/2 HP
Hoist motor (wheel head raising & lowering)…………………..…. 1 1/2 HP
Coolant pump motor……………………………………………….. 1/2 HP
COOLANT CAPACITY
125 Gallons
DIMENSIONS
Width (with power down feed)…………………………………… 6’ 10"
Height (floor to top of column)………………………………….... 8’ 5 3/8"
Height (clearance to remove vertical slide)………………………. 10’ 6 3/8"
Length (full table travel)………………………………………….. 23’
Weight…………………………………………………………….. 22,100 lbs.
EQUIPMENT & FEATURES
Rigid double box type columns.
Hydraulic counter weighting.
Fully protected ways.
Incremental down feed.
Travatrol adjustment.
Automatic down feed.
Wheel guard mounted hydraulic truing.
Automatic cross feed.
Automatic reset.
Heavy duty wheel spindle.
Variable speed hydraulic system.
Combination "V" & flat ways.
Positive leveling.

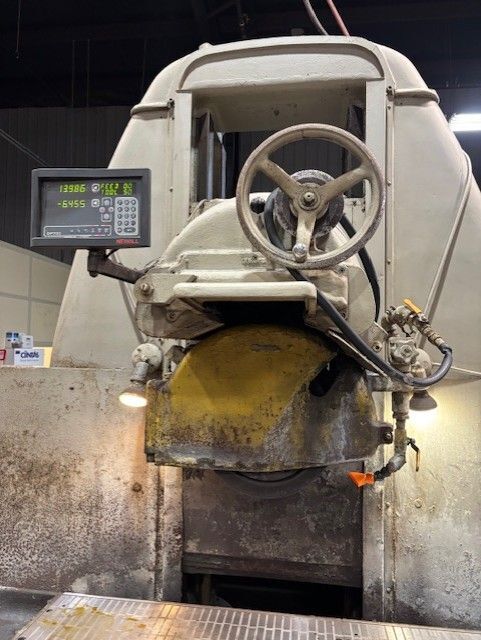

WHEEL HEAD
Has power-operated raising and lowering device, hand wheel control for final adjustment. Micrometer adjustment graduated to .0001".
WHEEL CROSS FEED
Hydraulic traverse wheel feeds variable up to width of wheel on all machines including electronic reversing control. Also can be operated by hand wheel for shoulder grinding.
Specifications are deemed accurate, however, subject to verification or prior sale.
