For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

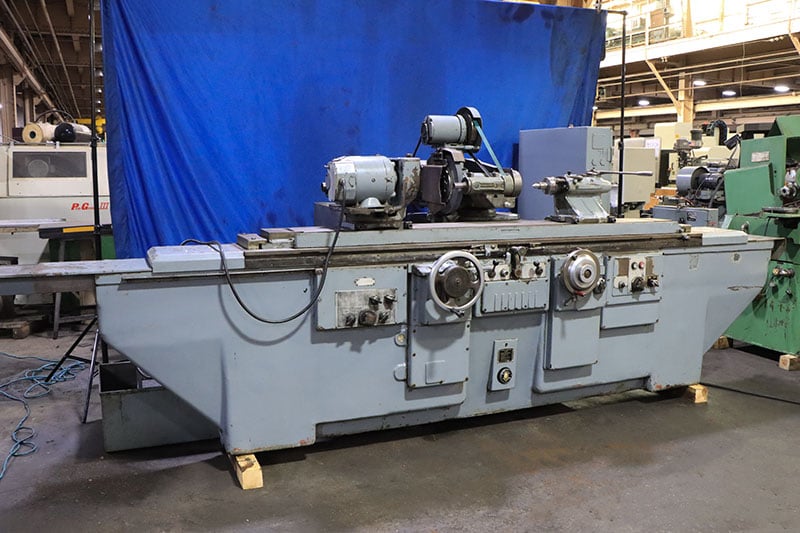

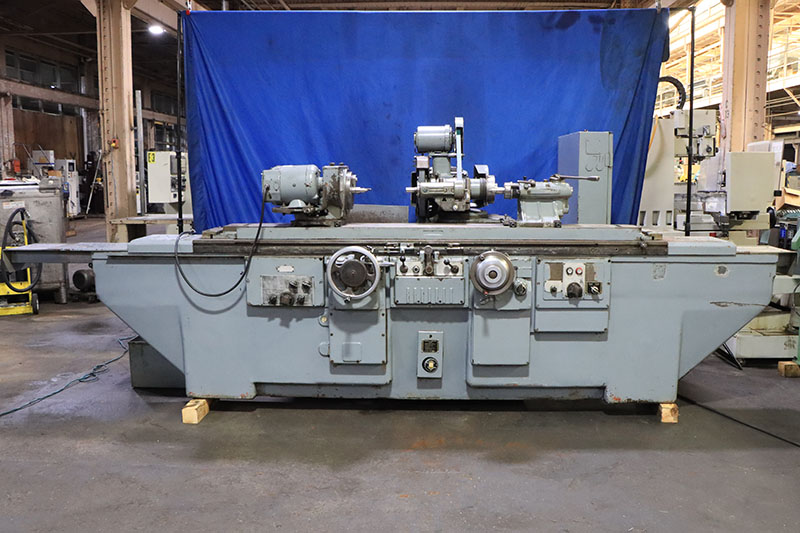

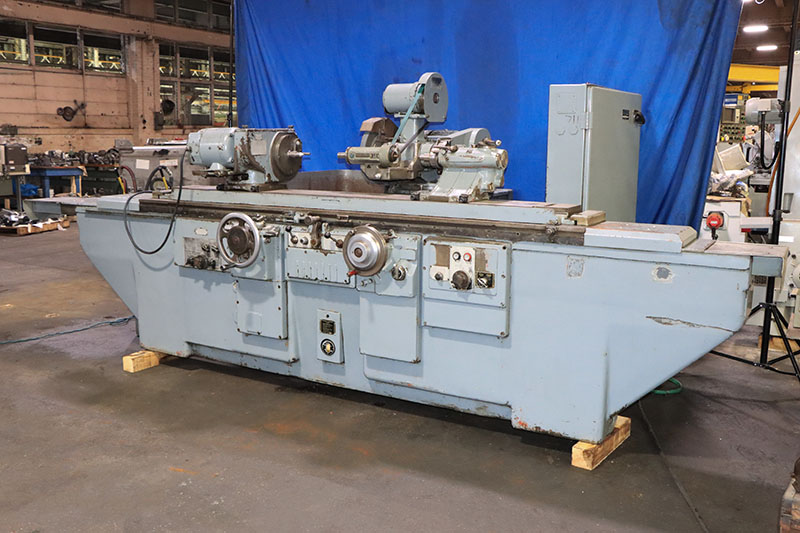

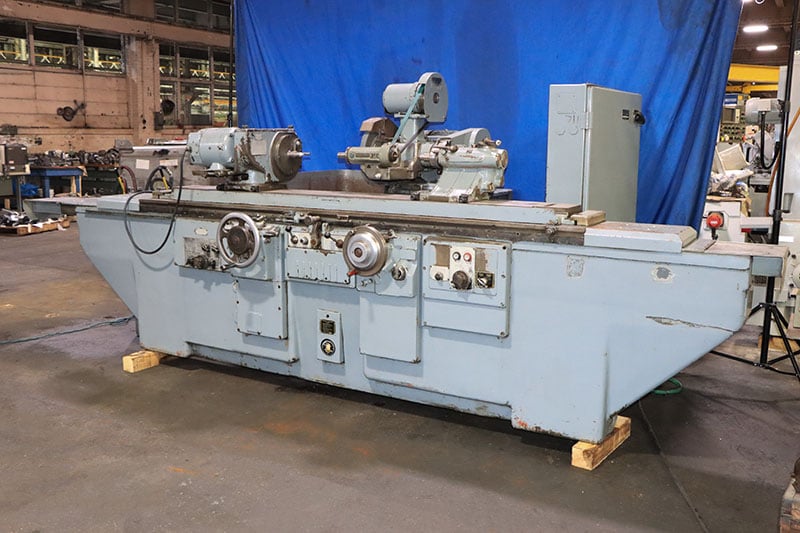

BROWN… SHARPE MODEL: #1448U…
(MADE IN USA)…"HIGH PRECISION"
UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER
** THIS MACHINE CAN BE EQUIPPED WITH
COPIES OF THE ORIGINAL FACTORY
MADE RISER BLOCKS, ALLOWING FOR
21" SWING CAPACITY, P.O.R. **
S/N: 521-1448-61… NEW: 1967
NOMINAL SWING WITHOUT THE OPTIONAL
FACTORY RISER RISER BLOCKS .......... 14"…
NOMINAL SWING WITH FACTORY RISERS .... 21"…
DISTANCE BETWEEN CENTERS, NOMINAL .... 48"…
DISTANCE BETWEEN CENTERS, MAXIMUM .... 51.75"
SWIVEL TABLE,
SCALES FOR ANGULAR SETTING .......... 9.5° BACK
2° FORWARD
TAPER PER FOOT .......... 4" BACK
3/4" FORWARD
WHEELHEAD MOTOR ...................... 5 HP…
WHEELHEAD SPINDLE SPEEDS (3) ... 1600, 2000… 2400 RPM…
WHEEL SIZE ..................... 14" x 1-1/2" x 5"…
WHEELHEAD SWIVELS,… .................. 90° EITHER WAY…
WHEEL SPINDLE SWIVELS ................ 90° EITHER WAY…
HEADSTOCK MOTOR ...................... 1/2 HP…
HEADSTOCK SWIVELS .................... 180 DEG.…
INFINITELY VARIABLE SPINDLE SPEEDS ... 25 TO 500 RPM…
SPINDLE NOSE ......................... A2-6"…
INFINITELY VARIABLE TABLE SPEED ......″" TO 150" IPM…
TRAVEL PRE-REVOLUTION OF HANDWHEEL ... 0.1" SLOW…
1" FAST
DWELL @ TABLE REVERSAL ......... 0 TO 2-1/2" SECONDS
SWIVEL TABLE - TAPER PER FOOT ........ 4" BACK
3/4" FORWARD
SCALES FOR ANGULAR SETTING .... 9- 1/2° BACK
2° FORWARD
AUTOMATIC CROSS FEED, INF. VARIABLE .. 0.0001" - .003"
POSITIVE STOP SETTING ................ 0.000020"
HAND FEED PER REV. OF HANDWHEEL ...... 0.1" SLOW
0.3" FAST
APPROXIMATE MACHINE WEIGHT ........... 9,300 LBS
APPROXIMATE DIMENSIONS ......... 132"L x 77"D x 61"H
UNIQUE TO BROWN… SHARPE GRINDERS FEATURE

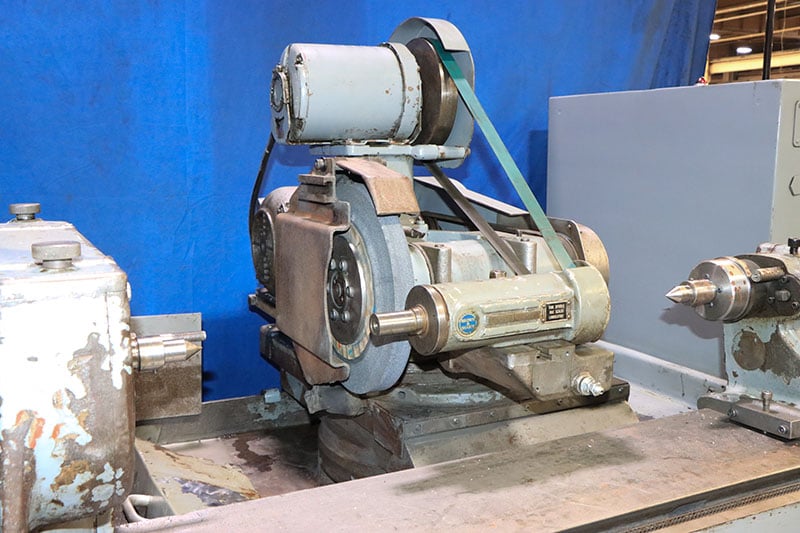

- DOUBLE SWIVEL WHEELHEAD:
"THE WHEEL SPINDLE HEAD WHICH SUPPORTS THE
EXTERNAL… INTERNAL GRINDING SPINDLES
CAN BE SWIVELED TO EITHER SIDE OF ZERO.
AN ADDITIONAL SWIVEL THROUGH 90 DEGREES
IS PROVIDED AT THE WHEEL SLIDE.…
ANY COMPOUND SETTING REQUIRED IN COMBINATION
STRAIGHT… TAPER OR DOUBLE TAPER GRINDING,
O.D. OR I.D., CAN BE MADE QUICKLY… ACCURATELY.
THE UNIVERSAL TURRET, WHICH SUPPORTS THE WHEEL
SPINDLE HEAD, PROVIDES FURTHER ADJUSTMENT FOR
CHANGE OF WHEEL LOCATION.… THE TURRET SWIVELS
ON THE WHEEL SLIDE, AND CAN BE LOCKED IN ANY
OF FOUR POSITIONS.… EACH CHANGE MOVES THE WHEEL
3".… RIGHT HAND WHEEL MOUNTING PROVIDES FOUR
ADDITIONAL WHEEL POSITIONS."…
MACHINE FEATURES:
- HYDRAULIC OPERATION WITH POWER TABLE TRAVERSE…
- AUTOMATIC INFEED .... POWER CROSSFEED
ADJUSTABLE TO 0.000050"
- POSITIVE CROSSFEED STOP, ADJUSTABLE
WITHIN 0.000020"
- L.H. OR R.H. GRINDING WHEEL MOUNTING
- DUAL DEAD/LIVE HEADSTOCK SPINDLE…
- PULL-OUT HYDRAULIC SYSTEM…
-″/60/230-460 VOLT MOTORS
EQUIPPED WITH:

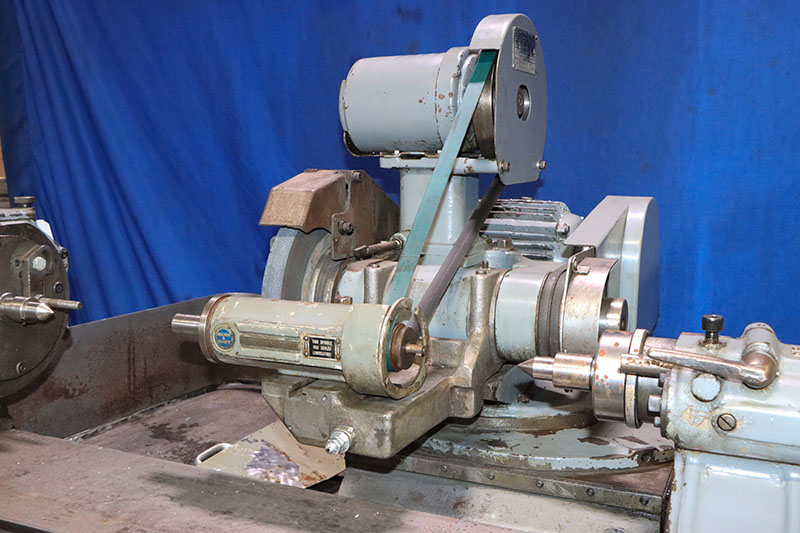

B… S SWING DOWN I.D. GRINDING ATTACHMENT…
EXTERNAL COOLANT TANK… PUMP
3-POINT STEADY REST
2-POINT STEADY REST
CENTER IN WORKHEAD
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS
SPECIAL NOTE:
** THIS MACHINE CAN BE EQUIPPED WITH COPIES
OF THE ORIGINAL FACTORY MADE RISER BLOCKS,
ALLOWING FOR 21" SWING CAPACITY.… P.O.R. **
Link to video… https://youtube.com/shorts/sYkJ367wU98?feature=share
* INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE *
** EXCELLENT CONDITION… APPEARANCE… - FROM A QUALITY SHOP!!… **
