Description

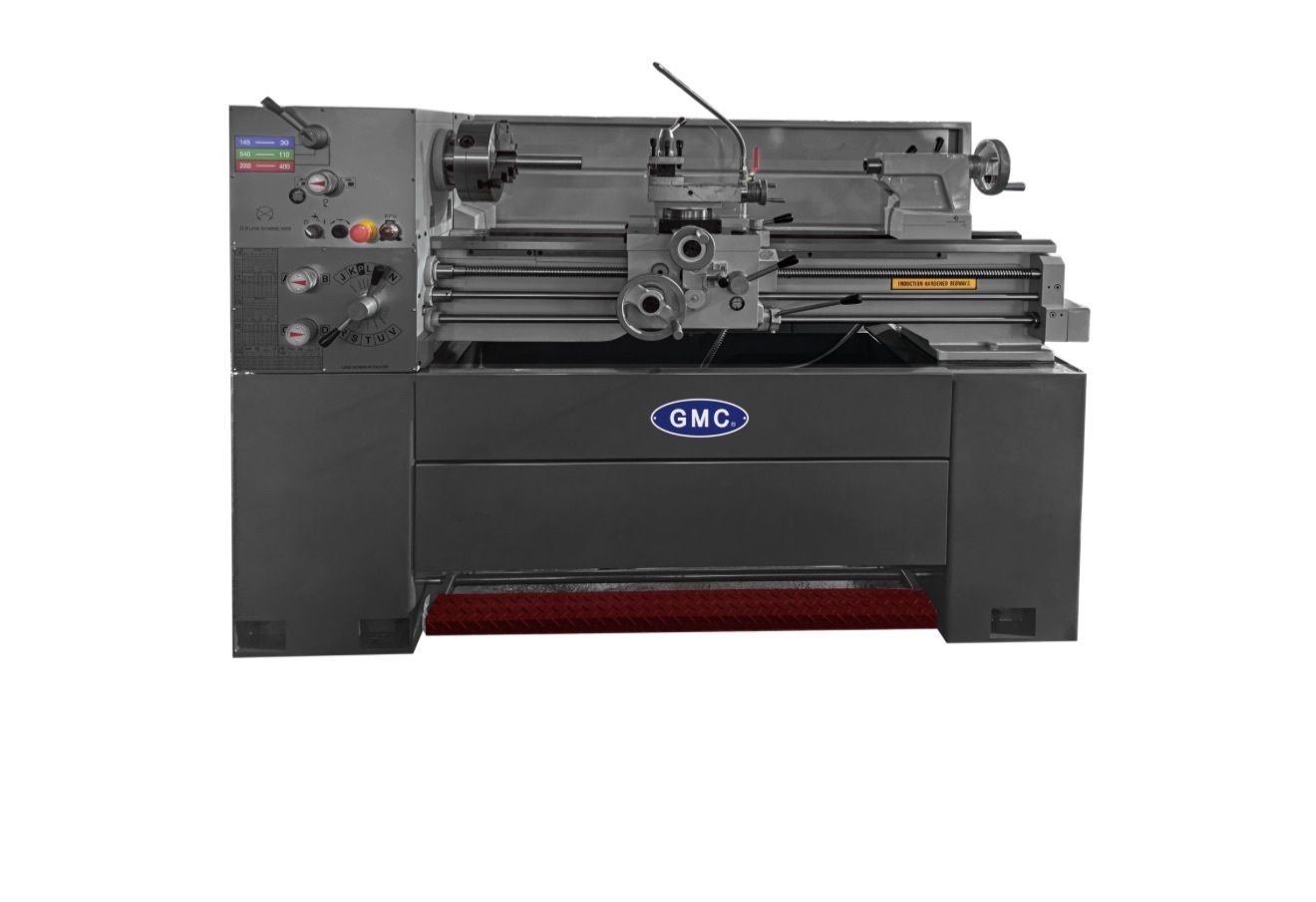

Machine Standard Features and Equipment: Made in Taiwan ISO 9001 certified Machine bed is made of high tensile cast iron FC25 With free CARMAR DRO installed Full Geared-head precision Engine Lathe with foot brake Quick-change gearbox with fast and easy threading set up main motor 3HP, 220V, works on both power 3 phase/1 phase Spindle bore 1 1/2 Heavy Duty spindle D1-4 Heavy Duty guideway width 7-1/2 Variable spindle speeds from 45-1,800 rpm 32 kinds of inch threads, and 32 kinds of metric threads Spindle is balanced, hardened and precision ground All gears and shafts are hardened and precision ground Guideways induction hardened and precision ground Automatic lubrication system in headstock and feed box One year warranty for parts Specifications GML-1440T Max. swing over bed 14 Max. length of workpiece / Max. length of cutting 40 / 34 Max. swing over cross slide 8-5/8 Max. swing over gap 20-1/4 Width of Bed 7-1/2 Spindle bore 1 , D1-4 Taper of spindle center MT# 5 (MT5/MT3 with reducing sleeve) Spindle speeds, 45-1,800 rpm, 12 steps Longitudinal feeds .0016-.00368IPR, 40 kinds Cross feeds .0008-.00122IPR, 40 kinds Inch threads 4-56 TPI, 32 kinds Metric threads 0.4-7.0 mm , 32 kinds Max. travel of top slide 3-1/2 Max. travel of cross slide 6-5/16 Longitudinal leadscrew Dia 1 / 4TPI Diameter of tailstock quill 1-9/16 Max. travel of tailstock quill 3-1/2 Taper of tailstock quill center M.T. # 3 Oil for headstock/ Gear box/Apron #30 weight machine oil, TEXACO regal R&O/100, 3 Gal. Main motor with 5HP inverter drive Amperage draw 3HP, 220V, 1phase 10 Amp Coolant pump 1/16HP, 220V, 1phase, water base coolant Machine weight, approx. 1,930 LBS Overall dimensions, 73 x 35 x 59 Machine Shipping dimensions LWH 75 x 30 x75 x 30 x 75 x 30 x 55 77 x 30 x 61
Floor model. Model Number. COMPLETE WITH Worklight coolant system and splash guard. 3- and 4-Jaw chucks. Swing Over Gap. Swing Over Carriage. Swing Over Bed..
THE SHARP 1440 MANUAL PRECISION LATHE S A 14 INCH SWING OVER BED, 8.62 INCH SWING OVER CROSS SLIDE, AND 40 INCH DISTANCE BETWEEN CENTERS. THE UNIT IS A 3 HP MOTOR AND A D1-4 CAMLOCK SPINDLE WITH A 1.5 INCH BORE. THE HEADSTOCK PROVIDES MULTIPLE SPINDLE SPEEDS UP TO 1,800 RPM. THE MACHINE INCLUDES A REMOVABLE GAP BED ...more
Inventory No. 0226-119-0001 Manufacturer Clausing Model No. 3/57812 Name Lathe Arrival Date 03-20-2026 Dimensions L x W x H (inches) 76 x 39 x 61 Capacity 14" X 40" Electrical 3/60/220 Weight (lb.) 1535 Category Machine Tools Condition Used Available Quantity 1 Item Tool Post, Tail Stock, 2" Bore, 3 Hp, 1700 Rpm.
