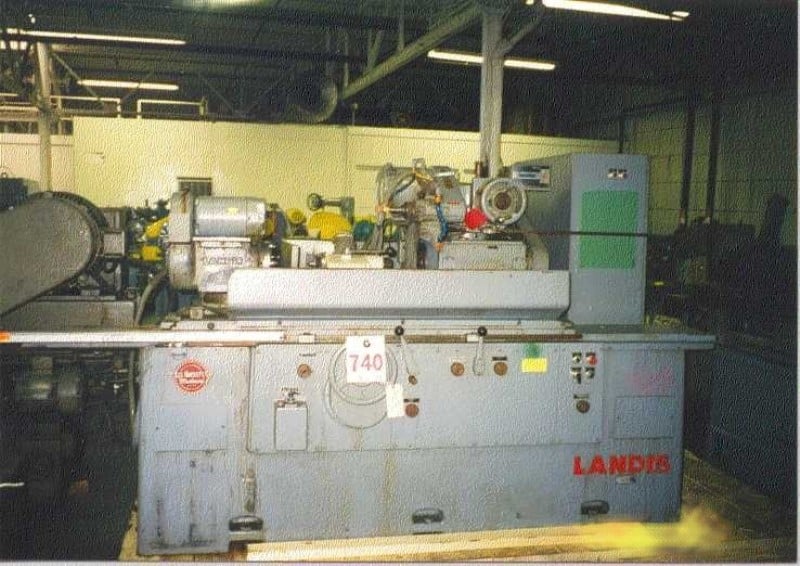

14" x 36" Landis #2R, universal cylindrical grinder, 4" work rest capacity, 14" x 2" x 5" grinding wheel, 2-240 IPM, 3 HP, 2005-2533 RPM, 1972

14" x 36" Landis, Model 2R Universal Cylindrical, Hydraulic Table Travel, Micro Feed, Pick Feed, Tarry, Tail Stock Dresser, As Is
14 x 36 2R LANDIS UNIVERSAL CYLINDRICAL GRINDER
S/N 856-5 Year:1972
STANDARD CATALOG SPECIFICATIONS
Nominal work swings............................. 14
Nominal distances between work centers.......... 36
PRIVATE Maximum work swing diameter standard machine will grind with full size standard wheel....................... 14 31/32tc' \l 1 Maximum work swing diameterstandard machine will grind with full size standard wheel........... . . . . .. . . 14 31/32\
PRIVATE Minimum diameter wheel to grind zero diameter work on centers........................................ 9 Degreestc' \l 1 Minimum diameter wheel to grindzero diameter work on centers.................................... . . . . 9 Degrees
Coolant tank capacity, gallons.................. 28
Hydraulic tank capacity, gallons................ 25 1/2
Height from floor to work centerline............ 42
WORK CARRIAGE
Traverse speed, inches per minute............... 2 to 240
Traverse per turn of hand wheel ‑slow.......... 0.100
‑ fast.......... 1.000
Center rest capacity............................ 1/4 ‑ 2
Work rest capacity.............................. 1/4 ‑ 4
WHEEL HEAD WHEEL FEED
Grinding wheel size.............................14 x 2 x 5
Grinding wheel head swivel range‑ upper........ 180 Deg.
-lower........ 60 Deg. CW
30 Deg. CCW
Grinding wheel spindle speeds, RPM.............. 2005‑2533
PRIVATE Automatic infeed at table reversal on dia...... 0.0002to 0.004
PRIVATE Maximum distance wheel centerline to work centerline...................................... 10 ‑ 15 1/2tc' \l 1 Maximum distance wheel centerlineto work centerline....................................... 10 ‑ 151/2\
Minimum distance wheel centerline to work
centerline.......................................1 1/2
Work diameter reduction per revolution of
handwheel....................................... 0.100
PRIVATE Work diameter reduction per revolution of fine feed knob (Hydraulic infeed machines)..................... 0.001tc' \l 1 Work diameter reduction perrevolution of fine feed knob (Hydraulic infeed machines)....... . . . . . ..' 0.001\
PRIVATE Maximum hydraulic feed on diameter for hydraulic infeed machines........................................ 0.090tc' \l 1 Maximum hydraulic feed on diameterfor hydraulic infeed machines........................ . . . . . . . .' 0.090\
Internal spindle speed, RPM......................To be determined
HEAD STOCK FOOT STOCK
Head stock work center........................... #10 Jarno
Foot stock work center........................... # 6 Jarno
Foot stock center movement by.................... Lever only
Work speeds RPM ‑ Low Range......................30 to 150
‑ High Range.....................120 to 600
Diameter hole through head stock spindle......... 1
Head stock swivel range.......................... 120 Degrees
Head stock spindle nose..........................5A‑2
LENGTHS BETWEEN CENTERS ‑ 36
Swivel table graduated, inchesper foot.......... 4 1/2
Swivel table graduated, degreesincluded angle... 20 Deg.
ELECTRIC MOTORS
Wheel drive motor................................ 3 HP
Work drive motor.................................1/3 HP
Hydraulic oil pump generator drive motor....... 1/4 HP
Internal fixture motor........................... 1 HP
Wheel spindle lubrication pump motor............. 1/4 HP
EQUIPMENT FEATURES
Hydraulic table travel.
Micro feed.
Pick feed.
Tarry.
Tail stock dresser.
Specifications are deemed accurate, however, subject to verification or prior sale.
