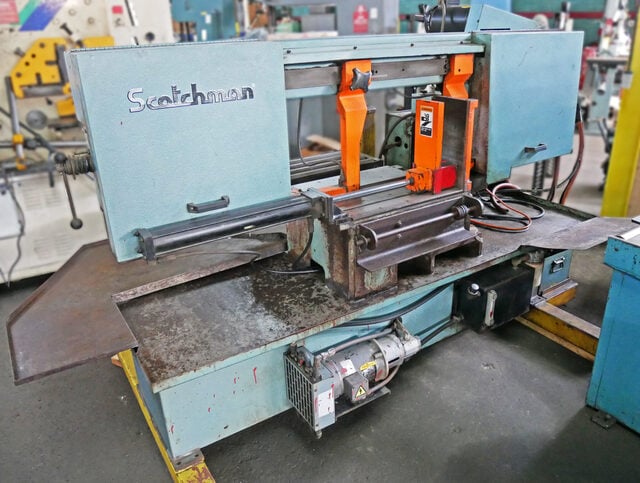

14" x 19" Scotchman #SH1419, Swivel Head Horizontal Band Saw, 20" diameter Drive Wheel, 197" x 1.25" x 0.042" Blade, 70-400 SFPM, 3 HP

Description

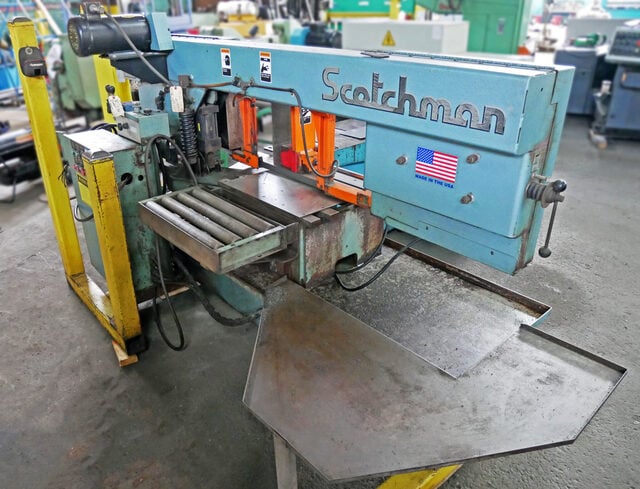

Scotchman 14″ x 19″ Swivel Head Horizontal Band Saw, SH1419

Inventory # 9765

Model: SH1419

S/N: 556-0307

Please Note: This Machine is Manufactured by DoAll for Scotchman

Specifications:

Capacity:

@ 90°:

Rectangular: 14″ x 19″

Round: 15″

@ 45°:

Rectangular: 14″ x 14″

Round: 15″

@ 30°:

Rectangular: 14″ x 10 1/2″

Round: 10 1/2″

Drive Wheel: 20″ Diameter, Cast Iron

Blade Speed: 70 to 400 SFPM

Blade Size: 197″ x 1 1/4″ x .042″

Blade Tension: Spring-Loaded by Handwheel

Coolant System: 5 Gallon Reservoir

Hydraulic System: 0.5 HP

Motor: 3 HP / 3ph

Standard Features:

Head Swings 60° – No Material Movement

Hydraulic Feed Control with Adjustable Rate and Feed Pressure

Quick Head Approach with Hold for Ease of Line-up

Hydraulic Full-Stroke, Full Capacity Vising

Hydraulic Head Raise

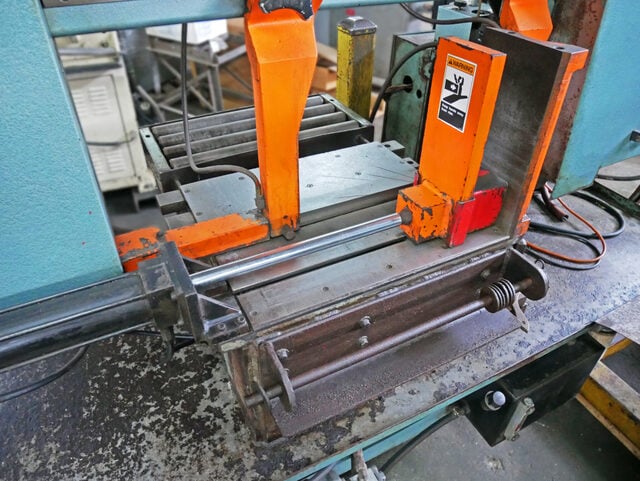

Hydraulic Vise Clamp

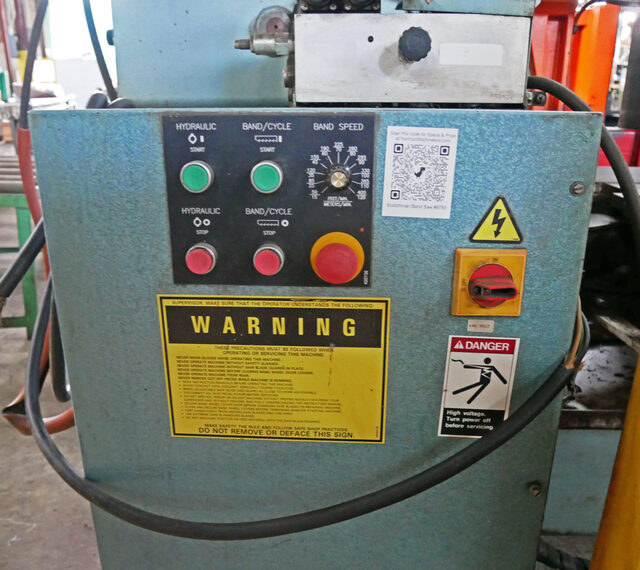

Infinitely Adjustable Blade Speed with AC Inverter

Saw Guides, Spring Loaded, Solid Carbide Inserts for Clean, Accurate Cuts

Replaceable Steel Wear Plates on Bed

Recirculating Flood Coolant System with Splash Guard

Wash Down Hose with Hanger for Easy Cleanup

Powered Blade Brush for Straight Cuts and Longer Blade Life

Saw Blade Guard for Operator Safety

Equipment Included:

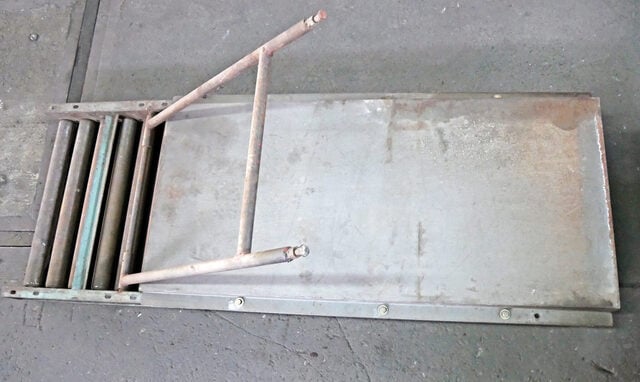

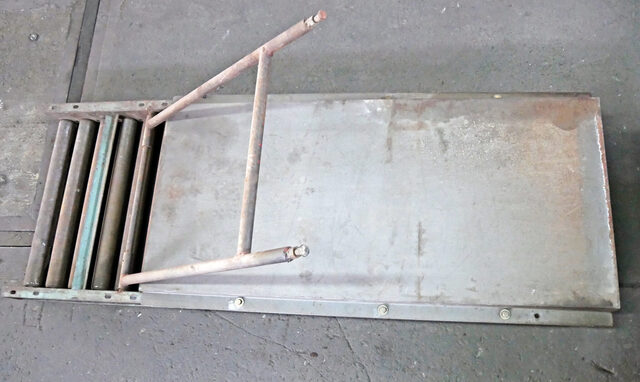

Roller Conveyor: 65″ L x 24 1/2″ W (21 1/2″ Wide Rollers)

Mechanical Specifications:

Dimensions: 92″ x 42″ x 68″ H

Weight: approx. 1,700 lbs.

Please Note: This Machine is Manufactured by DoAll for Scotchman

FOB Our Baltimore, MD Warehouse
