For Sale by Bass Machinery LLC
Surplus Record Dealer Since 2009
Sales
419-24...> Show Seller's Phone Number 419-243-2277 Let the seller know you found their listing on Surplus Record!
Description

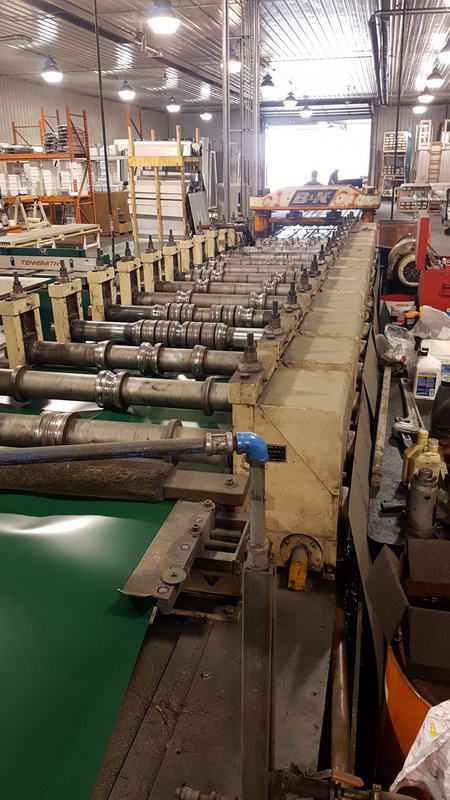

14-Stand B & K Complete AG Panel Line
SPECIFICATIONS:
Finished Width: 38" to 39" (Depending On Width Of Blank
Used: 40.5" to 41.375")
Total Coverage For Use Of Each Panel: 36"
Runs: 80 to 95 LR/Minute
Electrics: 440/60/3
CONSISTING OF:

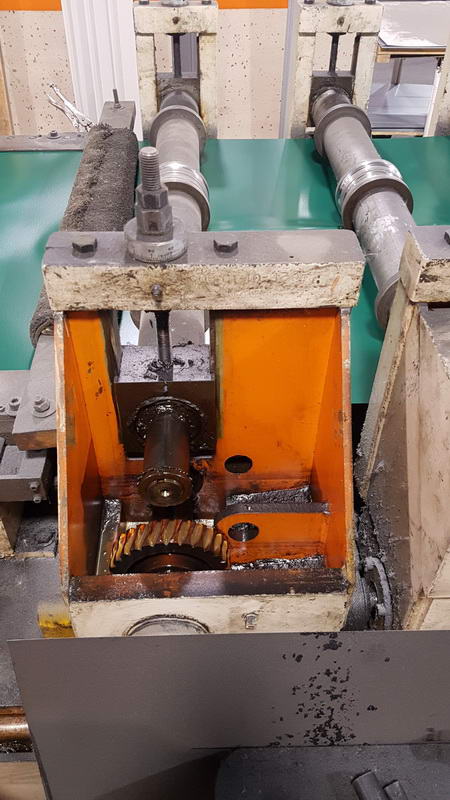

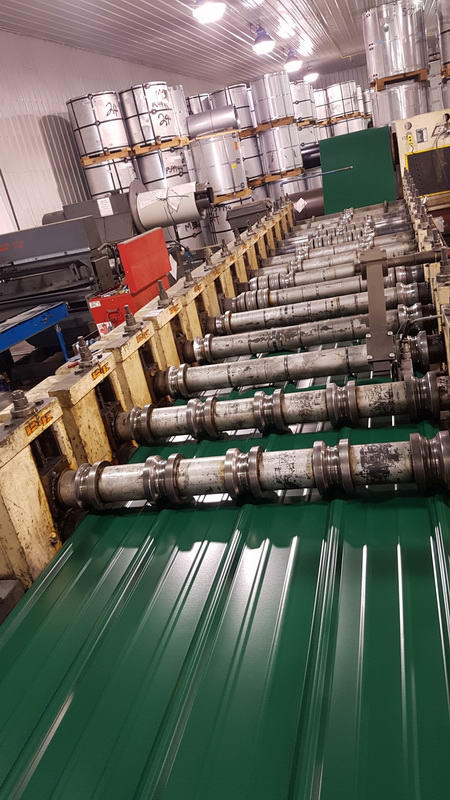

14-Stand B & K Model 2B-11 Roll Former:
Equal Geared
Spindle Diameter: 3-1/2"
Roll Space: 42"
Vertical: 4-1/2" to 9-3/4"
Horizontal: 16"
Center Bottom Shaft To Bed: 6-5/8"
Width of Bed, Face of Gear Boxes to Outer Edge: 52"
Motor Data: 30 HP, 230/480/60/3

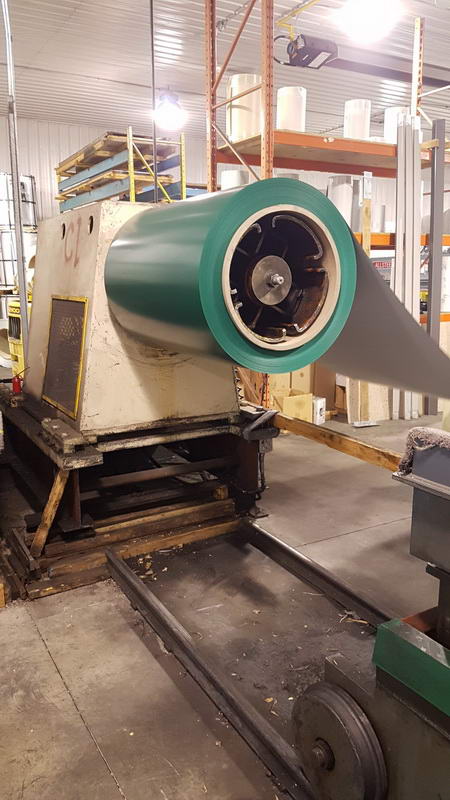

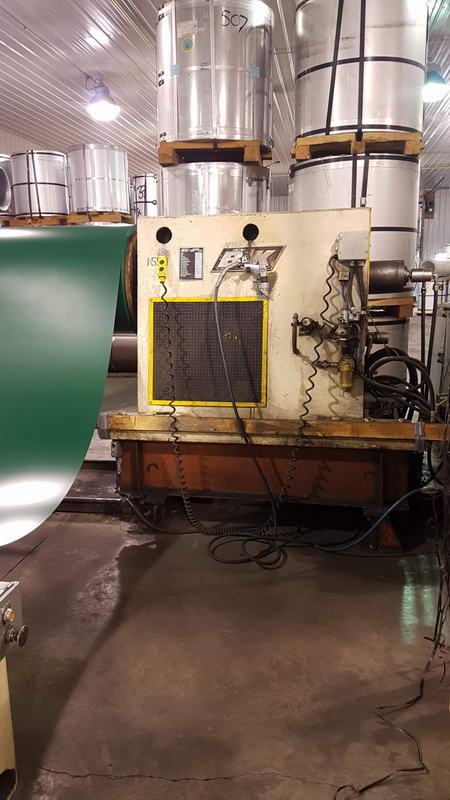

20,000 Lb. Model BKU-M1-01 Uncoiler:
Age: 1975
Coil I.D.: 18-1/2" to 21-1/2"
Width: 40"
Hydraulic Expansion
Hydraulic Sliding Base
Air Brake
Hydraulic Rotation
Motor Data: 7.5 HP, 480 Volt

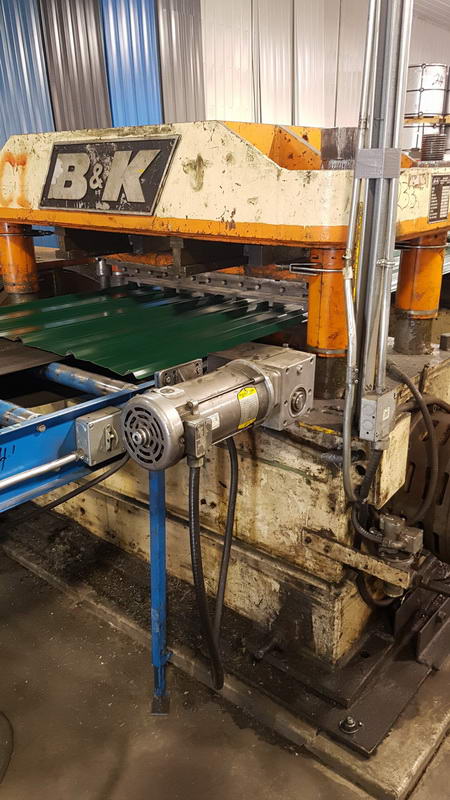

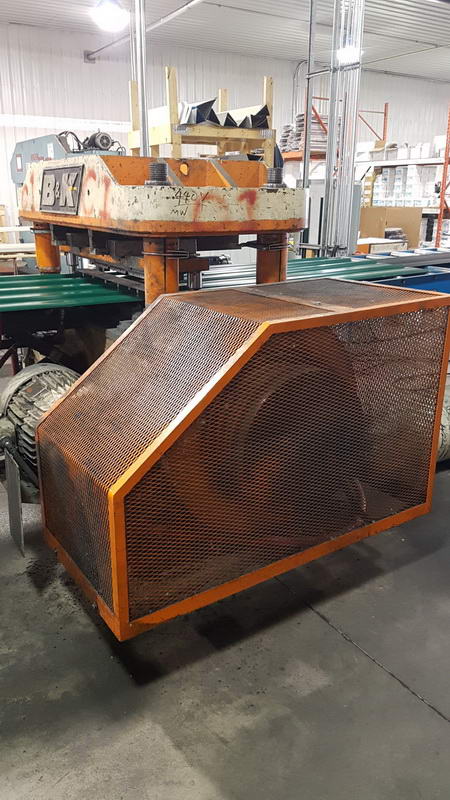

60 Ton B & K Model 4P16-01 Flying Shear Cut-Off Press:
4-Post Under Driven
Stroke: 3"
Shut Height: 11-1/2" to 14-1/2"
Cuts Per Minute: 30
Between Posts: 18" x 52"
Air Clutch & Brake
Motor Data: 15 HP, 480 Volt, 1200 RPM
EQUIPPED WITH:

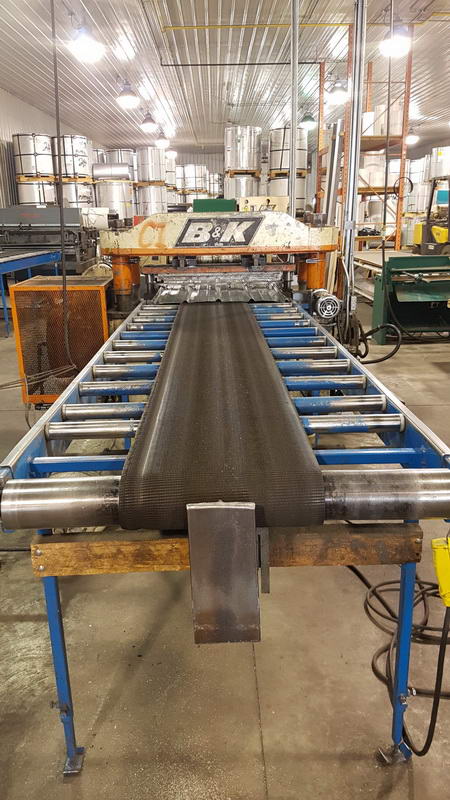

Power Belt Conveyor
AC Vari-Speed Drive With DC Clutch

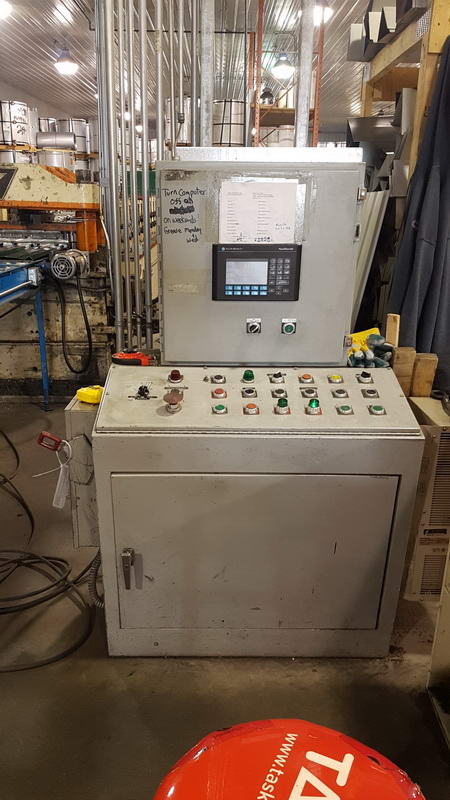

Control Panel & Batch Input
OVERALL DIMENSIONS: 36' Long (Uncoiler to Shear Cut Of Press)
WEIGHT: 45,000 Lbs.
CONDITION: Currently Being Used In Production And Can Be Seen
Running, It Will Not Be Available To Be Picked Up
Until Sometime Between July And September 2018
As It Is Required Until New Equipment Arrives
SPECIFICATIONS:
Finished Width: 38" to 39" (Depending On Width Of Blank
Used: 40.5" to 41.375")
Total Coverage For Use Of Each Panel: 36"
Runs: 80 to 95 LR/Minute
Electrics: 440/60/3
CONSISTING OF:
14-Stand B & K Model 2B-11 Roll Former:
Equal Geared
Spindle Diameter: 3-1/2"
Roll Space: 42"
Vertical: 4-1/2" to 9-3/4"
Horizontal: 16"
Center Bottom Shaft To Bed: 6-5/8"
Width of Bed, Face of Gear Boxes to Outer Edge: 52"
Motor Data: 30 HP, 230/480/60/3
20,000 Lb. Model BKU-M1-01 Uncoiler:
Age: 1975
Coil I.D.: 18-1/2" to 21-1/2"
Width: 40"
Hydraulic Expansion
Hydraulic Sliding Base
Air Brake
Hydraulic Rotation
Motor Data: 7.5 HP, 480 Volt
60 Ton B & K Model 4P16-01 Flying Shear Cut-Off Press:
4-Post Under Driven
Stroke: 3"
Shut Height: 11-1/2" to 14-1/2"
Cuts Per Minute: 30
Between Posts: 18" x 52"
Air Clutch & Brake
Motor Data: 15 HP, 480 Volt, 1200 RPM
EQUIPPED WITH:
Power Belt Conveyor
AC Vari-Speed Drive With DC Clutch
Control Panel & Batch Input
OVERALL DIMENSIONS: 36' Long (Uncoiler to Shear Cut Of Press)
WEIGHT: 45,000 Lbs.
CONDITION: Currently Being Used In Production And Can Be Seen
Running, It Will Not Be Available To Be Picked Up
Until Sometime Between July And September 2018
As It Is Required Until New Equipment Arrives
Get Your Price from Bass Machinery LLC!
