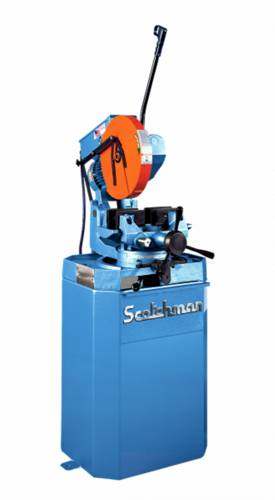

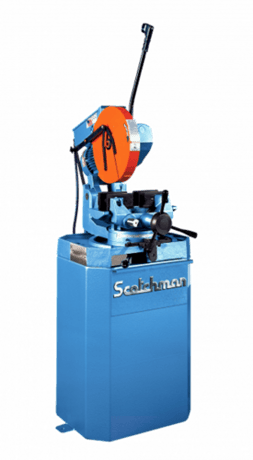

14" Scotchman #CPO-350, Manual Cold Saw, 1-9/16" Arbor Bore, 22/44 RPM (3 HP) Low Turn, 44/88 RPM (2.5 HP) High Turn, 208/230/460 V, new

Description

Scotchman 14″ Manual Cold Saw, CPO 350

Inventory # 5011

Model: CPO 350

Made in USA

Description:

Scotchman Industries powerful American-made CPO 350 circular cold saw is the perfect machine for any fabrication shop. This dependable saw features a double clamping and self-centering vise for maximum hold and provides burr-free, high quality, volume parts. It has 180° mitering capability and a miter-locking device which automatically stops at 45° left, 90° straight, and 45° right, giving it the ability to slot and notch

Additional machine features include a chip drawer, a double reduction gearbox, a two-speed motor which utilizes up to a 350mm diameter blade. This machine is built with dependability and versatility in mind, with the quality you expect from a Scotchman. Always backed by their outstanding 3 year warranty

Specifications:

Tubing @ 90°:

Round: 4 1/2″

Square: 4 1/4″ x 4 1/4″

Rectangle: 5 1/2″ x 4″

Tubing @ 45°:

Round: 4″

Square: 4″ x 4″

Rectangle: 4″ x 4″

Solid @ 90°:

Round: 2″

Square: 2″ x 2″

Solid @ 45°:

Round: 1 3/4″

Square: 1 3/4″ x 1 3/4″

Maximum diameter blade: 14″

Arbor bore: 1 9/16″

Cutting Speeds:

Low Turn (Designed for Solid Mild Steel, Solid Stainless Steel and Thick Wall Pipe): 22 / 44 RPM (3 HP)

High Turn (Designed for Thin Wall Tube .060 Wall Thickness or Thinner and Non-Ferrous Material): 44 / 88 RPM (2.5 HP)

Single Speed (Designed for 220v/1ph applications): 44 RPM (3 HP)

Variable Speed Option: 11 – 177 RPM (Price on Request)

Motor: 208v, 230v, 460v / 3ph OR 220v / 1ph (Single Speed Only)

Standard Features:

Manual double self-centering vise assures burr-free cuts

Operator controlled trigger switch

Miter capabilities 45° left and 45° right

Miter locking device: quick, accurate setting-stops at 45° left, straight 90°, and 45° right

Capable of slotting

Double reduction, hardened and ground worm and wheel gear box

Worm wheel of top quality bronze

Chip drawer

7 gallon coolant tank with pump

One 12 1/2″ diameter HSS blade

One blade wrench

One gallon concentrated coolant

Three year parts warranty

Mechanical Specifications:

Dimensions: 21 7/8″ x 43 1/2″ x 56 1/4″ H (Not Including Handle)

Shipping Weight: approx. 660 lbs.

FOB Factory – Contact us for pricing and availability
